Vehicle Info NeededSPEEDMASTERPART NUMBER: 746-PCE274.1028

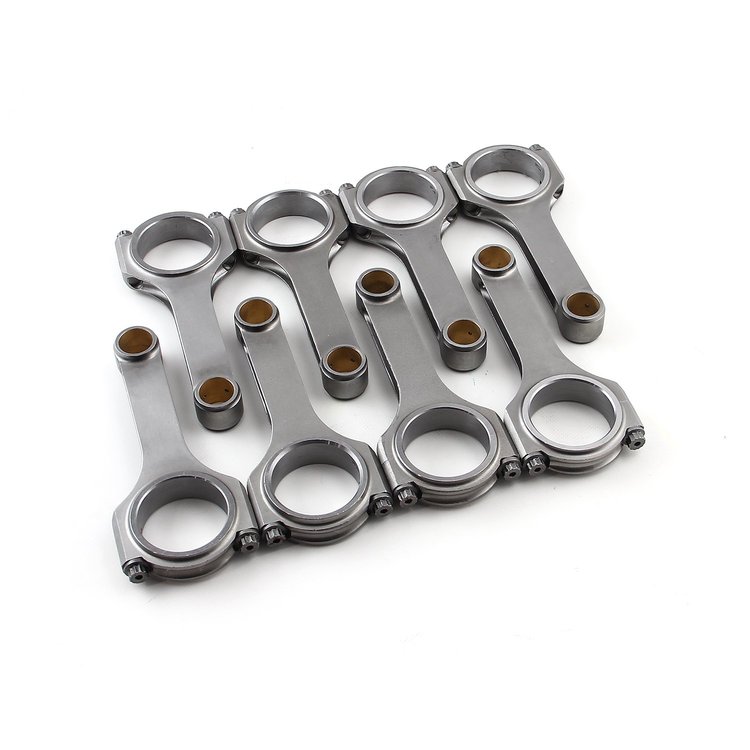

H-Beam Street/Strip Connecting Rods Small Block Chevy
$41690
Ships on Sep 03, 2026
Lowest Price GuaranteeSmall Block Chevy
- H-Beam Street/Strip Connecting Rods
- Small Block Chevy
- Length: 6''
- Crank Diameter: 2.1''
- Pin Diameter: 0.927''
- 8/pkg
Procomp Electronics H-beam connecting rods are one of the strongest connecting rods available. Procomp Electronics H-beam connecting rods are perfect for supercharged and nitrous applications. These rods incorporate a special doweled cap for specific cap-to-rod alignment and are profiled with extra clearance for stroker applications.
Procomp Electronics H Beam Street / Strip connecting rods are manufactured from aircraft quality 4340 chromoly steel. The rods are x-rayed and ultrasonically tested with all surfaces shot peened and stress relieved.
Part TypeConnecting Rod Set
BrandSPEEDMASTER
Package Height4.9
Package Width10.2
Package Length11.0
Weight13.14 PG
Part CategoryPerformance Parts
Rod Journal Diameter2.1 in (53.3 mm)
Connecting Rod MaterialForged 4340 steel
Advertised Horsepower Rating (Hp)750 hp
Advertised Rpm Rating7,500 rpm
Connecting Rod Bolt Head Style12-point
Connecting Rod Bolt Material8740 chromoly steel
Wrist Pin StyleFloating
Connecting Rod Bolt Diameter0.438 in (11.125 mm)
Big End Bore Diameter2.225 in (56.515 mm)
QuantitySold as a set of 8
Connecting Rod Beam StyleH-beam
RemanufacturedNo
Big End Width0.945 in (24.003 mm)
Connecting Rod Length Center To Center6 in (152.4 mm)
Connecting Rod FinishShot-peened
Approximate Connecting Rod Weight (G)N/A
MagnafluxedYes
Weight Matched SetYes
Fastener Yield Strength (Psi)200,000
Cap Retention StyleCap screw
Pin End Bore Diameter0.927 in (23.5 mm)
Part FitmentSemi Universal
Clearanced For StrokerNo
Vendor Part NumberPCE274.1028
Package Qty1
Package TypeEA
