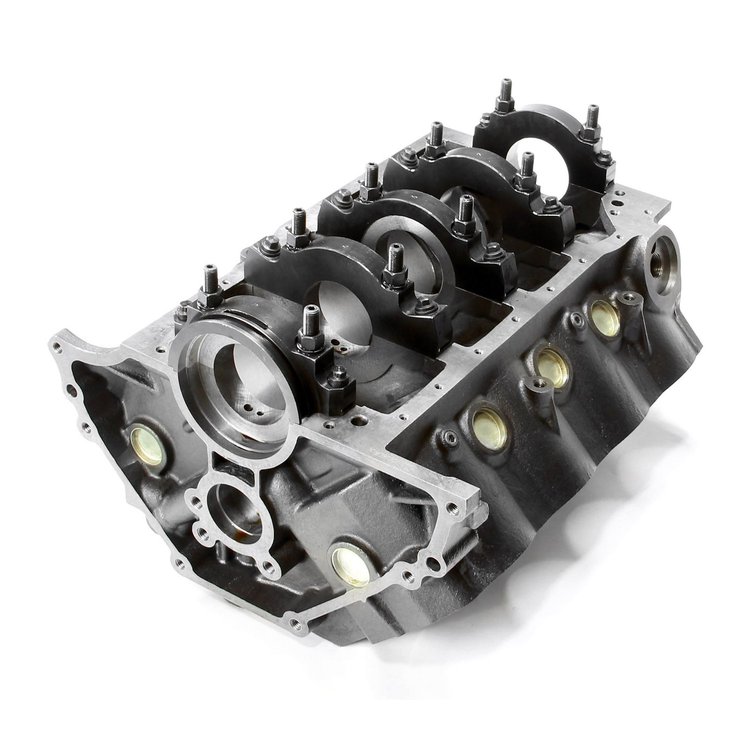

1-286-005-01 Ford 351W B-4.125 M-351C DH-9.500 4-Bolt Billet Main Iron Engine Block
InfoVehicle Info Needed
SPEEDMASTERPART NUMBER: 746-1-286-005-01

1-286-005-01 Ford 351W B-4.125 M-351C DH-9.500 4-Bolt Billet Main Iron Engine Block

$2,85000
Truck Freight
ShippingShips on Sep 03, 2026
Lowest PriceLowest Price Guarantee

Ford 351W Windsor
Bare Engine Block
  • Ford 351W
  • B-4.125 M-351C DH-9.500 4-Bolt Billet Main
  • Iron

    Speedmaster 1-286-005-01 Features:

    The next level of performance is these cast iron Ford small blocks. Designed to look standard under your bonnet, and work with stock components. Block is ready for the street racer or all out racer with added strength and cubic inches. All the factory flaws redesigned to eliminate all problems, still using water jacket design. Blocks are cast from highest quality high-density iron with extra-thick cylinder walls and decks. The blocks webs are stronger and fitted with billet steel 4-bolt main caps. Ideal for for supercharged, turbocharged and nitrous applications!Features Include: Extra thick cylinder walls & decks, 4 bolt splayed mains, enlarged bosses for offset or oversize lifters and scalloped water jacket holes for improved cooling.Used in 1500+HP Applications!Cam Bearing:PCE236.1008Rear Main Seal:FelPro# 2921 or 2942 4.500" x 3.

    • Cast from premium high-strength Class 32B iron
    • Standard deck height allows the use of off the shelf parts
  • Part TypeEngine Block
    BrandSPEEDMASTER
    Package Height18.0
    Package Width20.0
    Package Length24.0
    Weight217.97 PG
    Part CategoryPerformance Parts
    Main Bearing BoreStandard 351c
    Maximum Stroke4.125 in.
    Engine Block Weight (Lbs.)208 Lbs @ 4.125" in. Bore
    Rear Main Seal StyleStandard 1pc.
    Main Bearing Size2.749 in. (Standard 351c)
    Cylinder Bore Diameter4.125 in.
    MaterialCast Iron
    Deck Thickness0.675 in. Min
    Part FitmentSemi Universal
    Fuel Pump TypeStandard Mechanical Provision
    Deck Height9.500 in.
    Vendor Part Number1-286-005-01
    Package Qty1
    Package TypeEA
