Made in USA

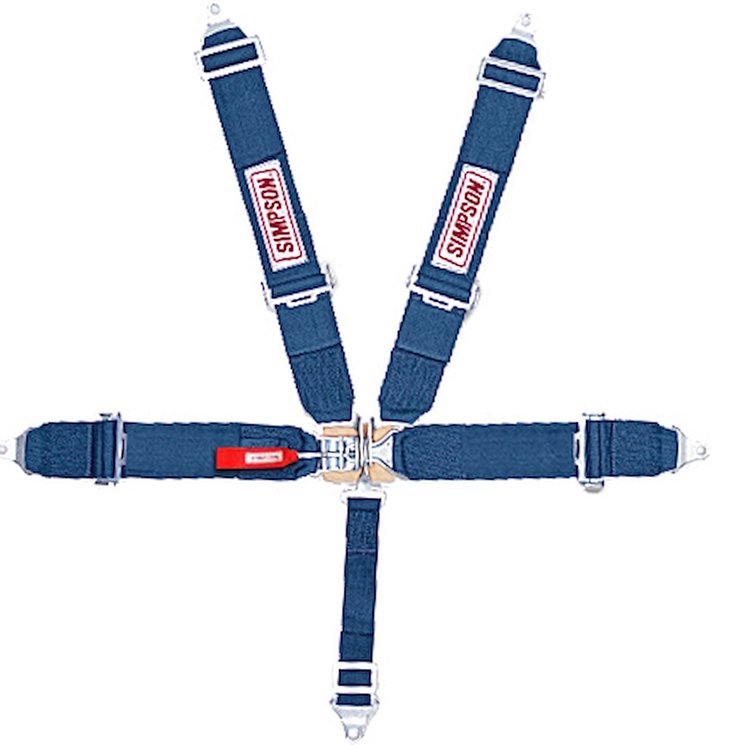

Latch & Link System 5-Point Individual Harness 62" Lap Belt Pull-Up Lap Belt Adjusters
InfoVehicle Info Needed
SIMPSONPART NUMBER: 856-29061R

Latch & Link System 5-Point Individual Harness 62" Lap Belt Pull-Up Lap Belt Adjusters

$13595$159.95You Save$24.00
6 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

5-Point Individual Shoulder Belt Harness
  • Bolt-In Lap, Shoulder & Sub Belt Restraint Mounts
  • Latch & Link System 5-Point Individual Harness
  • 62'' Lap Belt
  • Pull-Up Lap Belt Adjusters
  • Bolt-In
  • Red


    SIMPSON RACING INC 29061R Features:

    Simpson Racing 5 Point Latch and Link Harness - SFI Approved
    • Drop-forged alloy steel with cadmium plating
    • Standard 3" military specification webbing on shoulder and lap belts with heat cut and sealed ends
    • Pull up or pull down adjusters
    • V-type or Individual shoulder harnesses
    • Adjusters include anti-slip springs
    • Floor-mount, bolt-in seat belts, or wrap around
    • Can be made with 2″ upper shoulder harness for Head Restraints
  • Meets SFI 16.1!
    Proven Reliability for Decades!

    This Latch & Link System is the original military aircraft design latch system that was adapted for motorsports many years ago. It still performs with outstanding reliability and ease. Egress is simple, one flip of the latch arm and you're out! Latch components are drop forged alloy steel for strength and durability. Shoulder and lap belts are made of standard 3" military spec webbing, and belt adjuster mechanisms include anti-slip spring as standard issue so you stay right where you are. This harness has a rugged leather skirting attached behind the latch mechanism to provide extra built-in comfort. This is Simpson's original racing harness designed for maximum reliability and affordability.

    Show More

    Features

    • SFI 16.1 Approved
    • Drop-Forged Alloy Steel with Cadmium Plating
    • Shoulder and Lap Belts are Standard 3'' Military Specification Webbing with Heat Cut & Sealed Ends
    • Pull-Up or Pull-Down Adjusters
    • Adjusters Include Anti-Slip Springs
    • Bolt-In Anti-Submarine Belt
    • Black, Blue, Red, or Platinum Series

      Note: ''Pull-Up Lap Belt Adjusters'' and ''Pull-Down Lap Belt Adjusters'' indicate the direction that tightens the lap belt adjusters. For example, a ''Pull-Up Lap Belt Adjuster'' is always the best choice in a Dragster. It is much easier, and safer, to tighten your belts in an upward motion (towards the latch) rather than a downward motion (away from the latch) because of the limited space
      .

    Custom Belt Builder Order Form

    Part TypeSafety Harness
    Product LineSimpson Standard Latch & Link System Harnesses
    BrandSIMPSON
    Package Height3.0
    Package Width9.3
    Package Length11.1
    Weight6.05 PG
    Part CategoryPerformance Parts
    Shoulder Belt Width3 in (76.2 mm)
    Overall Length62 in (1574.8 mm)
    Part FitmentUniversal
    Belts IncludedLap, shoulder, and anti-submarine belts
    Latch StyleLatch
    Vendor Part Number29061R
    Package Qty1
    Package TypeEA
