1302LS1 Engine Swap Headers Fits Select 1963-1999 GM Trucks, SUVs w/GM Gen III LS Engine
InfoVehicle Info Needed
SCHOENFELDPART NUMBER: 649-1302LS1

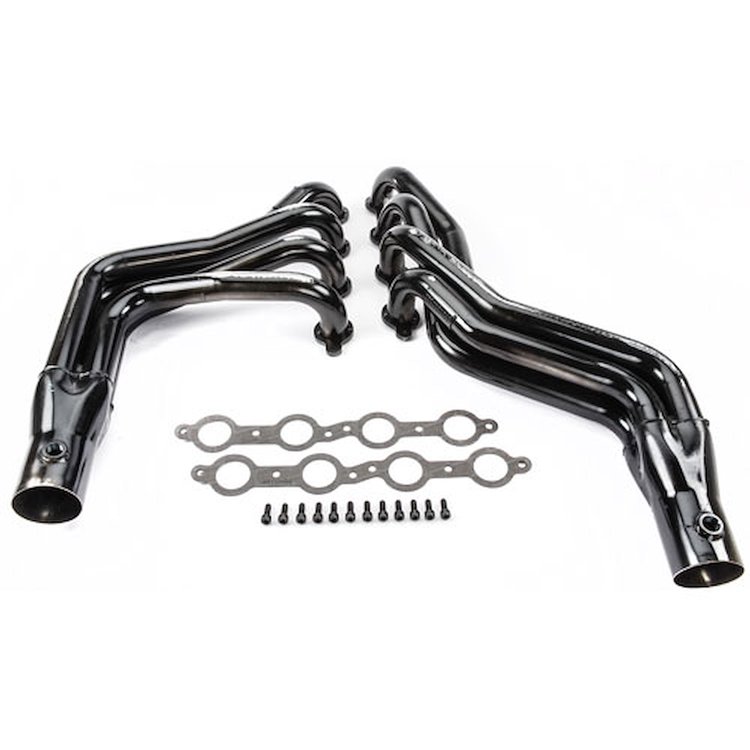

1302LS1 Engine Swap Headers Fits Select 1963-1999 GM Trucks, SUVs w/GM Gen III LS Engine

$34999
4 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee
Best Value
GM LS Engine Swap Headers for 1967-1999 GM Pickup Trucks [Black]

555-30069

GM LS Engine Swap Headers for 1967-1999 GM Pickup Trucks [Black]

$34999

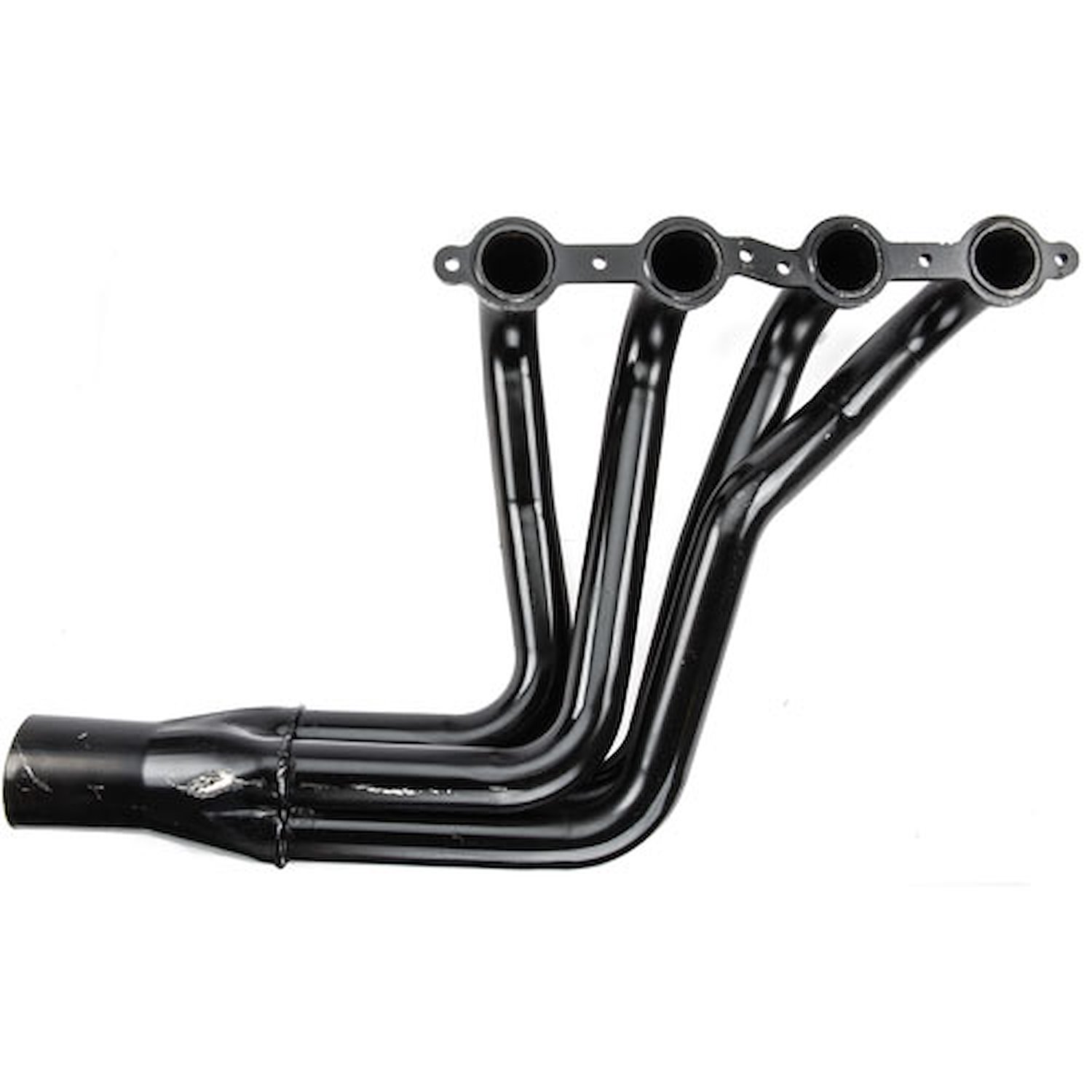

LS Engine Swap Header - GM Truck
Engine Swap Headers
  • 1963-1987 Chevy, GMC Trucks 4WD
  • 1969-1991 Chevy Blazer 4WD
  • 1988-1999 Chevy Trucks 2WD
  • GM Gen III LS Engine Swap
  • 1 3/4 in. Primary Tubes (16 ga.)
  • 3 in. x 8 in. Collectors
  • 5/16 in. Flange
  • O2 Sensor Bungs
  • Pair

    Schoenfeld 1302LS1 Engine Swap Headers Compatible Components (each sold separately):

    • Trans Dapt 4572 Motor Mount Plate
    • Moroso 62510 Motor Mount
    • Moroso 62610 Motor Mount Pad
    • Stock Chevy Truck Cup Engine Mounts

    Schoenfeld 1302LS1 Engine Swap Headers Notes:

    • Black coating is a temporary non-high temperature paint
    • Includes Gaskets and Bolts
    • Will not fit 1988-1999 4-wheel drive Chevy trucks

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

      • Budget-Friendly LS Swap Headers

      Schoenfeld LS Engine Swap Headers deliver bolt-on power at a budget-friendly cost. Each header has a high-quality black painted finish, and each set includes gaskets and bolts. LS Engine Swap Headers are available for GM F-Bodies, G-Bodies, and GM Trucks.

    Part TypeHeader
    Product LineSchoenfeld LS Engine Swap Headers
    BrandSCHOENFELD
    Package Height10.1
    Package Width21.7
    Package Length33.5
    Weight24.2 PG
    Part CategoryPerformance Parts
    Header FinishPainted
    QuantitySold as a pair
    Bolts/Studs IncludedYes
    Cylinder Head Port ShapeRound
    Transmission Mount IncludedNo
    Header MaterialSteel
    Gaskets IncludedYes
    Weld-UpNo
    Collector AttachmentSlip fit
    Flange StyleStandard
    TunedYes
    Collector Diameter3 in (76.2 mm)
    Motor Mounts IncludedNo
    Part FitmentSemi Universal
    Reducers IncludedNo
    Primary Tube Gauge16-gauge
    Header StyleCircle Track 4-1 one-piece
    Cross Over Pipe IncludedNo
    Catalytic Converter(S) IncludedNo
    Primary Tube Diameter1.75 in (44.5 mm)
    Vendor Part Number1302LS1
    Package Qty1
    Package TypeEA
