Applications:

• 1956-1960 Cadillac - Front
• 1955-1957 Chevy Car - Front
• 1965-1970 Chevy Impala - Front
• 1970-1981 Chevy Camaro - Front
• 1972-1976 Ford Torino - Front

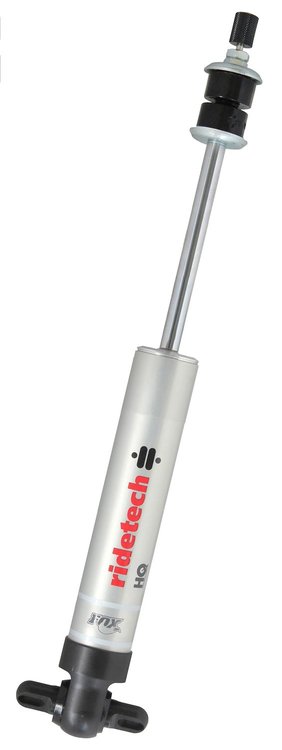

Specifications

• Compressed Length: 9.05"
• Extended Length: 14.3"
• Mounts: Stud/T-Bar



  If Suspension is altered from stock ride height, additional measurement are required:
  Measure your existing shock absorber by either removing it from the vehicle or on the vehicle. Determine extension length by jacking the car up until the wheels start to lift off the ground. This will be your extension length, measure the shock from each mounting surface. Next determine the ride height measurement of your current shock absorber. This can be achieved by measuring the same points but with the car sitting at ride height. Example A shows where to measure a bearing mount (center to center eye). Example B shows where to measure a stud mounted shock (center of lower eye to the bottom of the stud bushing).
