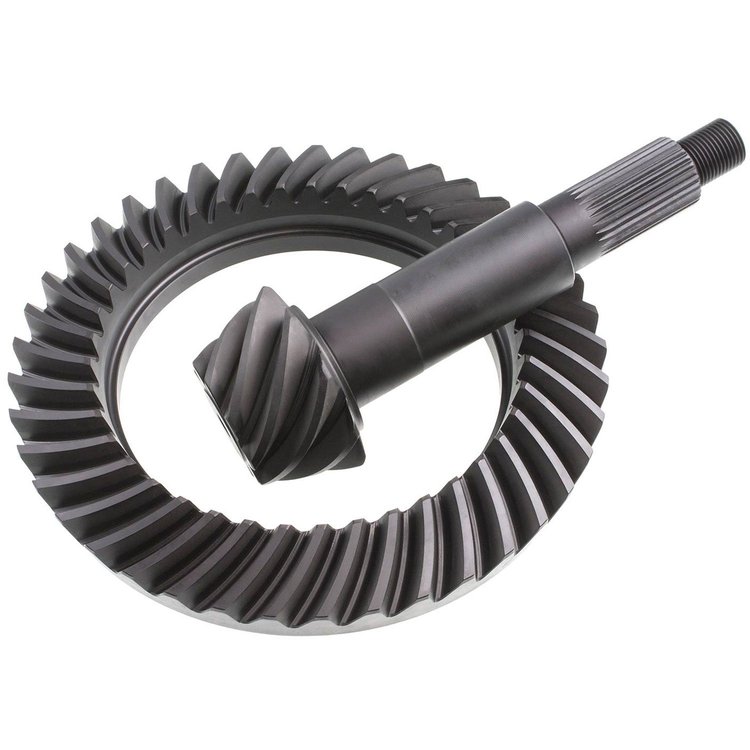

Dana 60 Pro Gear Ring and Pinion Set Ratio: 4.56

Vehicle Info Needed

RICHMOND GEARPART NUMBER: 836-79-0077-1

Dana 60 Pro Gear Ring and Pinion Set Ratio: 4.56

Name: Dana 60 Pro Gear Ring and Pinion Set Ratio: 4.56
Brand: RICHMOND GEAR
SKU: 836-79-0077-1
Price: 647.99 USD
Availability: InStock

^$647⁹⁹$719.99You Save$72.00

1 left in stock

Ships Today

Lowest Price Guarantee

Dana 60

Ratio: 4.56
Teeth: 41-9
Designed For Drag Racing

Part TypeRing and Pinion

BrandRICHMOND GEAR

Package Height5.5

Package Width11.3

Package Length15.2

Weight17.44 PG

Part CategoryPerformance Parts

Ring Gear RotationStandard

Pinion Gear Teeth9

Ring Gear Tooth Quantity41

Carrier Series4

QuantitySold as a set

Differential Carrier Break4.56 and Higher

Cover Bolt Quantity10

Pinion Spline Count29

Ring Gear Material9310 Steel

Ring Gear Diameter9.75 in (247.7 mm)

Ring And Pinion Ratio4.56:1

Pinion Shaft Diameter1.626 in (41.3 mm)

Installation Kit IncludedNo

Pinion Gear Tooth Quantity9

Axle TypeDana 60

Ring Gear Bolts12

Cover Bolts10

Ring Gear Teeth41

Ring Gear Bolt Quantity12

Part FitmentSemi Universal

Vendor Part Number79-0077-1

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
