200-KT-V300SD1S V300SD Data Logger Door Car Kit [Serialized]

Name: 200-KT-V300SD1S V300SD Data Logger Door Car Kit [Serialized]
Brand: RACEPAK
SKU: 806-20KTV300SD1S
Price: 1899.95 USD
Availability: InStock

^$1,899⁹⁵

1 left in stock

Ships Today

Lowest Price Guarantee

Serialized

Door Car Logger Kit

Tailored for Drag Racing

Engine Rpm

Battery Voltage

60 Ft, 330 Ft, 660 Ft, 1000 Ft, 1320 Ft Clock Markers

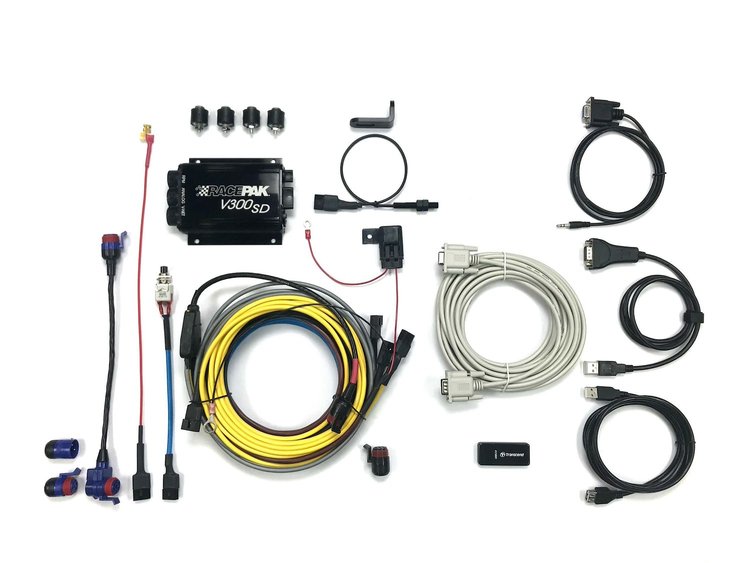

Includes:

v300sd Serialized Data Logger
Battery Harness
SD Memory Card
Datalink V5 Software

The 200-KT-V300SD1S V300SD Data Logger Door Car Kit [Serialized] is purpose-built for drag racing classes including Pro Stock, Pro Modified, Sportsman, and Land Speed vehicles. It offers secured logging with unique serialization for data protection and organization between runs. This system comes preloaded with analytical math channels and out-of-the-box logging capabilities, including engine RPM, driveshaft RPM, G-meters, and battery voltage. Designed to eliminate key-based access, it provides quick log viewing with any DataLink V5-equipped laptop.

Racepak 200-KT-V300SD1S Features:

Sampling up to 1000 frames/sec across 83 total input channels
Preconfigured math channels for clutch slip, AFR, EGT, shock velocity, and more
Supports 72 V-Net, 4 analog, 4 digital, and 3 internal sensor channels
SD memory card included for fast log transfers
No security key required — open access with Datalink V5
Battery-powered ignition compatibility (12–18V)
Door car battery harness setup

Emissions Note:

This part is legal for sale or uses on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Racepak Drag Racing V300SD Data Recorders are the most common recorders found in Pro Stock, Pro Modified and several Sportsman drag racing classes. The base configuration of the V300SD data recorder is capable of monitoring 6 parameters; Engine RPM, Driveshaft RPM, Accel G, Lateral G and Battery Volts and a 12-volt event. The V300SD data recorder can be expanded to monitor up to 67 channels of data in order to meet most needs, and can sample data up to 1000 times per second. The Datalink Lite software is pre-installed, giving the user the ability to record, download and perform telemetry (real-time) sessions, as well as add or remove new sensors and modules. Using a SD memory card, you can upload several hours of recorded data to your computer, and store several runs prior to uploading the data. Any monitored function can also be displayed in real time on Racepak’s IQ3 or UDX dashes (sold separately).

Channels:
