Steel Bellhousing Ford Modular 4.6L/5.4L

Name: Steel Bellhousing Ford Modular 4.6L/5.4L
Brand: QUICK TIME BELLHOUSING
SKU: 698-RM-8083
Price: 1449.95 USD
Availability: InStock

^$1,449⁹⁵

Ships on Nov 03, 2026

Lowest Price Guarantee

Currently Unavailable

This product is currently not available. Please call customer service for assistance at 1-800-345-4545.

Ford Modular

Engine: Ford Modular 4.6L/5.4L
Transmission: Ford Magnum XL T56 or Chevy LS T56
Flywheel: 164-Tooth Flywheel
Clutch: 11" Clutch Disc

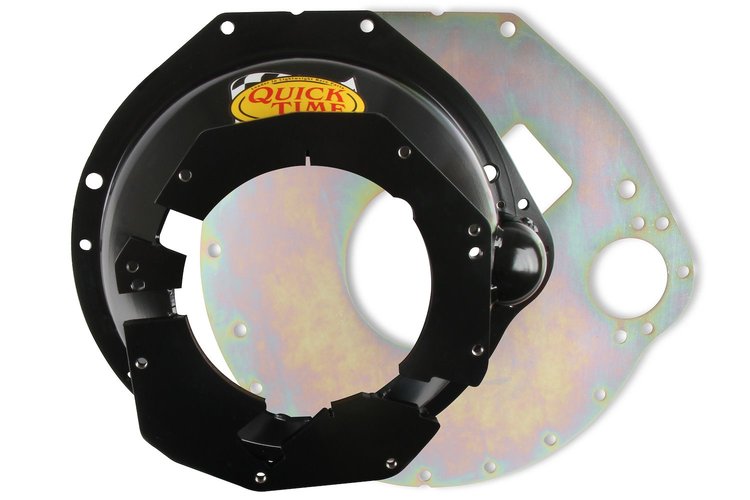

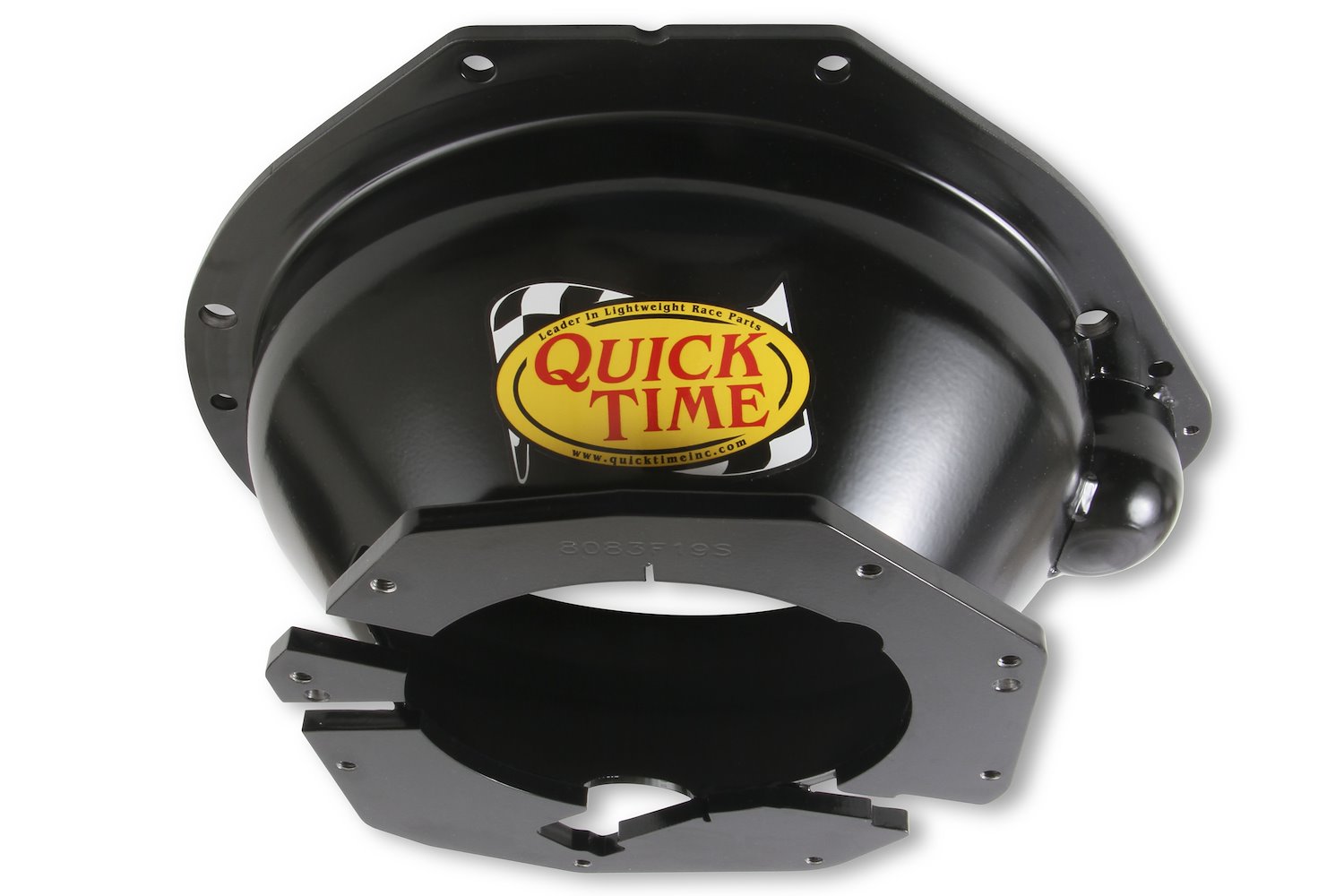

The Quick Time RM-8083 bellhousing connects 4.6/5.0/5.4/5.8/6.2L Ford Mod Engines to Ford Magnum XL T56 or Chevy LS T56 Transmissions. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire.
Features:
Patent on 16 points of Bellhousing Design & Process
Designed For Use With Hydraulic Throw Out Bearing
Designed to be used with 164 Tooth Flywheel
S.F.I 6.1 Certified
Made in the USA

Tech Notes:
Clutch Operation: Hydraulic
Transmission Bore Diameter: N/A
Included Hardware: Engine plate, grade-8 bolts
Weight: 23 lbs.

Blowproof Safety Bellhousings

Quick Time bellhousings for Ford engines have a patent-pending design and manufacturing process to make them the lightest steel bellhousing available. Manufactured from high-grade steel hardened to 80,000+ psi, making them ideal for street, strip, or circle track. Quick Time adapter bellhousings pass SFI testing, increase power, maximize dimensional stability, and reduce drivetrain wear.

Part TypeBellhousing

Product LineQuick Time Ford Engine Bellhousings

BrandQUICK TIME BELLHOUSING

Package Height8.1

Package Width18.5

Package Length19.3

Weight29.31 PG

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part NumberRM-8083

Package Qty1

Package TypeEA
