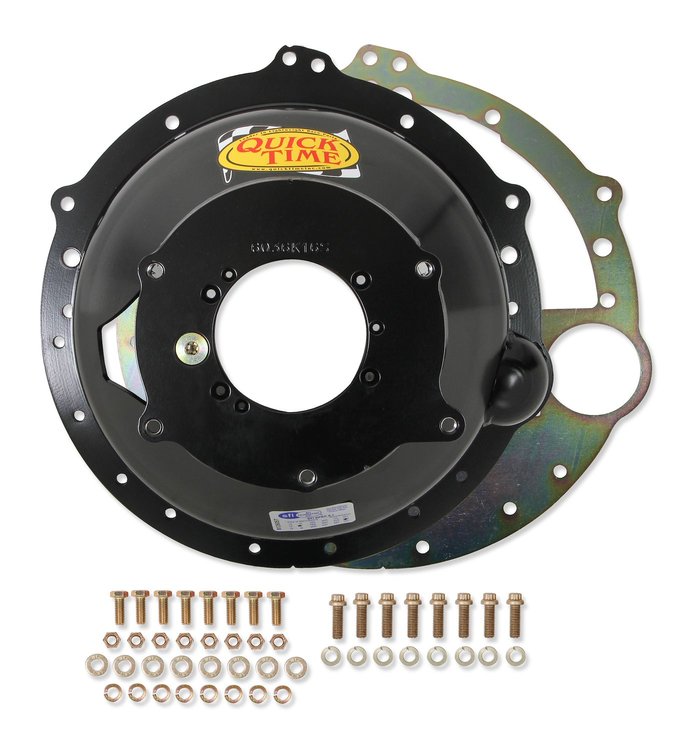

Vehicle Info NeededQUICK TIME BELLHOUSINGPART NUMBER: 698-RM-6036
Steel Bellhousing Engine: All LS Series
$1,07595
1 left in stock
Ships Today
Lowest Price GuaranteeLS Series
Steel BellhousingEngine: All LS Series Engines Transmissions: Flywheel: 153 or 168-Tooth Clutch: 11 in.
- Muncie
- Richmond
- Saginaw
- Falcon
- Bert
- Brinn
- Borg Warner T-10
- Chevy TKO 500-600
- Jerico 4-5 Speed
- TKX

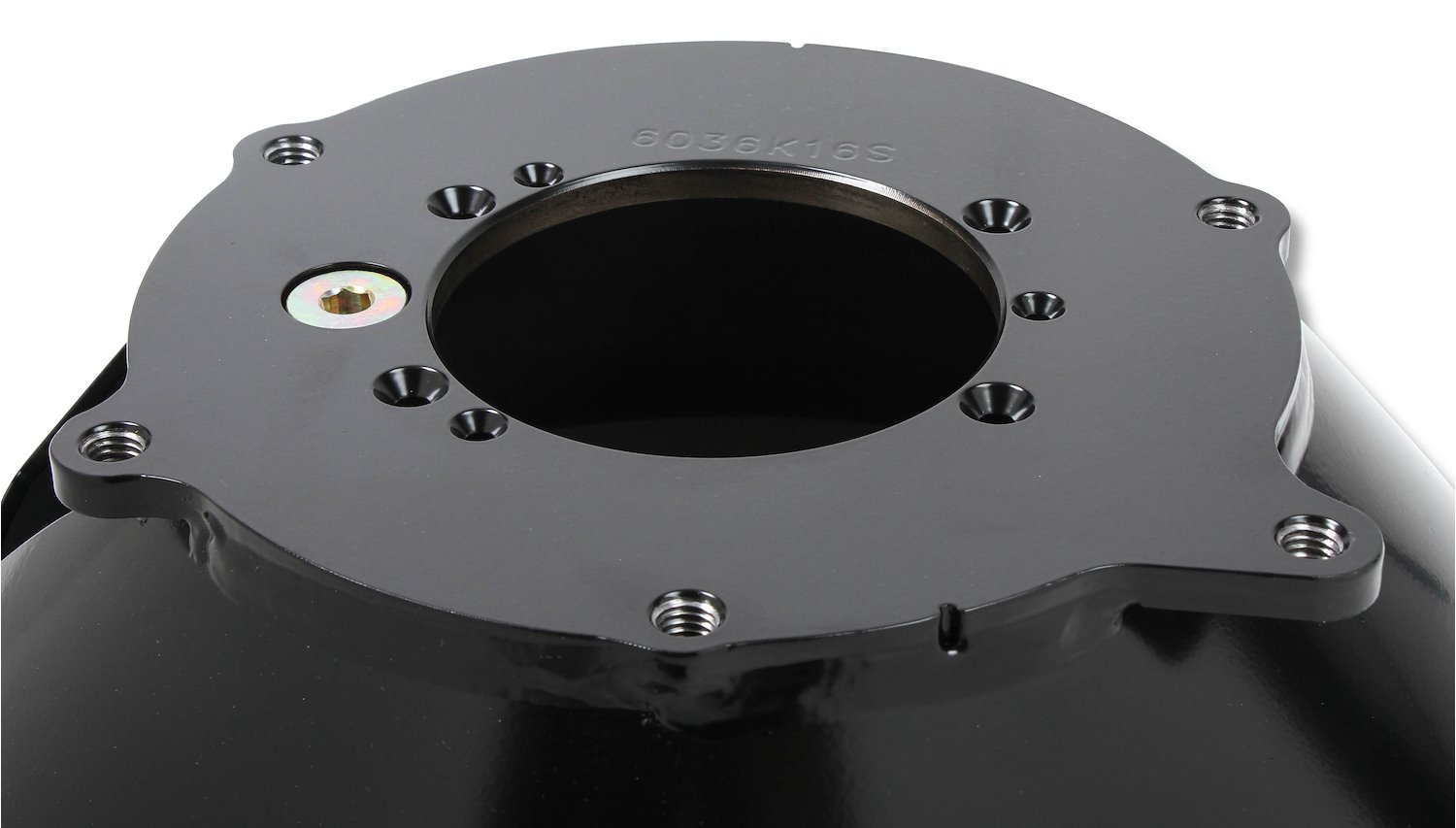

Quick Time RM-6036 Steel Bellhousing:
- SFI Certified 6.1
- Height: 6.290 in.
- Transmission Bore: 4.685 in.
- Weight: 22 lbs.
- Includes full engine plate, pivot ball, and Grade 8 bolts
Quick Time RM-6036 Steel Bellhousing Note:
- Uses stock shifter fork and throwout bearing (not included)
SFI Blowproof Safety
SFI-certified Quick Time Bellhousings for Chevy Engines feature high-grade spun steel castings that are heat-treated to 80,000 psi for lightweight and durable strength. Made to fit various GM transmission and aftermarket cases, these patented 16-point bellhousings maximize dimensional stability and reduce drivetrain, making them ideal for street, strip, and circle track applications.
Part TypeBellhousing
Product LineQuick Time Chevy Engine Bellhousings
BrandQUICK TIME BELLHOUSING
Package Height8.2
Package Width18.7
Package Length18.8
Weight30.04 PG
Part CategoryPerformance Parts
Bellhousing Depth6.29 in (159.766 mm)
Block Plate IncludedYes
Bellhousing MaterialSteel
Adjustable Fork Pivot RecommendedNo
QuantitySold as a kit
Clutch Fork IncludedNo
Sfi-ApprovedYes
Part FitmentSemi Universal
Bellhousing Bore Diameter4.685 in (118.999 mm)
Safety RatingSFI 6.1
Bellhousing TypeNew
Bellhousing FinishBlack
Vendor Part NumberRM-6036
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
