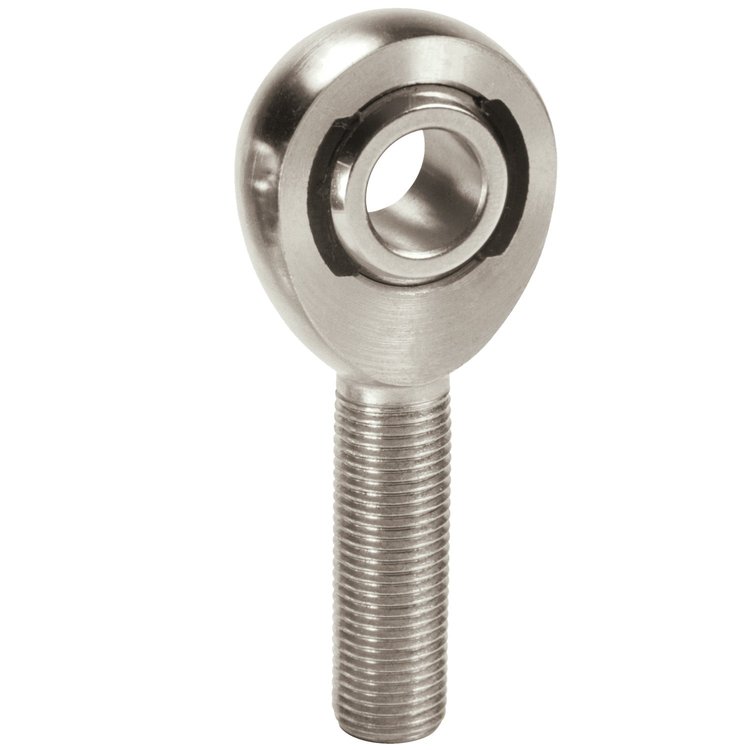

XM Chromoly Steel Series Rod End Hole I.D.: .3750"
InfoVehicle Info Needed
QA1PART NUMBER: 122-XML6

XM Chromoly Steel Series Rod End Hole I.D.: .3750"

$1199
3 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

XM Chromoly Steel Series Rod End
  • Left Hand Thread
    • XM Chromoly Steel Series Rod End
    • Hole I.D.: .3750"
    • LH Thread: 3/8"-24

      ROD END (X) ENDURA ALLOY HT , M-L 3/8-3/8

    XM Male Chromoly Steel Series Rod Ends: For the ultimate in performance rod ends, look no further than QA1's XM Chromoly Steel Series Male rod ends. These heavy duty rod ends are commonly used on 4-link and ladder bars for their strength and durability. XM Series rod ends are completely self-sealing and self-lubricating because of their PTFE®/Kevlar® injection molded race that keeps dirt and debris out.

    • Ball: 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground
    • Race: PTFE®/Kevlar®, Self-Lubricating, Self-Sealing
    • Body: Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance
    • Exclusive Features: Metal to Metal Support for Heavy Shock Loads and Increased Cross-Sectional Thickness for Greater Tensile Strength.
    Show More




    QA1 Endura X-Series Chromoly Steel Rod Ends are also available with Female threads

    Part TypeRod End
    Product LineQA1 Endura XM Series Male Rod Ends
    BrandQA1
    Package Height0.5
    Package Width0.8
    Package Length3.0
    Weight0.1 PG
    Part CategoryPerformance Parts
    Rod End AttachmentMale Threads
    Rod End FinishZinc plated
    Thread Length1.25 in (31.8 mm)
    Rod End Head Bore Size0.375 in (9.5 mm)
    Rod End Thread Size (In.)3/8-24 LH
    QuantitySold individually
    Rod End Centerline Length1.938 in (49.2 mm)
    Jam Nut IncludedNo
    Rod End Misalign Angle (Deg)12 degrees
    Rod End Head Diameter1 in (25.4 mm)
    Rod End Ball Width0.5 in (12.7 mm)
    Grease FittingNo
    Rod End Construction2-piece
    Heat-TreatedYes
    Rod End Head Width0.5 in (12.7 mm)
    Rod End Static Load Capacity (Lbs.)9,544
    Rod End MaterialChromoly
    Rod End StylePTFE/KEVLAR« lined
    Part FitmentUniversal
    Vendor Part NumberXML6
    Package Qty1
    Package TypeEA
