Vehicle Info NeededQA1PART NUMBER: 122-NPB16T

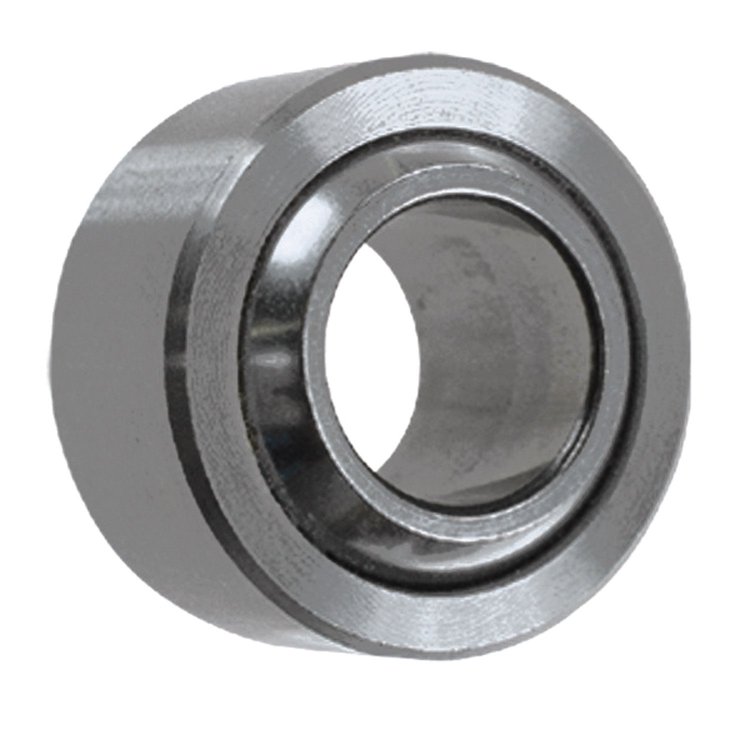

NPB16T NPB-T Narrow Stainless Steel Series Spherical Bearing, 1 in. Bore
$4399
3 left in stock
Ships Today
Lowest Price GuaranteeNPB-T Narrow Stainless Steel Series Spherical Bearing1 in. Bore Sold Individually
QA1 NPB16T Features:
- Made from stainless steel with a PTFE liner
- Tighter tolerances than traditional spherical bearings
- The ball is made from 440C stainless steel that has been heat treated, hard chrome plated, and precision ground
- The PTFE liner is self-lubricating
- The race is made from heat treated stainless steel
Premium and Durable Bearings
QA1's NPB-T Narrow Stainless Steel Series spherical bearings are the perfect selection for a precision spherical bearing. Each bearing is made from stainless steel with a PTFE liner and has tighter tolerances than traditional spherical bearings. The ball is made from 440C stainless steel that has been heat treated, hard chrome plated, and precision ground. The PTFE liner is self-lubricating, and the race is made from heat treated stainless steel.
Part TypeSuspension Bearing
Product LineQA1 NPB-T Narrow Series Stainless Steel Spherical Bearings
BrandQA1
Package Height1.0
Package Width1.75
Package Length1.75
Weight0.39 PG
Part CategoryPerformance Parts
Ult. Static Radial Load (Lbs.)82,200
Race Width0.797 in (20.2 mm)
Receiver Race Diameter0.75 in (19.1 mm)
Rod End Bearing MaterialStainless steel
QuantitySold individually
Inner Ball Diameter1 in (25.4 mm)
Rod End Ball Diameter1.5 in (38.1 mm)
Chamfer Reference0.044 in (1.118 mm)
Part FitmentSemi Universal
Rod End Misalign Angle (Deg)9 degrees
Inner Ball Width1 in (25.4 mm)
Vendor Part NumberNPB16T
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
