Vehicle Info NeededQA1PART NUMBER: 122-MIB8T

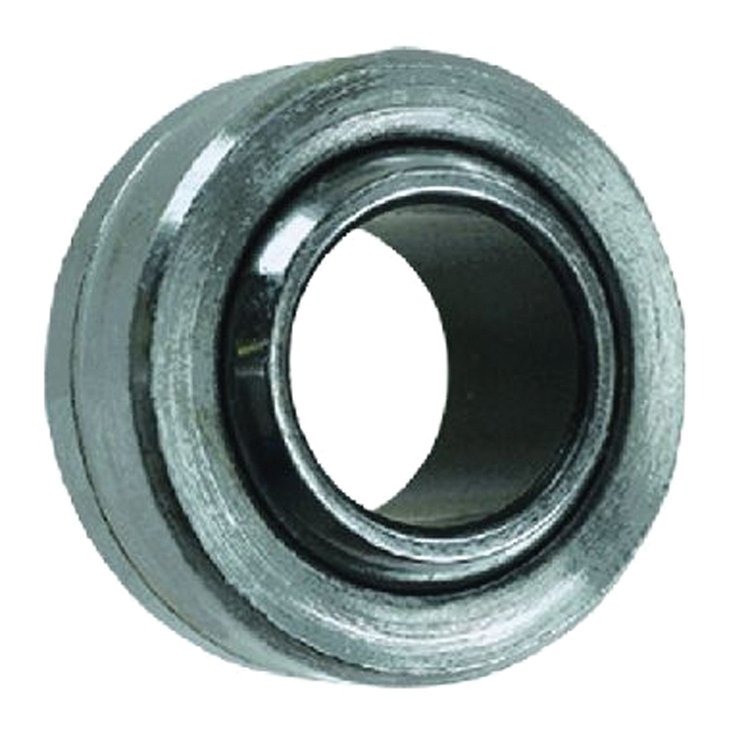

MIB8T MIB-T Alloy Steel Series Spherical Bearing, 0.500 in. Bore, PTFE-Lined
$1499
5 left in stock
Ships Today
Lowest Price GuaranteeMIB-T Alloy Steel Series Spherical Bearing0.500 in. Bore PTFE-Lined
QA1 MIB8T Features:
MIB-T Low Carbon Steel Series spherical bearings offer more wear surface than a traditional COM bearing, extending the life due to the increased race width and diameter.
- BALL 52100 Bearing Steel
- Heat Treated Hard Chrome Plated
- Precision Ground LINER
- PTFE Self-Lubricating RACE
- Low Carbon Steel I.D. Protective Coated for Corrosion Resistance
- Heat Treated Stainless Steel
Longer Lasting Bearings
QA1's MIB and MIB-T Low Carbon Steel Series spherical bearings offer more wear surface than a traditional COM bearing, extending the life due to the increased race width and diameter. An optional self-lubricating PTFE liner is also available with these spherical bearings (MIB-T Series).
Part TypeSuspension Bearing
Product LineQA1 MIB-T Alloy Steel Series Spherical Bearings
BrandQA1
Package Height0.62
Package Width1.09
Package Length1.09
Weight0.11 PG
Part CategoryPerformance Parts
Ult. Static Radial Load (Lbs.)18,740
Race Width0.5 in (12.7 mm)
Receiver Race Diameter1.094 in (27.8 mm)
Rod End Bearing MaterialSteel
QuantitySold individually
Inner Ball Diameter0.5 in (12.7 mm)
Rod End Ball Diameter0.937 in (23.8 mm)
Chamfer Reference0.02 in (0.508 mm)
Part FitmentSemi Universal
Rod End Misalign Angle (Deg)9.5 degrees
Inner Ball Width0.625 in (15.875 mm)
Vendor Part NumberMIB8T
Package Qty1
Package TypeEA
