Vehicle Info NeededQA1PART NUMBER: 122-HFR6T

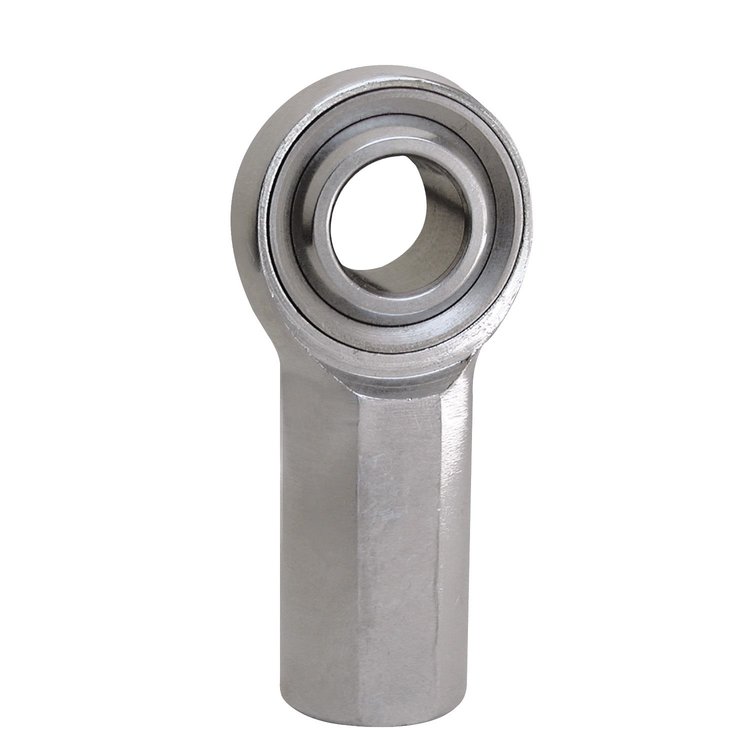

HFR6T H Series Rod End, Rod End (H) 3-Pc Alloy Ht F-R 3/8-3/8 PTFE
$1499
Ships on Sep 04, 2026
Lowest Price Guarantee![Two-Piece Rod End with Jam Nut [3/8 in. Hole]](https://www.jegs.com/images/mini_200/500/555/555-64173.jpg)
H Series Rod EndRod End (H) 3-Pc Alloy Ht F-R 3/8-3/8 PTFE
QA1 HFR6T Features:
With a PTFE liner added to the traditional three-piece chromoly steel female rod end, QA1's HF-T Series rod ends are ideal for a variety of applications. True precision rod ends, the HF-T Series are available in right and left hand threads and in metric and inch dimensions. Stud configurations are available by calling 800-721-7761. BALL, 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground, , RACE, Low Carbon Steel, Corrosion and Wear Resistant, PTFE Lined, , BODY, Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance.
- Rod ends for every motorsport need
- Precise tolerances
- Guaranteed strength, durability and quality champions demand
Part TypeRod End
BrandQA1
Package Height0.5
Package Width1.0
Package Length2.12
Weight0.15 PG
Part CategoryPerformance Parts
Rod End AttachmentFemale Threads
Rod End FinishZinc plated
Thread Length0.937 in (23.8 mm)
Rod End Head Bore Size0.375 in (9.5 mm)
Rod End Thread Size (In.)3/8-24 RH
QuantitySold individually
Rod End Centerline Length1.625 in (41.3 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)12 degrees
Rod End Head Diameter1 in (25.4 mm)
Rod End Ball Width0.5 in (12.7 mm)
Grease FittingNo
Rod End Construction3-piece
Heat-TreatedYes
Rod End Head Width0.5 in (12.7 mm)
Rod End Static Load Capacity (Lbs.)9,544
Rod End MaterialChromoly
Rod End StylePTFE lined
Part FitmentSemi Universal
Vendor Part NumberHFR6T
Package Qty1
Package TypeEA
