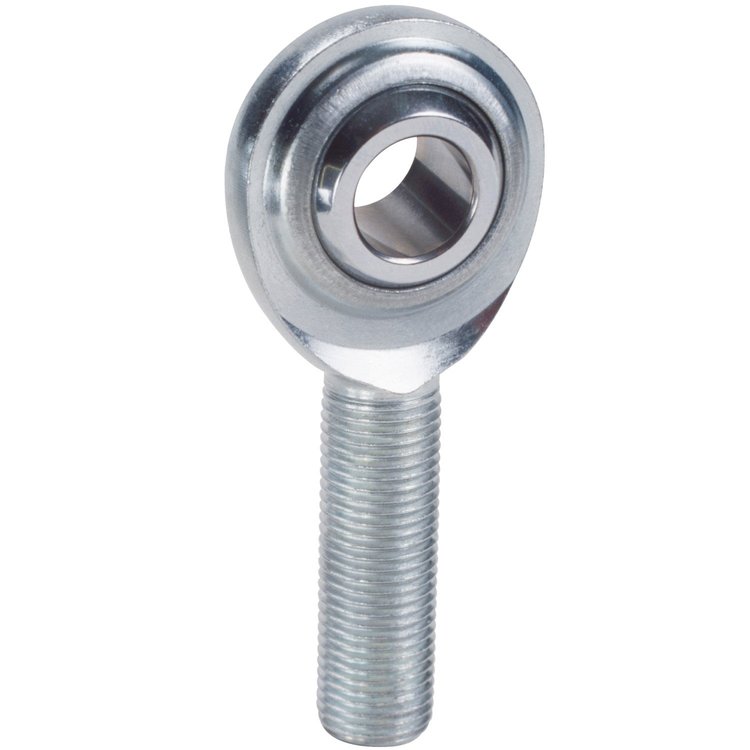

CM Series Rod EndsRight Hand
- CM Series Rod End
- Hole I.D.: 1/4''
- Thread Size: 1/4"-28 RH
- Misalign Angle: 27°
- Static Load: 2,835 lbs.
Built for Strength and Corrosion Resistance
For a traditional carbon steel two-piece rod end, QA1 offers this CM Carbon Steel Series rod ends. These metal-to-metal rod ends are built for strength and are protective coated for corrosion resistance. They are available with left and right-hand thread to make your project turn out correctly.
Part TypeRod End
Product LineQA1 CM Series Rod Ends
BrandQA1
Package Height0.4
Package Width1.7
Package Length1.9
Weight0.05 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishZinc plated
Thread Length1 in (25.4 mm)
Rod End Head Bore Size0.25 in (6.4 mm)
Rod End Thread Size (In.)1/4-28 RH
QuantitySold individually
Rod End Centerline Length1.562 in (39.7 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)27 degrees
Rod End Head Diameter0.75 in (19.1 mm)
Rod End Ball Width0.375 in (9.5 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.375 in (9.5 mm)
Rod End Static Load Capacity (Lbs.)2,835
Rod End MaterialCarbon steel
Rod End StyleMetal to metal
Part FitmentUniversal
Vendor Part NumberCMR4
Package Qty1
Package TypeEA
