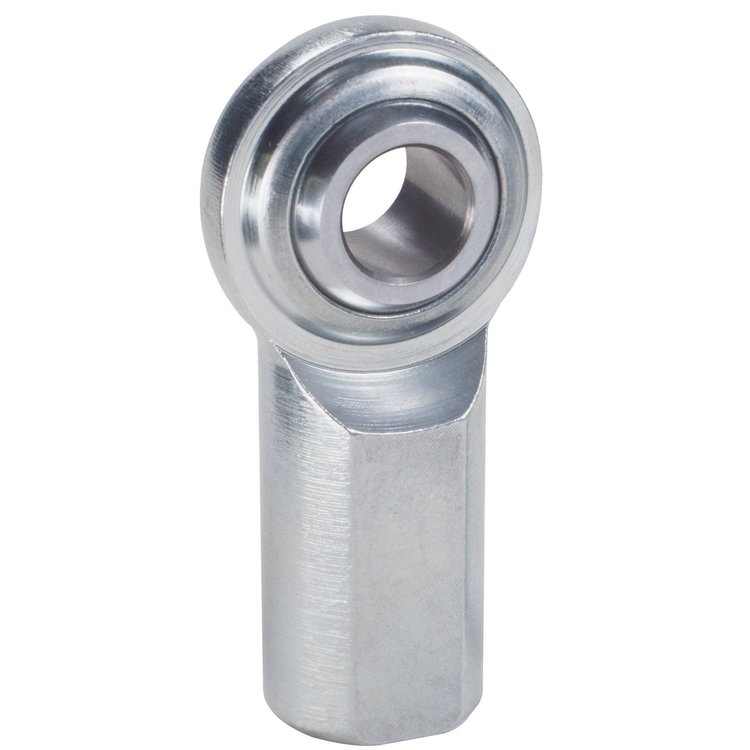

CF Series Rod End Hole I.D.: 3/8"

Name: CF Series Rod End Hole I.D.: 3/8"
Brand: QA1
SKU: 122-CFR6
Price: 5.99 USD
Availability: InStock

^$5⁹⁹

Ships Tomorrow

Lowest Price Guarantee

Best Value

555-640102

Flat Tabs [1/4 in. Hole]

^$10⁹⁹

CF Series Rod Ends

Right Hand

CF Series Rod End
Hole I.D.: 3/8"
Thread Size: 3/8"-24 RH

Details:
Misalign Angle: 22°
Static Load: 6,323 lbs.

Part TypeRod End
BrandQA1
Package Height0.8
Package Width1.7
Package Length3.4
Weight0.14 PG
Part CategoryPerformance Parts
Rod End AttachmentFemale Threads
Rod End FinishZinc plated
Thread Length0.812 in (20.6 mm)
Rod End Head Bore Size0.375 in (9.5 mm)
Rod End Thread Size (In.)3/8-24 RH
QuantitySold individually
Rod End Centerline Length1.625 in (41.3 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)22 degrees
Rod End Head Diameter1 in (25.4 mm)
Rod End Ball Width0.5 in (12.7 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.5 in (12.7 mm)
Rod End Static Load Capacity (Lbs.)6,323
Rod End MaterialCarbon steel
Rod End StyleMetal to metal
Part FitmentUniversal
Vendor Part NumberCFR6
Package Qty1
Package TypeEA
