II-5G A7SABF593 Fuel System DF-165-5G for 2003-2007 Ford Trucks 6.0L Powerstroke Engine [165 gph]

Name: II-5G A7SABF593 Fuel System DF-165-5G for 2003-2007 Ford Trucks 6.0L Powerstroke Engine [165 gph]
Brand: PUREFLOW AIRDOG
SKU: 323-A7SABF593
Price: 872.00 USD
Availability: InStock

^$872⁰⁰

More than 10 available

Ships Today

Lowest Price Guarantee

Ford

2003-2007 Ford Trucks
6.0L Diesel Engine
Pressure Side Connects to Injection PumpSuction Side Hooks to OEM Suction Line
Replaces Factory Frame Rail Pump
Returns Through Y in Factory Return Line
165 gph

Pureflow Airdog A7SABF593 Features:

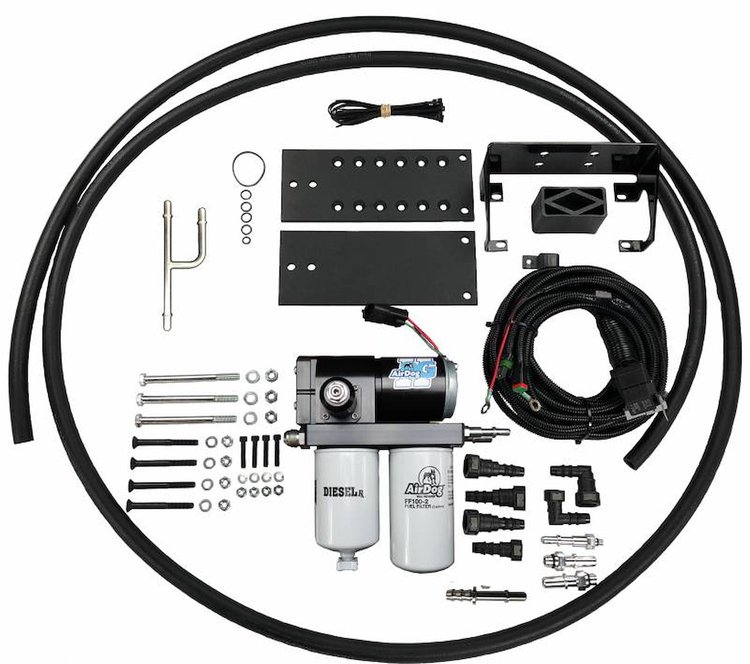

This is the AirDog II-5G DF-165-5G fuel system for the 2003-2007 Ford 6.0L Powerstroke. This replaces the factory frame rail fuel pump. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system. The suction side hooks up to the factory suction line on the frame rail. The pressure side connects to the factory feed line to the injection pump. The AirDog Air/Vapor return is sent back to the tank through a return that ties the AirDog return to the factory engine return. This is a 165GPH (Gallon Per Hour) lift pump system for moderately modified trucks. Check out our installation manual for a list of parts that are included with this kit.

Part TypeFuel System Kit

BrandPUREFLOW AIRDOG

Package Height8.4

Package Width13.5

Package Length19.6

Weight26.3 PG

Part CategoryPerformance Parts

Wiring Harness IncludedYes

Fuel Pump IncludedYes

Fuel Hose IncludedYes

Fittings IncludedYes

Mounting Hardware IncludedYes
