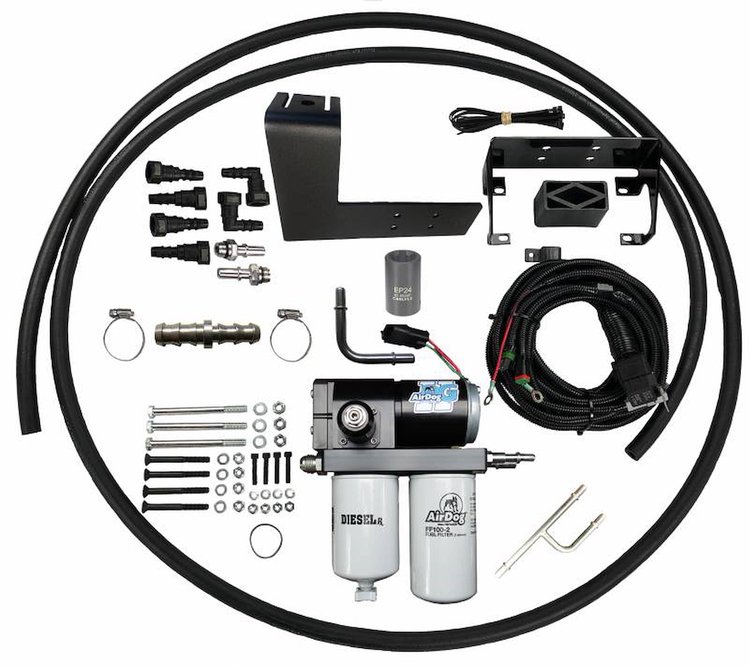

II-5G A7SABF590 Fuel System DF-165-5G for 2017-2022 Ford Trucks 6.7L Diesel Engine [165 gph]

Name: II-5G A7SABF590 Fuel System DF-165-5G for 2017-2022 Ford Trucks 6.7L Diesel Engine [165 gph]
Brand: PUREFLOW AIRDOG
SKU: 323-A7SABF590
Price: 1007.00 USD
Availability: InStock

^$1,007⁰⁰

7 left in stock

Ships Today

Lowest Price Guarantee

Ford

2017-2022 Ford Trucks
6.7L Diesel Engine
Pump Draws Fuel From Modified Fuel Module
Sends Fuel to Factory Frame Rail Feed Line
Pressure Line Tapped w/Return Y to Feed Basket Venturi
165 gph

Pureflow Airdog A7SABF590 Features:
The AirDog II-5G for this application uses a bed bracket to be mounted inside the bed forward of the rear wheel. The fuel module is to be modified to allow the venturi fill system to work to ensure no 1/4 tank issues. The pump draws fuel from the modified fuel module and sends it to the factory frame rail feed line. The pressure line is tapped with a return y to feed the venturi in the basket with pressurized fuel. The AirDog return is sent back to the modified fuel module. This is a 165GPH (Gallon Per Hour) lift pump system for moderately modified trucks. Check out the most current installation manual below for a list of parts that are included in this kit.

Remove Air From Your Diesel Fuel System for Maximum Performance

The AirDog II-5G delivers unmatched protection and performance for your lift pump system. Its patented air separation, combined with a water separator and fuel filter, ensures that your expensive injection system components receive clean fuel. Designed to overcome power loss at higher altitudes caused by factory fuel pumps, the AirDog II-5G is the first diesel system to feature an integrated diaphragm fuel pressure regulator, offering enhanced adjustability, improved fuel flow under pressure, and boost compensation. With larger porting, it reduces cavitation and noise at the inlet of the high-flow 220 GPH pumps. Every AirDog II-5G system includes upgraded wiring harnesses and connectors for improved durability and reliability.

Part TypeFuel System Kit

Product LinePureflow AirDog II-5G Lift Pump & Fuel/Air Separator Systems

BrandPUREFLOW AIRDOG

Package Height8.5

Package Width13.3

Package Length19.4

Weight24.4 PG

Part CategoryPerformance Parts

Wiring Harness IncludedYes

Fuel Pump IncludedYes

Fuel Hose IncludedYes

Fittings IncludedYes
