A4SPBD100 Fuel System FP-100-4G for 1994-1998 Dodge Trucks 5.9L Cummins 12V Engine [100 gph]

Name: A4SPBD100 Fuel System FP-100-4G for 1994-1998 Dodge Trucks 5.9L Cummins 12V Engine [100 gph]
Brand: PUREFLOW AIRDOG
SKU: 323-A4SPBD100
Price: 769.00 USD
Availability: InStock

^$769⁰⁰

Ships Tomorrow

Lowest Price Guarantee

Dodge/Ram

1994-1998 Dodge Trucks
5.9L Cummins 12V Engines
Connects Directly to P-Pump
Utilizes Suction Port in Pump Module
Bypasses OEM Fuel Filter
No-Drill Installation
100 Gallons per Hour (gph)

Pureflow Airdog A4SPBD100 Features:

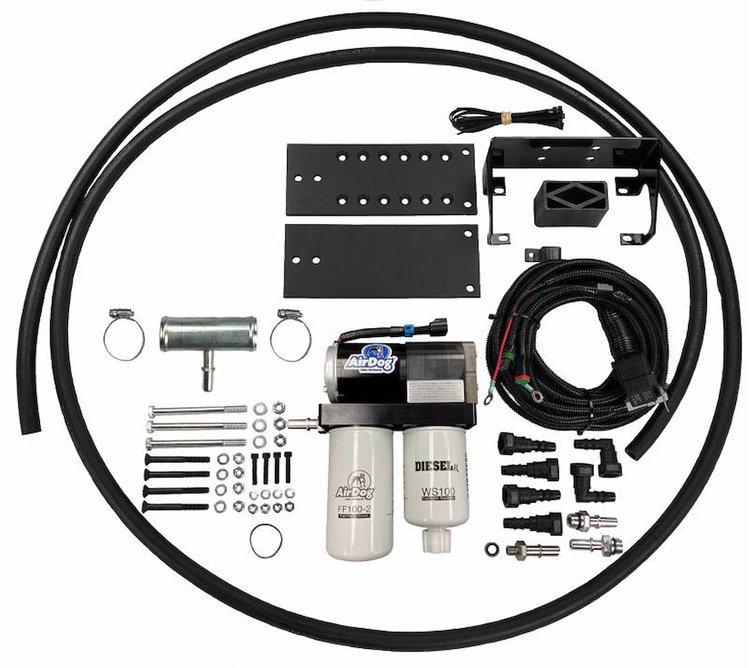

This is the AirDog I FP-100-4G fuel system for the 1994-1998 Dodge Ram with the P-Pump 12V Cummins. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system. This system utilizes the factory suction port in the fuel module for suction and connects directly to the P-Pump, bypassing the factory fuel filter housing and factory fuel pump. Lines and fittings are included to connect the injection pump return, which would normally recirculate through the factory fuel filter housing, to the injector return line and is returned to the tank. The AirDog Air/Vapor return is sent back to the tank through a filler neck tee. This is a 100GPH (Gallon Per Hour) lift pump system. Check out our installation manual for a list of parts that are included with this kit.

The Original AirDog Fuel/Air Separator System

The Original AirDog I System is an easy way to increase performance and durability on your diesel truck. It effectively removes contaminants such as entrained air/vapor, particulates, and moisture from the fuel. It also returns excess fuel not required by the engine to the fuel tank via the regulator. After the lift pump separates air and vapor, they are directed to the return port after the regulator, ensuring pure fuel reaches the engine at a regulated positive pressure. The gerotor pump ensures quiet and durable performance. Available for popular GM and Dodge diesel applications.

Part TypeFuel System Kit

Product LinePureflow AirDog Original Lift Pump & Fuel/Air Separator Systems

BrandPUREFLOW AIRDOG

Package Height8.3

Package Width13.5

Package Length19.7

Weight27.2 PG

Part CategoryPerformance Parts

Wiring Harness IncludedYes

Fuel Pump IncludedYes

Fuel Hose IncludedYes

Fittings IncludedYes
