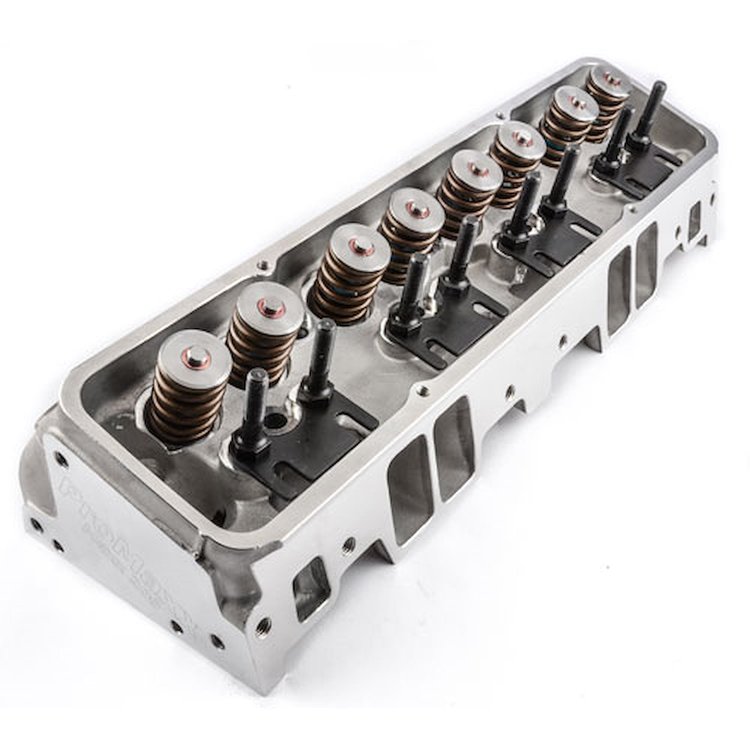

200 Series Aluminum Cylinder Heads Small Block Chevy
InfoVehicle Info Needed
PROMAXX PERFORMANCEPART NUMBER: 723-9200

200 Series Aluminum Cylinder Heads Small Block Chevy

$1,22900
4 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

200 Series Intake Port Volume
  • 64cc Combustion Chambers
  • Straight Spark Plug Configuration
    • 200 Series Aluminum Cylinder Heads
    • Small Block Chevy
    • As-Cast
    • 200cc Intake Ports
    • 64cc Combustion Chambers
    • 2.02'' Intake / 1.60'' Exhaust Valves
    • 3/8'' Rocker Arm Studs
    • .575" Max Lift
    • Steel Retainers
    • Assembled, 2/pkg

      Additional Cylinder Head Specifications
    • Valve Angle: 23°
    • Valve Seal Material: Viton
    • Spark Plug Configuration: Straight
    • Maximum Spring Lift: .575" Hydraulic Flat Tappet Springs

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Maxx Quality, Performance and Affordibility!

    The ProMaxx MAXX Series Small Block Chevy Aluminum Cylinder Heads are taking affordable performance street and strip cylinder heads to the next level. Even the ''as cast'' heads utilize ultra-smooth new runner and chamber designs that produce ''CNC'd type'' flow numbers. While creating the 100% CNC Ported MAXX series, Many long hours on the flow bench were invested for one of the best flowing out-of-the-box cylinder heads available at the best price. This combined with a 5-angle competition valve job, diamond-honed bronze guides, hand bowl blending, and professional assembly to outperform the best brands in the business.

    Show More

    Features:

    • A356-T6 Aluminum Castings
    • Hand Bowl Blending
    • Efficient Chamber Design
    • Straight or Angled Spark Plug Configurations Available
    • Available 'Bare' or 'Assembled'
    • 5-Angle Competition Valve Job
    • Diamond-Honed Bronze Guides
    • ''MAXX'' Power for Street or Strip
    • Sold in Pairs, 2/pkg.

      JEGS EZ Kits are designed by JEGS professionals to ensure that you get all the correct parts you need.

    Part TypeCylinder Head
    Product LineProMaxx MAXX Series Small Block Chevy Aluminum Cylinder Heads
    BrandPROMAXX PERFORMANCE
    Package Height10.0
    Package Width14.0
    Package Length21.0
    Weight50.0 PG
    Part CategoryPerformance Parts
    Maximum Valve Lift0.575 in (14.605 mm)
    Valve Springs IncludedYes
    Valve Guide MaterialBronze
    Cylinder Head Material356-T6 Aluminum
    Combustion Chamber Volume (Cc)64
    Intake Valves IncludedYes
    Cylinder Head StyleAssembled
    Exhaust Valves IncludedYes
    Part FitmentSemi Universal
    Intake Runner Volume (Cc)200
    Engine Make/SizeChevy Small Block
    Vendor Part Number9200
    Package Qty1
    Package TypeEA
