Flow Data

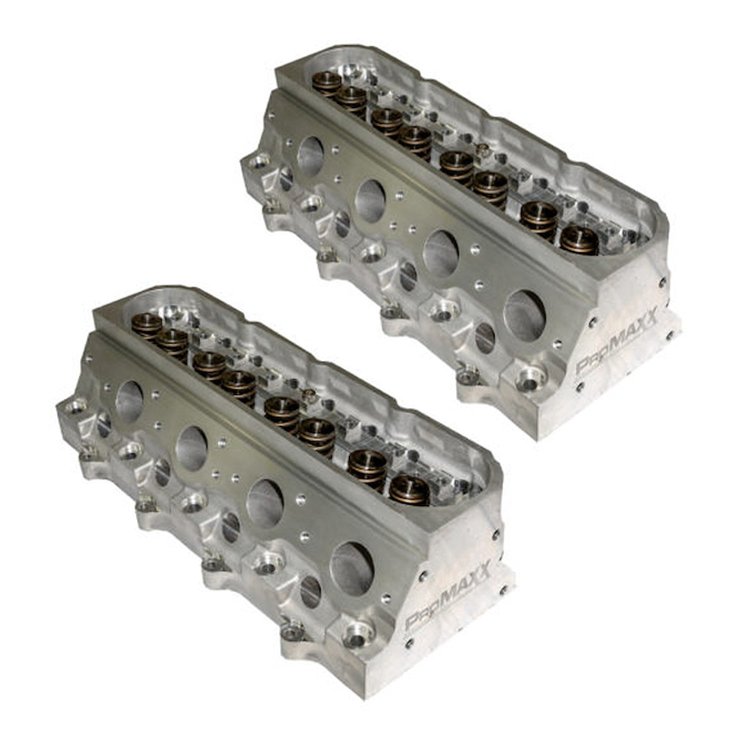

ProMaxx 3143 XXTREME Assembled Cylinder Heads Features:

• High-flow as-cast port design
• Ultra-smooth 356-T6 aluminum casting
• 21-4N stainless 1 piece swirl polished back cut valves
• 5-angle valve job
• 11-Degree valve angle
• Hardened steel valve seats
• OEM LS3 valve spacing
• Manganese bronze diamond honed guides
• Viton valve seals
• Built-in raised valve cover rail
• .750 in. deck thickness
• Billet LS3 OEM rocker stand
• For use with standard or 6 bolt pattern
• Large spring pockets

ProMaxx 3143 XXTREME Assembled Cylinder Heads Notes:

• Requires 3.898 in. minimum engine cylinder bore
• Requires LS3 intake rocker arms
• Included valve springs for solid roller cam with tool steel retainers specs:
  • .800 in. Maximum valve lift

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
