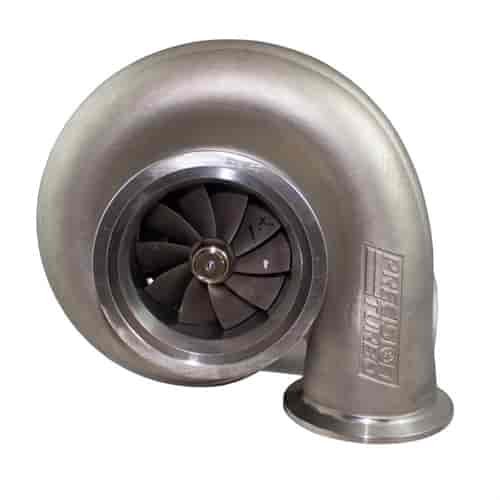

Gen II PT7675 CEA Mirror Image Turbocharger
InfoVehicle Info Needed
PRECISION TURBOPART NUMBER: 234-25107240839

Gen II PT7675 CEA Mirror Image Turbocharger

$3,57772
ShippingShips on Sep 16, 2026
Lowest PriceLowest Price Guarantee

Reverse Rotation
    Gen II PT7675 CEA Mirror Image Turbocharger
  • Reverse Rotation
  • 76 mm Compressor Wheel
  • Dual Ceramic Ball Bearing
  • 1.25 A/R Ratio

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Game-Changing Symmetrical Twin-Turbo Setups

    Precision Turbo Gen II PT7675 CEA Mirror Image Turbocharger is a premium design with no shortage of cutting edge technology. The compressor wheel is milled out of 2618 forged aluminum and features Precision Turbo's proprietary Competition Engineered Aerodynamics (CEA) technology. The air-cooled center section utilizes dual ceramic ball bearings for added thrust load capacity and longevity. While this turbo is not a one size fits all, it is the best choice for a low boost street driven V8 up to 400 ci and will provide excellent low-end torque. Mirror Image Turbochargers work great for twin-turbo applications that require a more symmetrical look.

Part TypeTurbocharger
Product LinePrecision Turbo Gen II PT7675 CEA Mirror Image Turbochargers
BrandPRECISION TURBO
Part CategoryPerformance Parts
Turbocharger Bearing StyleCeramic ball bearing
Compressor Outlet StyleSlip fit
Ported Compressor HousingYes
QuantitySold individually
Turbine Wheel Exducer Size (Mm)75.08
Wastegate TypeExternal
Turbocharger StyleGen2 PT7675
Compressor Wheel Inducer Size (Mm)76.45
Volute TypeOpen
Turbine Housing MaterialStainless steel
Turbine Housing Outlet FlangeV-band
Turbine Housing Inlet FlangeV-band
Turbine Wheel Trim83.00
Turbine Housing A/R Ratio1.28
Turbine Housing FinishNatural
Turbine Housing IncludedYes
Compressor Housing MaterialAluminum
Compressor Wheel ConstructionForged aluminum
Wastegate IncludedNo
Turbocharger CoolingOil
Compressor Housing IncludedYes
Part FitmentSemi Universal
Compressor Wheel Trim84.00
Package Qty1
Package TypeEA
