NOVI 1200SL PowerHat Supercharger System 1964-68 Mustang (Passenger Side Mount)
InfoVehicle Info Needed
PAXTONPART NUMBER: 769-1001864SL-P

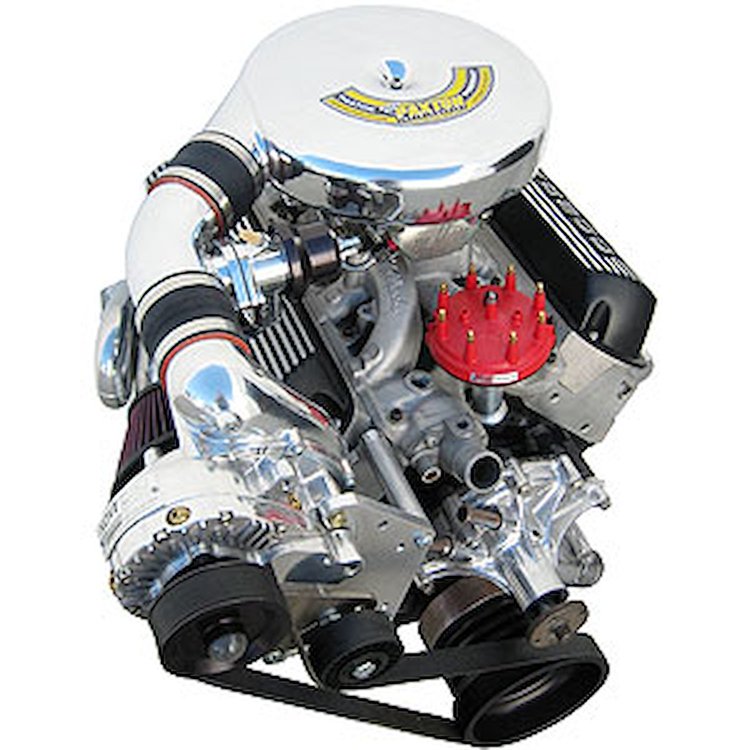

NOVI 1200SL PowerHat Supercharger System 1964-68 Mustang (Passenger Side Mount)

$4,40599
ShippingShips on Oct 21, 2026
Lowest PriceLowest Price Guarantee
Currently Unavailable

This product is currently not available. Please call customer service for assistance at 1-800-345-4545.

1964-68 Mustang
  • Passenger Side Mount
  • PowerHat Carburetor Assembly
  • NOVI 1200SL PowerHat Supercharger System
  • 1964-68 Mustang (Passenger Side Mount)
  • Small Block Ford 260/289/302 Carbureted
  • Polished

    This entry-level PowerHat System produces horsepower gains that range from 30% to 75% based on boost level and the engine's volumetric efficiency. It can be used on many existing OE drive configurations with or without power steering. The system can also be upgraded with optional parts for additional power (suggestions below). The PowerHat Carburetor Bonnet applies diffusion technology for maximum power output. An integrated air management diffuser element minimizes the jetting/tuning issues associated with traditional "carb hats." The design permits a near-360-degree rotation for universal fit, and the 3.2" low-profile height provides ample hood clearance.

    Included Components
  • NOVI 1200SL Supercharger (3.7" drive)
  • Billet aluminum 8-rib supercharger crank pulley with hard anodized finish (6.88" diameter)
  • Integrated manual belt tensioner with sealed bearing tensioner pulley and 8-rib belt
  • Billet aluminum mounting bracket & hardware with provision for alternator mount
  • Supercharger air inlet filter
  • Aluminum discharge tube with clamps and silicon sleeves
  • Cast aluminum PowerHat Carburetor Bonnet Assembly (3" inlet port)
  • Sealing gaskets and necessary mounting hardware for attachment to 4150-type 4-barrel carburetor

    Notes
  • Maximum Ratings: 775 HP/52,000 RPM/22 psi/1,150 cfm
  • 4 to 10 hours to install depending on application
  • 1967-68 Mustang may require relocation of the battery
  • Power steering and alternator can be retained (Generators must be replaced)
  • No CARB EO Numbers apply (California Air Resources Board Executive Order)
  • Preset pulley ratio will produce about 6-8 psi at 5500 RPM on a mildly modified 289 engine
  • The included discharge tube accommodates many intake manifold heights, but high-rise manifolds may require modification for best fit

    Required Components (Not Included)
  • Quick Fuel, Demon, or Holley 4150-type 4-bbl carb with mechanical secondaries designed for 'blow-through' applications (Rejetting may be required; #793-Q-750-BAN recommended for most applications)
  • High-volume boost-referenced fuel pump
  • Compressor bypass valve for all applications exceeding 5 psi boost (From Paxton: #769-8D204-001, #769-8D103-001, or #769-8D205-003)
  • Accessory belts (Varies per application based on accessory configuration and supercharger pulley diameters)

    Recommended Components
  • Aluminum Bypass Weld-On Flange: #933-8D004-052, #933-8D003-052, or #933-8D005-051
  • MSD 6A Ignition Amplifier Box or equivalent

    Emissions Notes:

    This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles, on engines that have been transplanted or swapped into uncontrolled or pre-pollution controlled vehicles and vehicles used solely for the purposes of closed competition racing.

    The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:

    • 1965 and older U.S. manufactured California Certified vehicles
    • 1967 and older U.S. manufactured Federally Certified vehicles
    • 1967 and older Foreign manufactured vehicle

    The following vehicles are considered Racing Use Only Vehicles:

    • Racing Use Only Vehicles are those vehicles that are used exclusively for competition that is not registered, will never become registered, and will never be used on streets or highways.

    WARNING: It is against the law to install this part on an Emissions Controlled Vehicle.

    The following vehicles are considered Emissions Controlled Vehicles:

    • 1966 and newer U.S. manufactured California Certified vehicles
    • 1968 and newer U.S. manufactured Federally Certified vehicles
    • 1968 and newer Foreign manufactured vehicle

    *Installation of parts that are not CARB-approved on a pollution-controlled vehicle in the State of California, or in any state that has adopted CARB emissions standards, may result in the Department or Bureau of Motor Vehicles (DMV or BMV) revoking the vehicle registration and certificate of ownership (title), refusing the transfer of registration, and/or the vehicle failing smog inspection. Law enforcement may cite you for the use of an illegal aftermarket part and seize your title and license plate.*

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

  • Part TypeSupercharger
    BrandPAXTON
    Package Height19.0
    Package Width19.0
    Package Length24.0
    Weight50.0 PG
    Part CategoryPerformance Parts
    Part FitmentSemi Universal
    Vendor Part Number1001864SL-P
    Package Qty1
    Package TypeEA
