PACBRAKE HP10470-BR Features:

*PLEASE NOTE: This kit is to be used with an HP10470: Single Channel Wireless Control w/ HD 325 Series Compressor kit and DOES NOT include the compressor assembly or controller.

The kit comes with everything required for easily mounting an HP10470 kit:

• Military-grade solenoids Designed to withstand extreme environments
• Waterproof and debris resistant Demand a Pacbrake IP67-rated controller
• Don't experience the irreparable debris clogs of other leading products! Our compressor has accessible components that allow easy serviceability and replacement of parts
• Smarter App An easy to use app that reads real time pressure feedback within each air spring and provides more of the data you need. The app has 3 built-in memory presets so you can quickly achieve your desired air spring pressure.
• Faster Fills Up to 10% faster than the leading competition
• Quick and Easy Install Pre-installed push-to-connect air fittings and pre-assembled wiring connectors reduce installation time

Pacbrake Wireless Controls are universal fit on the frame of any vehicle, work with any air spring on the market. They can also be easily installed with common mechanic tools under 1 hour - no lines or wires to the cab and no drilling required!

• MAX WORKING PRESSURE / DUTY CYCLE: 1034 kPa [150 psi], 33% @ 689.5 kPa [100 psi]
• MAX CONTINUOUS RUN TIME: 20 Minutes ON / 40 Minutes OFF
• RATED FLOW: 31.1 L/min [1.1CFM] @ 0kPa [0 psi]
• INDEPENDENT / SIMULTANEOUS FILL: Simultaneous
• INGRESS PROTECTION: IP55 Compressor, IP67 Electric Connectors
• WEIGHT: 3.38 kg [7.45 lbs]
• AMBIENT OPERATING TEMPERATURE RANGE: -40ºC to +70ºC [-40ºF to +158ºF]
• NOMINAL SUPPLY VOLTAGE: 12 VDC
• MAX CURRENT DRAW: 17 Amps

PACBRAKE HP10470-BR Notes:

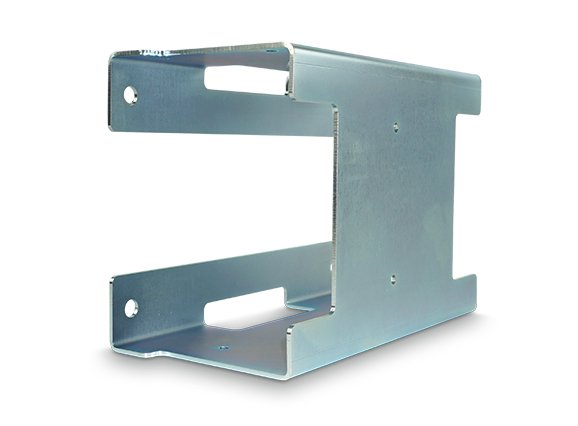

• The "Quickie Mount" Bracket Assembly comes with everything required for easily mounting an HP10470
• Mounting Bracket
• All mounting hardware
