Made in USA

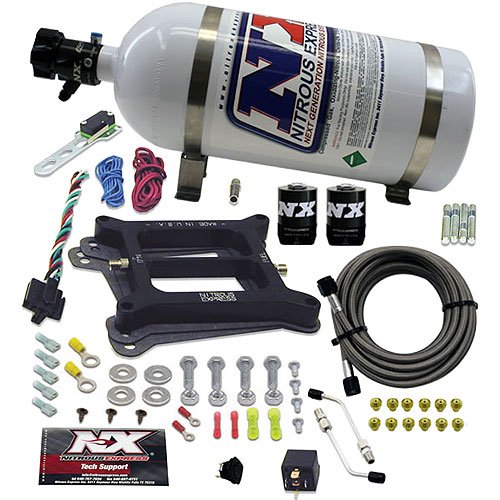

30040-10 Conventional Stage 6 Nitrous Plate System Holley 4150 Carb Spray Plate
InfoVehicle Info Needed
NITROUS EXPRESSPART NUMBER: 744-30040-10

30040-10 Conventional Stage 6 Nitrous Plate System Holley 4150 Carb Spray Plate

$87483
2 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Holley 4150-Series Carburetor Spray Plate
  • Gasoline Applications
    • Conventional Stage 6 Nitrous Plate System
    • Holley 4150 Carb Spray Plate
    • 50, 100, 150, 200, 250, 300 WHP
    • Gasoline
    • 10 lb. Bottle

      If you have a carbureted vehicle and you're on a budget or are just getting started, Nitrous Express Stage 6 nitrous systems could be the ideal beginning point. They're tunable to deliver power boosts in six graduated increments, from 50 hp all the way up to 300. That means you can pick one of the lower increases for an engine that's close to stock, and then ramp things up later on when you add forged pistons.

    Easy to Install System Packed
    with NX's Industry Leading Components!

    50 to 300 WHP

    The conventional Stage 6 is the perfect entry level nitrous system for the budget minded sportsman racer. These systems feature the most advanced technology using the conventional spraybar-less design. The 'Phase 3' series nitrous spray plate is one of the Next Generation in nitrous performance and reliability, this new innovative design provides superior distribution and outstanding atomization. With no spray bars to sag, split, block airflow, or damage this NX plate will provide years of consistent service.

    Show More

    Systems come complete with or without nitrous bottle and include limited lifetime guaranteed 'Lightning' solenoids, heavy duty 40-amp relay, stainless bottle brackets, and extra long supply line. Systems with bottle includes the new industry exclusive billet aluminum 'Lightning 45' bottle valve.

    Nitrous Express innovates and leads the off-the-shelf nitrous system market! Their systems include the latest technology, designs and the best components available such as the NX Lightning nitrous & fuel solenoids. These solenoids feature an improved flow path that eliminates sharp turns and expansion areas in the nitrous flow path. This keeps the nitrous in dense liquid form which makes more power utilizing less nitrous. Lightning nitrous solenoids feature an integrated purge port which allows you to connect a purge valve directly to the body of the nitrous solenoid for clean looks and less plumbing. Lightning Series solenoids feature CNC aluminum bodies topped with Carbon Fiber cans for the ultimate in weight savings. This kit also includes a Nitrous Express bottle which features the legendary 'Lightning 45' bottle valve. This bottle valve features a direct flow path with ONLY one 45-degree turn to the outlet and a consistent inner diameter which provides outstanding laminar flow and eliminates any chance of those power robbing gaseous bubbles from developing. The 'Lightning 45' valve also features a built-in gauge port, a high flow push port and weighs less than old school brass bottle valves.

    Features:

    • Spraybarless Billet Aluminum Nitrous Spray Plate
    • Single stage system
    • -04AN Feedline
    • Nickel plated fittings
    • Jetting for 50, 100, 150, 200, 250, 300 rear wheel horsepower

    *Click Here to see why NX Lightning 45 & NX DF5 Bottle Valves, Phase 3 Nitrous Spray Plate and NX Lightning Solenoid outperforms the competition!

    Part TypeNitrous System
    Product LineNitrous Express Conventional Stage 6 Nitrous Plate System
    BrandNITROUS EXPRESS
    Package Height9.8
    Package Width10.9
    Package Length27.9
    Weight23.9 PG
    Part CategoryPerformance Parts
    Nitrous System StyleWet
    UsageStrip/Competition
    Bottle Brackets IncludedYes
    Nitrous Bottle Capacity (Lbs.)10
    Jet Sizes Included (Hp)50, 100, 150, 200, 250, 300
    Dual StageNo
    QuantitySold as a kit
    Delivery StyleSquare bore plate
    ActivationMicroswitch
    Bottle MaterialAluminum
    Bottle IncludedYes
    TypeHolley 4 bbl Flange
    BottleWith Bottle
    Bottle ColorWhite
    Maximum Advertised Horsepower Increase300
    Part FitmentUniversal
    Bracket MaterialStainless steel
    Vendor Part Number30040-10
    Package Qty1
    Package TypeEA
