Vehicle Info NeededMSD IGNITIONPART NUMBER: 121-8285

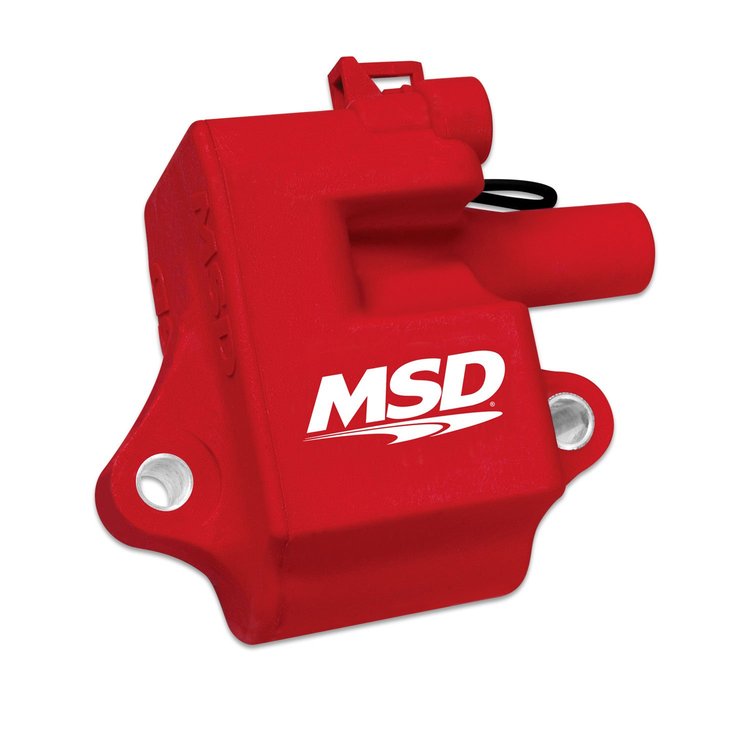

Multiple Spark Coil GM LS1/LS6 Engines
$15995
Ships on Sep 03, 2026
Lowest Price GuaranteeLS1/LS6
- Multiple Spark Coil
- GM LS1/LS6 Engines
- 1/pkg
- Produces Multiple; Powerful Sparks
- Two Connectors Molded Into Custom Housing
- Improved Performance
- Produces Three Times The Spark Current Of Stock
- Complete Kit With Mounting Hardware
- Easy Installation
- CARB Approved Legal For Use In All States
- OBD II Approved Legal For Use In All States
- Improved high rpm operation
- Multiple Sparks at idle RPM
- 3 times the current of stock coils
Part TypeIgnition Coil
BrandMSD IGNITION
Package Height2.2
Package Width5.6
Package Length7.5
Weight1.2 PG
Part CategoryPerformance Parts
Primary Resistance0.730 ohms
Coil Wire AttachmentFemale/Socket
Coil StyleCoil pack
QuantitySold individually
Ballast Resistor IncludedNo
Maximum Voltage40,000 V
Turns Ratio56:01:00
Peak Current124 mA
Coil ShapeSquare
Mounting Bracket IncludedNo
Inductance3.6 mH
Coil ColorRed
Coil Wire IncludedNo
Spark Duration1,110 uS
Secondary Resistance3.7K ohms
Part FitmentSemi Universal
Coil Internal ConstructionEpoxy
Vendor Part Number8285
Package Qty1
Package TypeEA
