Pro Power HVC II Coil For Use With 7 & 8-Series Ignition Controls

Name: Pro Power HVC II Coil For Use With 7 & 8-Series Ignition Controls
Brand: MSD IGNITION
SKU: 121-8261
Price: 348.95 USD
Availability: InStock

^$348⁹⁵$387.95You Save$39.00

1 left in stock

Ships Today

Lowest Price Guarantee

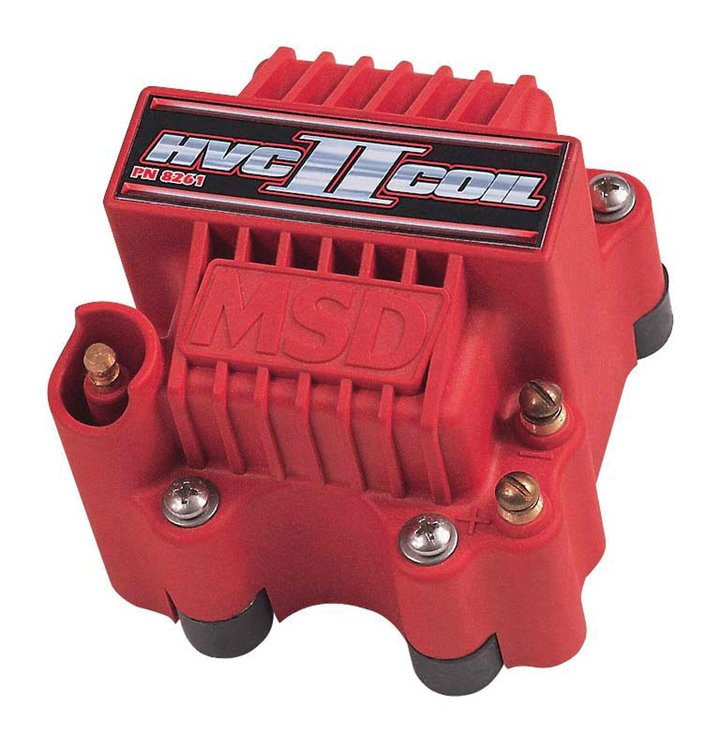

Pro Power HVC II Coil

For Use With 7 & 8-Series Ignition Controls

The HVC II Coil is built entirely in-house at MSD. It is designed to be used with MSD 7 and 8 Series Ignition Controls.
Coil Specs:
Turns ratio: 70:1
Primary resistance: .016 OHMs
Secondary resistance: 30 OHMs
Inductance: .250 mH
Maximum voltage: 45,000 Volts
Peak current: 2 Amp
Spark duration: 150 uS
Weight: 3.75 lbs.
Features:
Designed for racing applications with an MSD 7 or 8 Series Ignition Control
New U-core winding design produces more voltage and current
70:1 turns ratio and lower primary resistance produce high voltage output
Windings are encased in fracture resistant compound for vibration resistance
Dupont Rynite housing with isolated tower and brass primary terminals

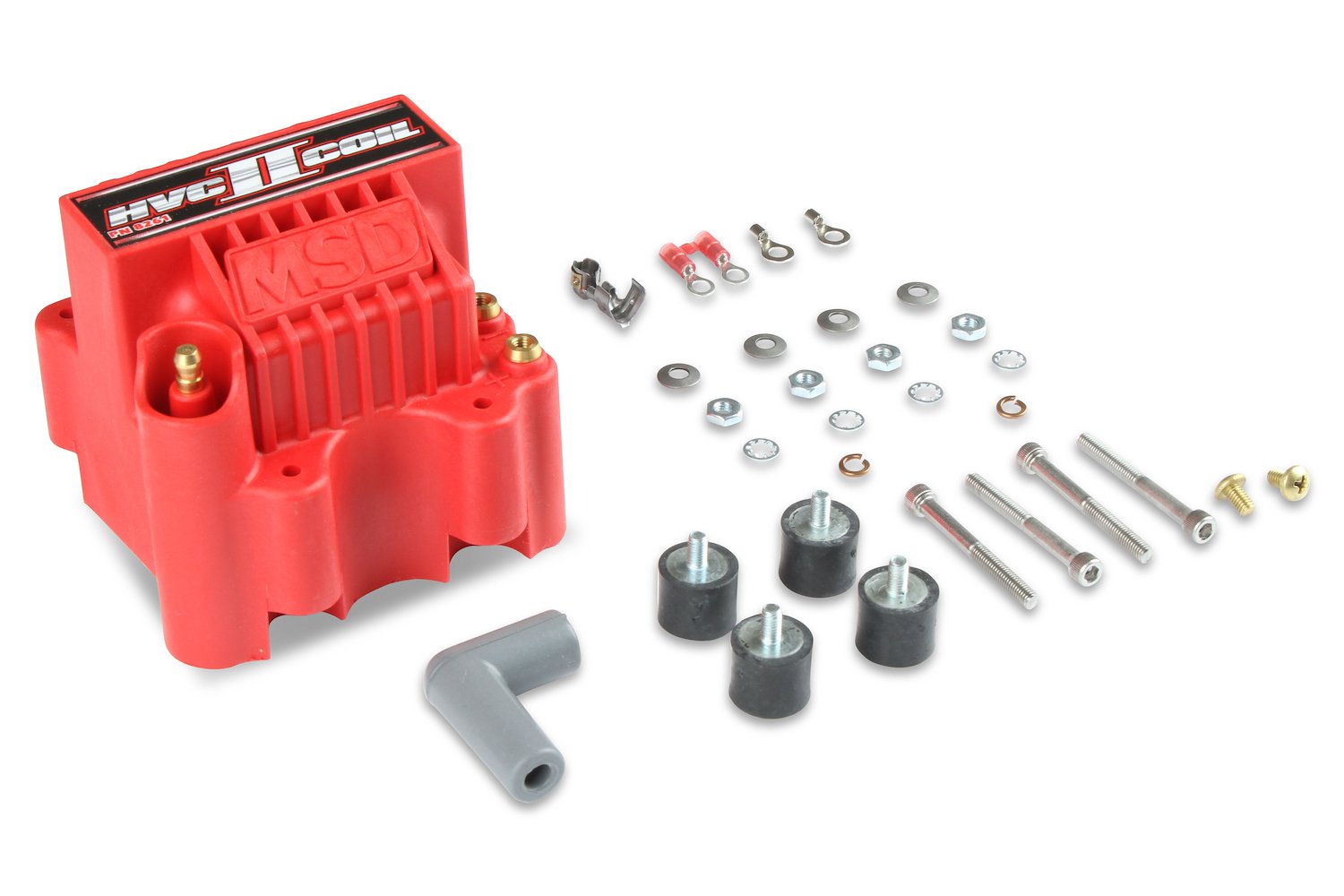

Supplied with rubber shock mounts
No CARB Exemption Order Number
Note: Not legal for sale or use on pollution-controlled vehicles.
Designed for racing applications with an MSD 7 or 8 Series Ignition Control
New U-core winding design produces more voltage and current
70:1 turns ratio and lower primary resistance produce high voltage output
Windings are encased in fracture resistant compound for vibration resistance
Dupont Rynite housing with isolated tower and brass primary terminals
Supplied with rubber shock mounts

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

High-Power Ignition Coils

MSD HVC, HVC II, and HVC III Ignition Coils are high voltage/high current performance coils that run cool with efficient windings that combine high voltage and current for reduced electricity transfer loss, resulting in maximum voltage and energy.

Part TypeIgnition Coil

Product LineMSD HVC & HVC II Ignition Coils

BrandMSD IGNITION

Package Height5.5

Package Width5.5

Package Length6.2

Weight4.25 PG

Part CategoryPerformance Parts

Primary Resistance0.160 ohms

Coil Wire AttachmentMale/HEI

Coil StyleU-core

QuantitySold individually
