Made in USA

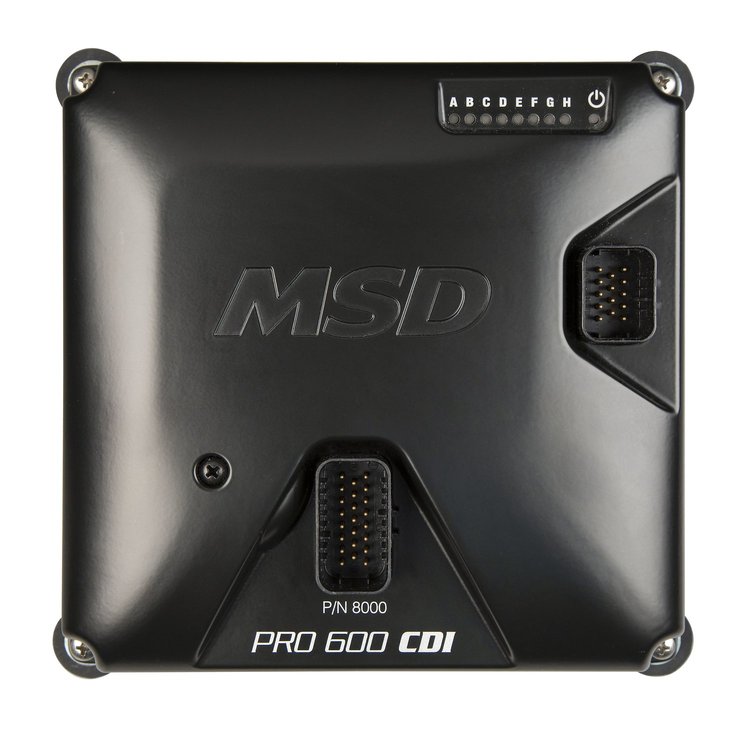

8000 PRO 600 8-Channel Capacitive Discharge Ignition (CDI) for 4, 6, & 8-Cylinder Coil-per-Plug Engines
InfoVehicle Info Needed
MSD IGNITIONPART NUMBER: 121-8000

8000 PRO 600 8-Channel Capacitive Discharge Ignition (CDI) for 4, 6, & 8-Cylinder Coil-per-Plug Engines

$2,14995
1 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

8-Channel
PRO 600 8-Channel Capacitive Discharge Ignition (CDI)
  • Fits Most 4, 6, & 8-Cylinder Coil-per-Plug Engines
  • Works with Holley and Other Aftermarket EFI Systems, Including 5V or 12V Drivers
  • Continuous 600 mJ Operation
  • Includes Wiring Harness

  • MSD 8000 Features:

    • Eight outputs of up to 680 mJ of energy
    • All necessary wiring harnesses included
    • Continuous 600 mJ operation without risk of failure from overheating
    • High-efficiency Alternating Current (AC) power delivery means less voltage draw from your battery or charging system
    • Over 50 Kilovolts output voltage when used with MSD suggested coils
    • Spark duration of greater than 300 microseconds
    • 6 Volts minimum required for starting and running
  • Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

      High-Output Ignition Spark Energy for Racing Applications

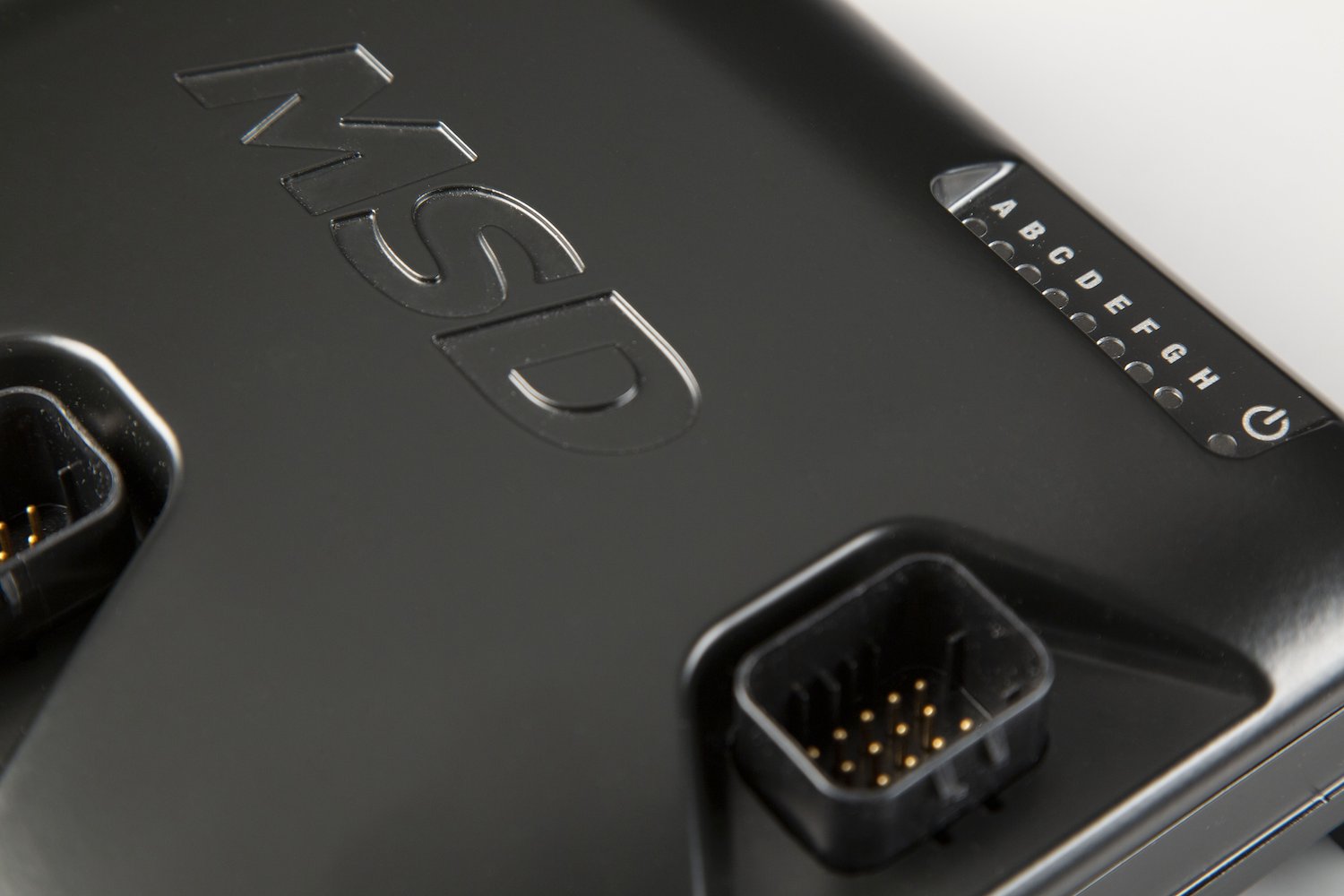

      MSD PRO 600 Ignition Boxes deliver exceptional spark energy for extreme racing applications and can continuously run at a power level of up to 600 milli-Joules (mJ). They feature built-in reverse battery and high-temp protection, along with LED diagnostics capable of identifying individual coil issues in the event of a problem. Programmable power settings between low and high power operations provide "on-the-fly" performance in any street or off-road adventure you encounter.

    Part TypeIgnition Box
    Product LineMSD PRO 600 Ignition Boxes
    BrandMSD IGNITION
    Package Height4.3
    Package Width9.6
    Package Length12.9
    Weight7.95 PG
    Part CategoryPerformance Parts
    Wiring Harness IncludedYes
    Current Draw3 Amps per 1,000 RPM
    QuantitySold individually
    Spark Output (Millijoules)680 mJ Max
    Compatible With Multiple Coil IgnitionsYes
    Rpm10000
    Coil IncludedNo
    Minimum Operating Voltage6 V
    Ignition Box OutputCapacitive discharge
    Part FitmentSemi Universal
    Ignition Box ColorBlack
    Maximum Operating Voltage22 V
    Vendor Part Number8000
    Package Qty1
    Package TypeEA
