Digital 6AL-2 Ignition Control Kit for Chevy

Vehicle Info Needed

MSD IGNITIONPART NUMBER: 121-64213K

Digital 6AL-2 Ignition Control Kit for Chevy

Name: Digital 6AL-2 Ignition Control Kit for Chevy
Brand: MSD IGNITION
SKU: 121-64213K
Price: 1020.16 USD
Availability: InStock

^$1,020¹⁶

Ships Tomorrow

Lowest Price Guarantee

Performance

Small Block Chevy
Big Block Chevy
Black

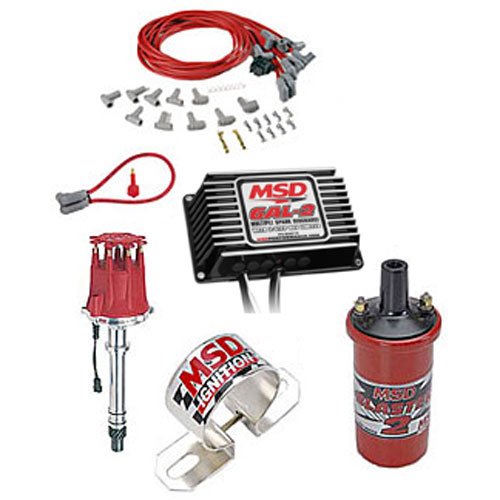

Includes:
Digital 6AL-2 Ignition Control
Pro-Billet Distributor
Blaster 2 Coil
Coil Mounting Bracket
Red Universal 8.5mm Wire Set

Operating Specifications
Specifications:
Current Draw: .7 Amp per 1,000 RPM
535 Volts
12,500 RPM with 14.4 Volts
Secondary Voltage: 45,000 Volts
20 degree Crankshaft Rotation
12-18 Volts, Negative Ground
3 lbs.
7"L x 4"W x 2"H
Kit Includes
Digital 6AL-2 Ignition Control 121-64213
Pro-Billet Distributor 121-85551
Blaster 2 Coil 121-8202
Coil Mounting Bracket 121-8213
Red Universal 8.5mm Wire Set 121-31229
Coil Wire 121-84039

Part TypeIgnition Boxes Easy Kit

BrandMSD IGNITION

Package Height6 in (152.4 mm)

Primary Resistance0.700 ohms

Housing FinishNatural

Housing Materialbillet aluminum

Ignition Box RequiredYes

Spark Plug Boot EndsEight 90 degree

Coil Boot MaterialSilicone

Peak Current140 mA

Computer-Controlled CompatibleNo

Rfi SuppressionYes

Gear MaterialIron

Coil Internal ConstructionOil-filled

Terminals IncludedYes

Advance TypeMechanical

Diameter (Mm)8.5

Distributor Boot MaterialSilicone

Marine UseNo

Coil StyleCanister

PositionN/A

ColorRed

Wire ColorRed

Ballast Resistor IncludedNo

Coil Boot ColorGray

Coil Wire Boot Ends90 degree

Spark Plug Boot MaterialSilicone

Coil Wire IncludedNo

Trigger StyleMagnetic

Coil Plug EndsMale/HEI

Part CategoryPerformance Parts

Hardware IncludedNo

Carb Eo NumberD-40-37 (pdf)

Distributor TypeHEI/Breakerless

AssembledNo

Engine Make/SizeChevy Small Block (262-400)

Turns Ratio100:1

Spark Plug Boot ColorGray

Mounting Bracket IncludedNo

Inductance8.0 mH

Distributor Terminal EndsMale/HEI

Distributor Boot ColorGray

Coil Wire Length18 in (457.2 mm)

Secondary Resistance4.70K ohms

Slip CollarNo

Mechanical Tach DriveNo

Bracket MaterialSteel

Diameter2.125 in (53.975 mm)

Boot Type90 Degree

Coil Wire AttachmentFemale/Socket

Distributor Cap ColorRed

QuantitySold as a set

Maximum Voltage45,000 V

Coil ShapeRound

Coil ColorRed

Spark Duration350 uS

Distributor Gear RotationStandard

Conductor StyleSpiral core

Cap StyleMale/HEI

Part FitmentUniversal

Bracket FinishChrome

Package Qty1

Package TypeEA
