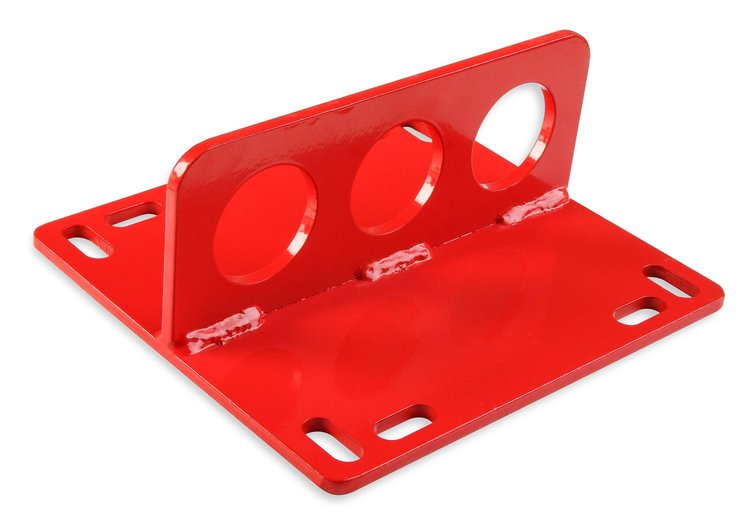

Engine Lift Plate for GM LS Valley Covers and Holley 2300/4150/4160 Manifolds [1000 lb.]
InfoVehicle Info Needed
MR GASKETPART NUMBER: 720-33028G

Engine Lift Plate for GM LS Valley Covers and Holley 2300/4150/4160 Manifolds [1000 lb.]

$4030
3 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Engine Lift Plate
  • All GM LS Engines with 10 or 11 Bolt Valley Covers
  • Also Fits Holley 2300, 4150 and 4160 Intake Manifolds
  • Three Lift Holes to Adjust Engine Balance
  • 1000 lb. Capacity
  • 3/16 in. Thick Steel
  • Red Powder Coated

    An LS with the intake off has nothing obvious to lift from, and the valley cover bolt pattern is the strongest thing left. This plate bolts straight to it, and moving the hook between the three lift holes lets you tip the engine nose up or down to clear the crossmember on the way out.

    Mr. Gasket 33028G Engine Lift Plate Features:

    • Fits all GM LS engines with 10 or 11 bolt valley covers, with the intake manifold removed.
    • Also fits Holley 2300 2-barrel and 4150 and 4160 4-barrel intake manifolds.
    • Three lift holes allow the plate to be mounted in several positions to adjust engine balance.
    • 1000 lb. capacity.
    • 3/16 in. thick steel construction with a red powder coated finish.

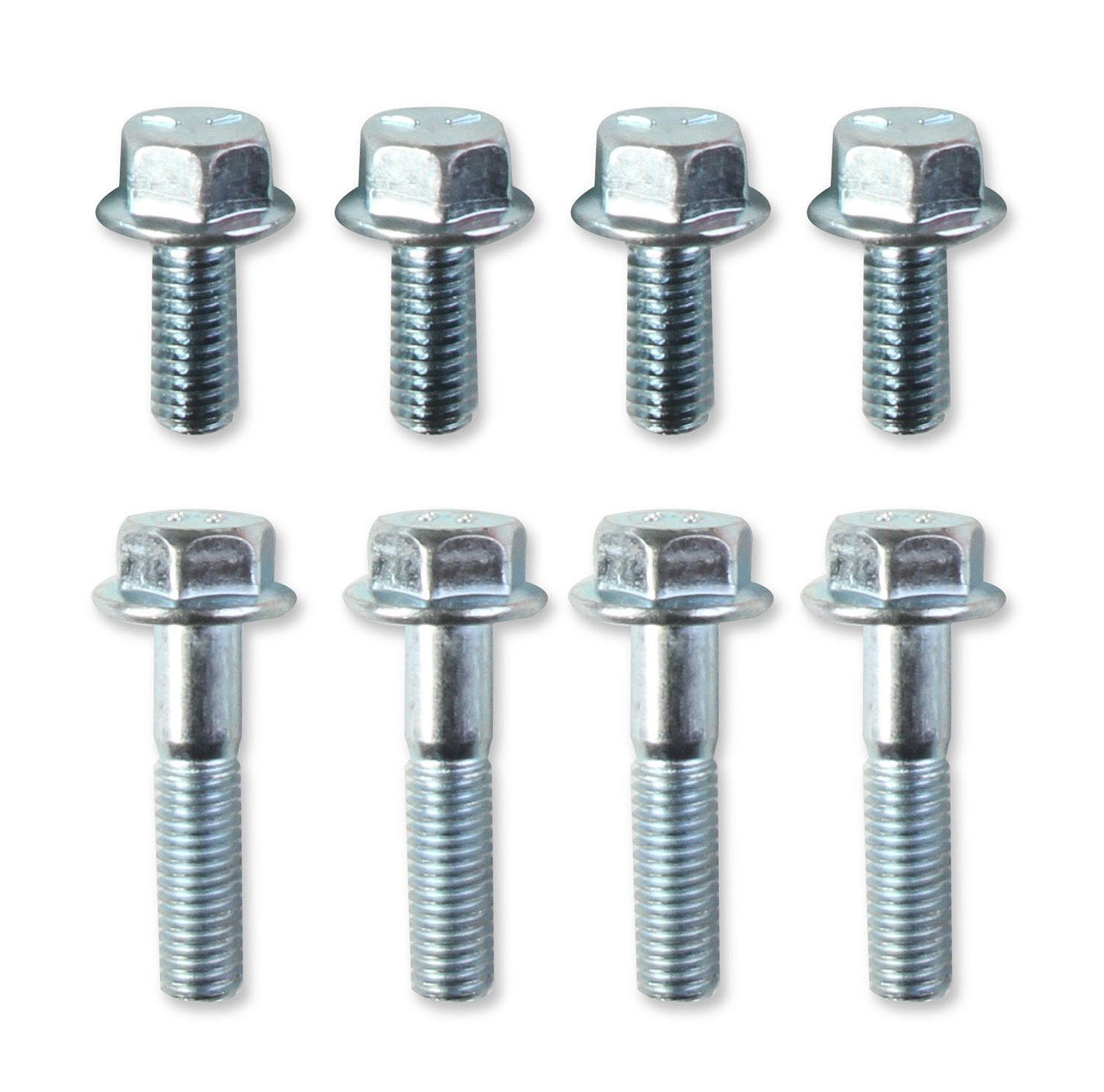

    • Includes four 8 mm x 1.25 Grade 8.8 bolts and four 5/16 in.-18 Grade 5 bolts.
  • Part TypeEngine Lift Plate
    BrandMR GASKET
    Package Height3.0
    Package Width6.6
    Package Length8.0
    Weight3.21 PG
    Part CategoryAccessories
    Thickness3/16 in
    ColorRed
    QuantitySold Individually
    Mounting Hardware IncludedYes
    MaterialSteel
    Part FitmentUniversal
    FinishRed Powder Coated
    Vendor Part Number33028G
    Package Qty1
    Package TypeEA
