Vehicle Info NeededMOROSOPART NUMBER: 710-20506

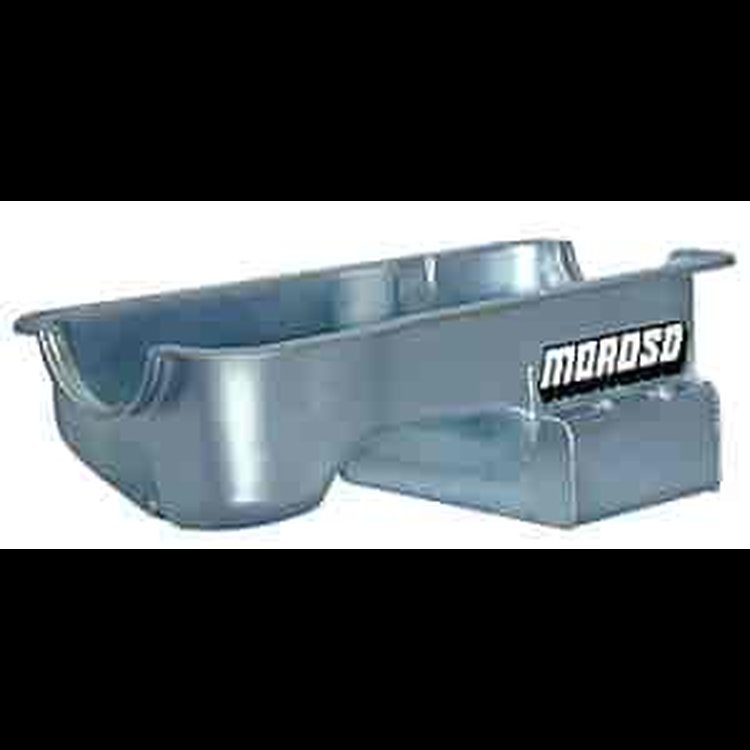

Street/Strip Oil Pan Ford 289-302
$42999
Ships Tomorrow
Lowest Price GuaranteeSmall Block Ford
Street/Strip Oil PanFord 289-302 Fits Ford rear sump applications (Except Mustang II) Rear Wet Sump 7-quart capacity 7.5" Depth Clear Zinc finish
- Kicked-out sump design increases oil capacity without restricting ground clearance
- Will clear 289-302 4-Bolt center main caps
- Will not clear 289-302 4-Bolt front and rear main caps
- Engineered to supply oil to sump at all times
- Oil retaining baffle system
- For use with factory style one-piece rear sump gasket
- Compatible with most starter/flywheel combinations
Note: Oil pan capacities do not include oil filter capacity
Recommended Pickup:
- 710-24517 -- Fits Melling 689-M68 or 689-M68HV Pump
- 710-24518 -- Fits same pumps as above with Moroso Main Cap Girdle 710-22928
Applications:
- 1979-95 Ford Mustang
- 1981-88 Ford Thunderbird & Mercury Cougar
- 1979-86 Mercury Capri
Part TypeOil Pan
BrandMOROSO
Package Height9.9
Package Width17.5
Package Length25.7
Weight16.8 PG
Part CategoryPerformance Parts
Oil Pan Capacity7 quarts
Hardware IncludedNo
Dipstick ProvisionYes
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishClear zinc
Kickout PositionDriver and passenger side
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod3.5 in (88.9 mm)
Gaskets IncludedNo
Oil Pan Depth7.5 in (190.5 mm)
Sump LocationDual sump
Crank Scraper IncludedNo
Windage Tray IncludedNo
Dipstick LocationDriver
Part FitmentDirect Fit
Kicked OutYes
Stroker ClearancedYes
Vendor Part Number20506
Package Qty1
Package TypeEA
