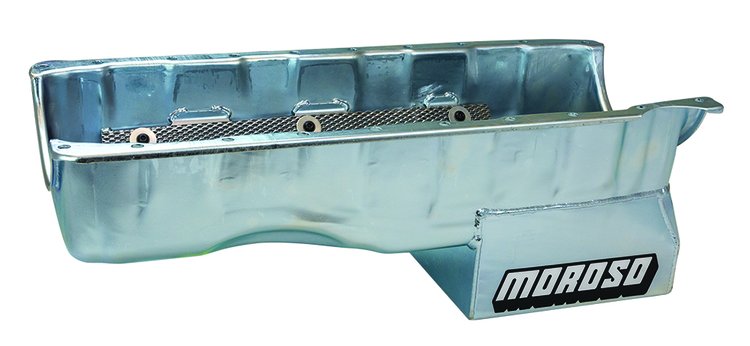

Street/Strip Oil Pan Big Block Chevy Gen V & VI
InfoVehicle Info Needed
MOROSOPART NUMBER: 710-20414

Street/Strip Oil Pan Big Block Chevy Gen V & VI

$47199
1 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Big Block Chevy
Street/Strip Oil Pan
  • Big Block Chevy Gen V/Gen VI
  • 6.5 Quart Capacity Wet Sump
  • 8 in. Deep
  • Sold Individually

    Moroso 20414 Features:

    • Steel pan with an 8.75 in. sump length
    • Flat side sump to provide extra header clearance
    • Accepts up to a 4.375 in. stroke
    • Uni-directional windage tray to save horsepower
    • The trap door and anti-climb baffling provide better oil control under hard acceleration and deceleration
    • Fits most GM chassis except 1962-1967 Chevy II, V-8 Vega/Monza, and 1955-1957 Chevy

    Note: Oil pan capacities do not include the oil filter capacity

      • High-Performance Oil Pans

      Moroso Street/Strip Oil Pans are for street-performance vehicles that occasionally see track time. Some tanks are modified with either a deep or a kicked-out sump for increased capacity to improve oil control under hard acceleration and help the engine run cooler. Moroso has designed these oil pans for simple bolt-on installation in a production chassis.

    Part TypeOil Pan
    Product LineMoroso Street/Strip Oil Pans
    BrandMOROSO
    Package Height11.0
    Package Width16.0
    Package Length30.0
    Weight15.0 PG
    Part CategoryPerformance Parts
    Oil Pan Capacity6 1/2 quarts
    UsageStreet/Strip
    ConstructionSteel
    BaffledYes
    Sump StyleWet
    QuantitySold individually
    Bolts/Studs IncludedNo
    Drain Plug IncludedYes
    Depth8 in (203.2 mm)
    Gaskets IncludedNo
    Engine ManufacturerChevrolet
    Windage Tray IncludedYes
    Part FitmentDirect Fit
    Vendor Part Number20414
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
