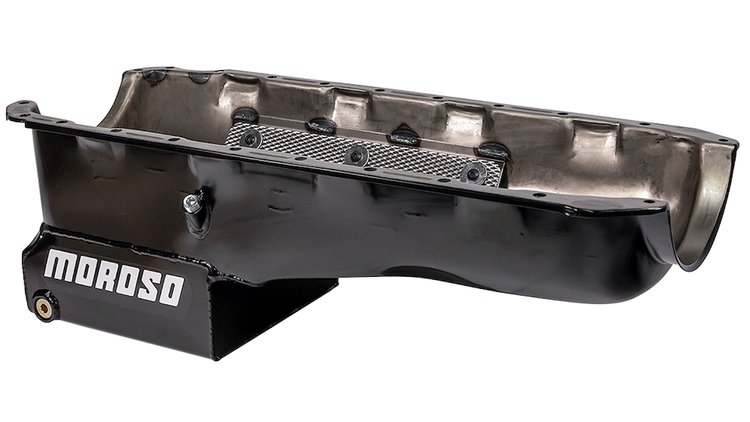

Street/Strip Oil Pan Big Block Chevy Mark IV
InfoVehicle Info Needed
MOROSOPART NUMBER: 710-20408

Street/Strip Oil Pan Big Block Chevy Mark IV

$46216
ShippingShips on Nov 03, 2026
Lowest PriceLowest Price Guarantee
Currently Unavailable

This product is currently not available. Please call customer service for assistance at 1-800-345-4545.

Big Block Chevy
Street/Strip Oil Pan
  • Big Block Chevy Mark IV
  • Deep Sump
  • Wet Sump 6.5-quart capacity
  • 8" Depth
  • Black Finish

    • Fits most chassis except 1962-67 Chevy II, V8 Vega/Monza and 1955-57 Chevy
    • Notched pan rails accept strokes up to 4.250 in. w/ steel rods, 4.090 in. w/ aluminum rods
    • Designed with a sump that has flat sides to alleviate header clearance problems with some exhaust header brands
    • Features a crank scraper and uni-directional windage tray for horsepower
    • Trap door baffling and an anti-climb baffle for improved oil control under acceleration and decceleration

    Note: Oil pan capacities do not include oil filter capacity

    Recommended Pickups:

    • 710-24440 -- Fits Moroso Big Block Chevy Race pump 710-22150, 710-22160 or 710-22162 and Standard or Hi-Volume Stock Oil Pumps
    • 710-24441 -- Fits Same Pumps as above but is offset to middle of sump for more consistent oil pressure
    • Part TypeOil Pan
    BrandMOROSO
    Package Height12.0
    Package Width12.5
    Package Length26.5
    Weight18.0 PG
    Part CategoryPerformance Parts
    Oil Pan Capacity6 1/2 quarts
    Hardware IncludedNo
    Dipstick ProvisionYes
    BaffledYes
    Sump StyleWet
    Pickup IncludedNo
    Drain Plug Thread Size (In.)1/2-20
    QuantitySold individually
    Oil Pan FinishBlack
    Oil Pan MaterialSteel
    Maximum Stroke With Oe Rod4.5 in (114.3 mm)
    Gaskets IncludedNo
    Oil Pan Depth8 in (203.2 mm)
    Rear Main Seal Style2-piece
    Sump LocationRear
    Crank Scraper IncludedNo
    Windage Tray IncludedNo
    Dipstick LocationPassenger side
    Part FitmentDirect Fit
    Kicked OutNo
    Stroker ClearancedYes
    Vendor Part Number20408
    Package Qty1
    Package TypeEA
