Vehicle Info NeededMOROSOPART NUMBER: 710-20405

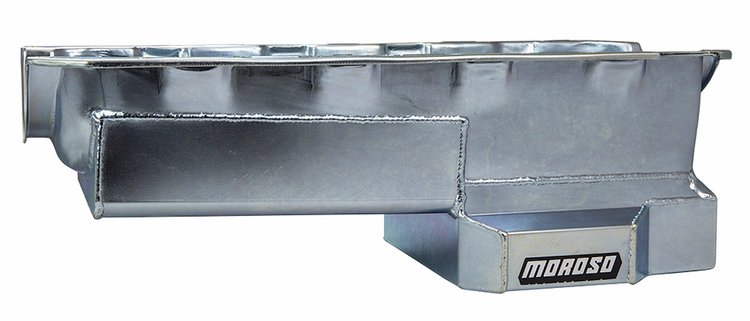

20405 Drag Race Oil Pan Fits most Chassis(may require cross-member modification)
$44099
Ships Tomorrow
Lowest Price GuaranteeGM
- Drag Race Oil Pan
- Big Block Chevy Mark IV
- Fits most Chassis (may require cross-member modification)
- Kicked-Out Sump
- Wet Sump
- 6-Quart Capacity
- 8" Depth
- Clear Zinc-Plated Steel
Recommended Pickups: - 710-24440 Fits Moroso Big Block Chevy Race pump 710-22150, 710-22160 or 710-22162 and Standard or Hi-Volume Stock Oil Pumps
- 710-24441 Fits Same Pumps as above but is offset to middle of sump for more consistent oil pressureOil Pump/Pickup Packages:
- 710-22175 Moroso Standard Volume
- 710-22185 Moroso Hi-Volume
- 710-22186 Moroso Hi-Volume (with offset pickup)Features:
- Accepts strokes up to 4.625" with steel rods
- Accepts 4.250" stroke with aluminum rods
- Kicked-out sump provides additional ground clearance
- Trap door baffling for improved oil control
- Compatible with most starter/flywheel combinations
Note: Oil pan capacities do not include oil filter capacity
Part TypeOil Pan
BrandMOROSO
Package Height11.5
Package Width12.0
Package Length26.0
Weight15.25 PG
Part CategoryPerformance Parts
Oil Pan Capacity6 quarts
Hardware IncludedNo
Dipstick ProvisionYes
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishClear zinc
Kickout PositionDriver and passenger side
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod4.625 in (117.475 mm)
Gaskets IncludedNo
Oil Pan Depth8 in (203.2 mm)
Rear Main Seal Style2-piece
Sump LocationRear
Crank Scraper IncludedNo
Windage Tray IncludedNo
Dipstick LocationPassenger side
Part FitmentSemi Universal
Kicked OutYes
Stroker ClearancedYes
Vendor Part Number20405
Package Qty1
Package TypeEA
