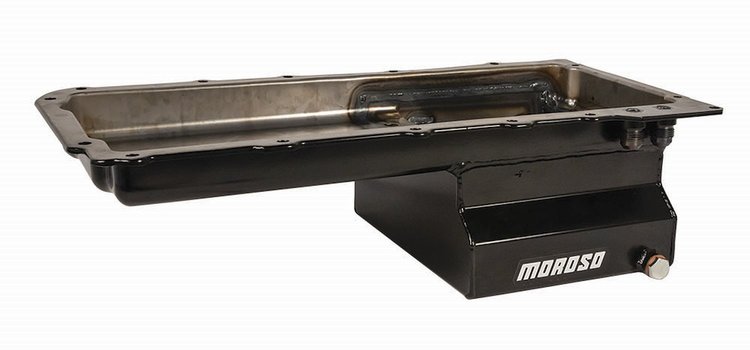

Street/Strip Oil Pan Fits Mulitple GM Swap Applications
InfoVehicle Info Needed
MOROSOPART NUMBER: 710-20140

Street/Strip Oil Pan Fits Mulitple GM Swap Applications

$42499
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee
Best Value
Save
$18500
Street & Strip GM LS Engine Swap Oil Pan for GM LS Series Engines

555-50228

Street & Strip GM LS Engine Swap Oil Pan for GM LS Series Engines

$23999

GM LS Series
Street/Strip Oil Pan
  • Fits Multiple GM Swap Applications
  • GM LS Series
  • Wet Sump 7-quart capacity
  • 6" Depth
  • Black Finish

    • Trap-door baffling for improved oil control
    • -10AN fittings for remote filter
    • Use Stock Dipstick

    Notes:

    • Front fitting is pressure and rear is return
    • Oil pan capacities do not include oil filter capacity

    Applications:

    • 1968-1972 Nova
    • 1965-1972 Chevelle
    • 1967-1969 Camaro
    • Can be used in additional applications(check dimensions for clearance)

    Recommended Pickups:

    • Part TypeOil Pan
    BrandMOROSO
    Package Height11.4
    Package Width12.7
    Package Length26.2
    Weight15.1 PG
    Part CategoryPerformance Parts
    Oil Pan Capacity7 quarts
    Hardware IncludedNo
    Dipstick ProvisionNo
    BaffledYes
    Sump StyleWet
    Pickup IncludedNo
    Drain Plug Thread Size (In.)1/2-20
    QuantitySold individually
    Oil Pan FinishBlack painted
    Kickout PositionDriver and passenger side
    Oil Pan MaterialSteel
    Maximum Stroke With Oe Rod4.125 in (104.775 mm)
    Gaskets IncludedNo

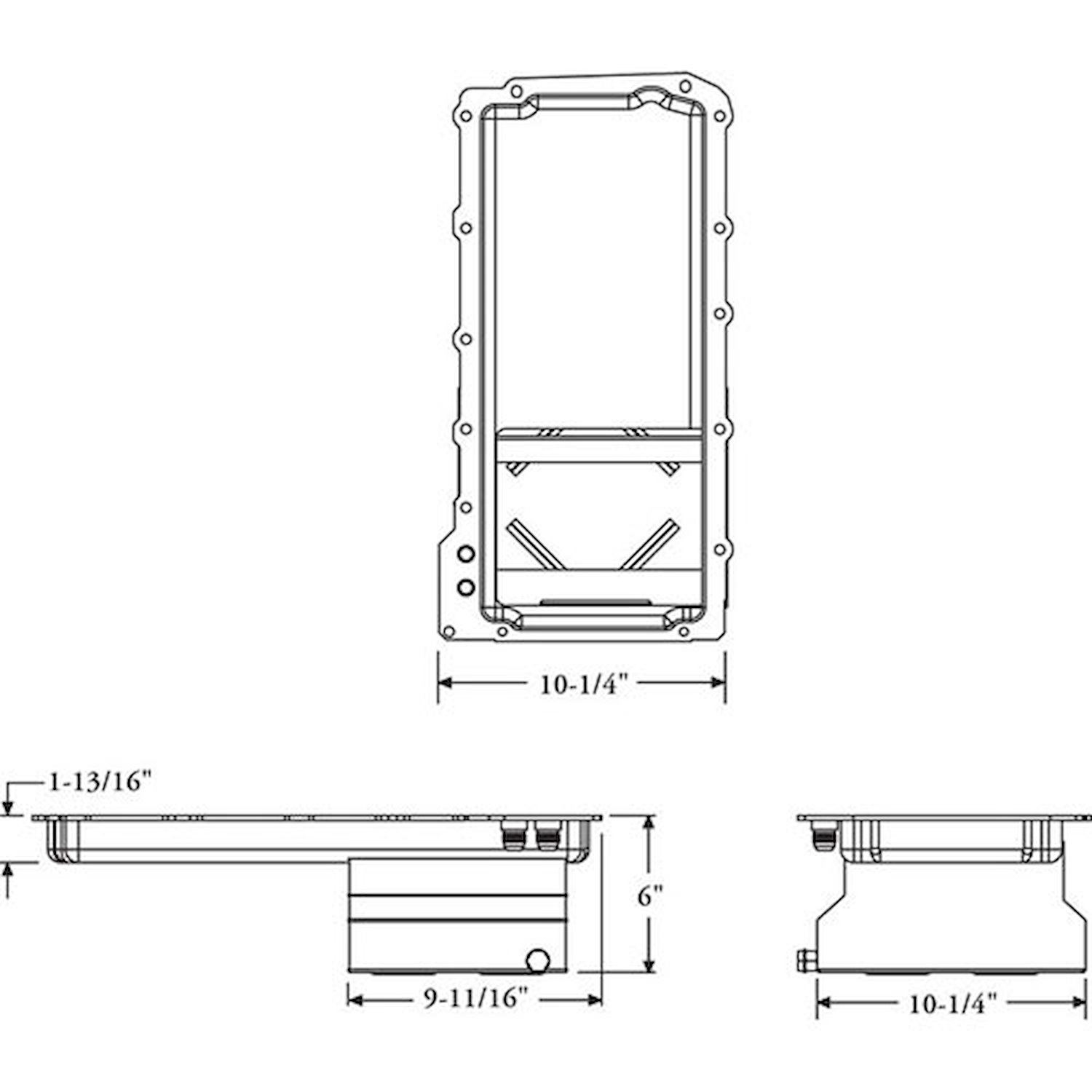

    Oil Pan Depth6 in (152.4 mm)
    Rear Main Seal Style1-piece
    Sump LocationRear
    Crank Scraper IncludedNo
    Windage Tray IncludedNo
    Part FitmentDirect Fit
    Kicked OutYes
    Stroker ClearancedYes
    Vendor Part Number20140
    Package Qty1
    Package TypeEA
