Vehicle Info NeededMILODONPART NUMBER: 697-31310

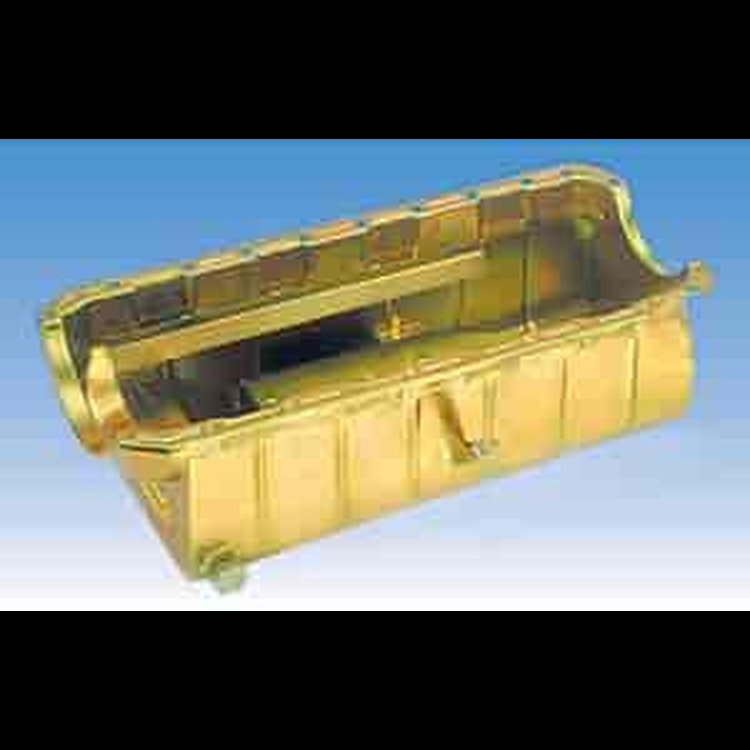

V-Drive Oil Pan Big Block Chevy Mark IV 65-90
$69995
4 left in stock
Ships Today
Lowest Price GuaranteeV-Drive (Flywheel Forward)
- V-Drive Oil Pan
- Big Block Chevy Mark IV 65-90
- 9 Quarts & Filter
- 8'' Sump Depth
For recreational to competition boats with engine is installed flywheel forward. Pan is double baffled with a full length windage tray which provides maximum power while controlling oil movement even during severe boat handling. Also features a water tight dipstick and large 12AN oil drain suitable for installing an external oil drain line. Built from extra heavy 16 gauge material to handle harsh marine environment and extreme use. With most aluminum rods, pan will fit up to a 4-1/2' stroke without modification.Pan Capacity is 9 Qts. Plus Filter -
Requires:
8' Deep in Front, 7' Deep in Rear of Motor - HV Oil Pump p/n 697-18760
- Oil Pump Pickup p/n 697-18475
Milodon's Marine Oil Pans are specially designed for marine applications, available for Flywheel Aft and Flywheel Forward installations. These marine pans are fully baffled, trap-doored and include full length windage trays for maximum performance and oil control under severe boat handling. Pans are made from extra heavy 16 gauge steel to withstand harsh marine conditions and extreme use. A large 12AN oil drain is suitable for installing external oil drain line.
Show More
Features:
- For Flywheel Aft and Flywheel Forward
- Fully baffled, trap-doored and include full length windage trays
- Extra heavy 16 gauge steel
- Large 12AN oil drain
- 8 quart plus filter oil capacities
Part TypeOil Pan
Product LineMilodon Marine Oil Pans
BrandMILODON
Package Height9.0
Package Width12.4
Package Length25.5
Weight16.6 PG
Part CategoryPerformance Parts
Oil Pan Capacity9 quarts
Drain Plug Thread Size-12 AN
Hardware IncludedNo
Dipstick ProvisionYes
BaffledYes
Sump StyleWet
Pickup IncludedNo
QuantitySold individually
Oil Pan FinishGold iridited
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod4.5 in (114.3 mm)
Gaskets IncludedNo
Oil Pan Depth8 in (203.2 mm)
Rear Main Seal Style2-piece
Sump LocationFull
Crank Scraper IncludedYes
Windage Tray IncludedYes
Dipstick LocationPassenger side
Part FitmentSemi Universal
Kicked OutNo
Stroker ClearancedYes
Vendor Part Number31310
Package Qty1
Package TypeEA
