Made in USA

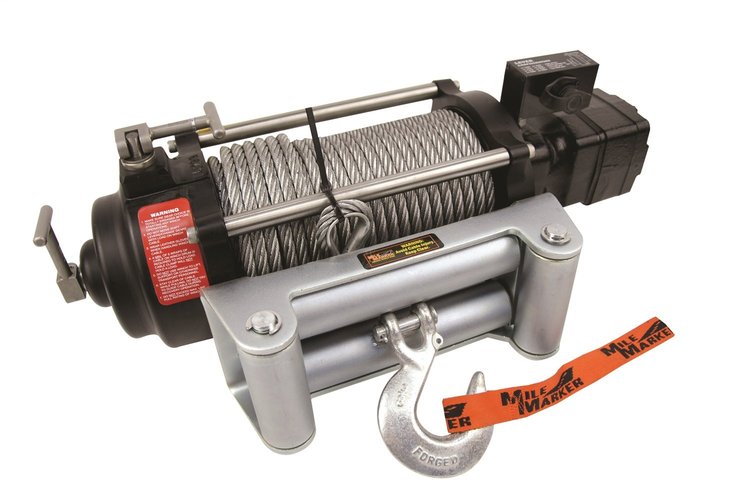

HI10500 Hydraulic Winch 10,500 lb Capacity
InfoVehicle Info Needed
MILE MARKERPART NUMBER: 694-75-50050C

HI10500 Hydraulic Winch 10,500 lb Capacity

$2,42910$2699.00You Save$269.90
ShippingShips on Sep 15, 2026
Lowest PriceLowest Price Guarantee

    HI10500 Hydraulic Winch
  • 10,500 lb Capacity
  • Motor: 17.9 cubic inch
  • Net weight: 103 lbs

    NOTE: Requires Valve Adapter Kit to Install
  • Mounts To Front Of Vehicle
  • Can Be Permanent Or Detachable
  • Free spooling; Mechanical Lock
  • Sealed Against Elements; Can Be Used Under Water
  • Corrosion Resistant
  • Stainless Steel Tie Bars And Fasteners
  • Reversible Mounting
  • Limited Warranty

The Mile Marker HI Series Hydraulic Winch is intended for permanent mounting in the front or rear of a vehicle. The solenoid control valve is integrated into the winch body, and therefore always remains in the same location as the winch itself. These systems include all necessary hoses, solenoid control valve, remote control, roller fairlead with fasteners, and winch cable. To adapt to your vehicle's power steering pump, the HI Series winches (HI9000, HI10500, and HI12000) require a vehicle specific 35-series vehicle adapter kit.

Show More
  • Power Steering Pump Powered
  • Integrated Solenoid Valve
  • 100% Duty Cycle
  • Submersible
  • 2 Speed
  • Mechanical Lock
  • Freespooling
  • Corrosion Resistant
  • Stainless Steel Tie Bars and Fasteners
  • 100 Feet Galvanized Aircraft Cable
  • Reversible Mounting on 3 Sides (H12000 Only)
  • Ductile Iron Body (H12000 Only)
  • Gear Train: Planetary
  • Gear Ratio: 6:1
  • Control Pendant: Illuminated Joystick Remote, 12'
  • Cable: 3/8'' x 100' (nominal 14,400 lbs)
  • Drum Size: 2.5'' x 9''
  • Bolt Pattern: 4 Bolt, 4.5'' x 10''
  • Power Steering Min. Requirements: 3.5 GPM @ 1500 psi
Part TypeWinch
Product LineMile Marker HI Series Hydraulic Winches
BrandMILE MARKER
Package Height10.0
Package Width15.0
Package Length29.0
Weight97.0 PG
Part CategoryAccessories
TypeAutomotive
Voltage12 DC
Rated Single Line Pull (Lbs.)10000
Part FitmentDirect Fit
Vendor Part Number75-50050C
Package Qty1
Package TypeEA
