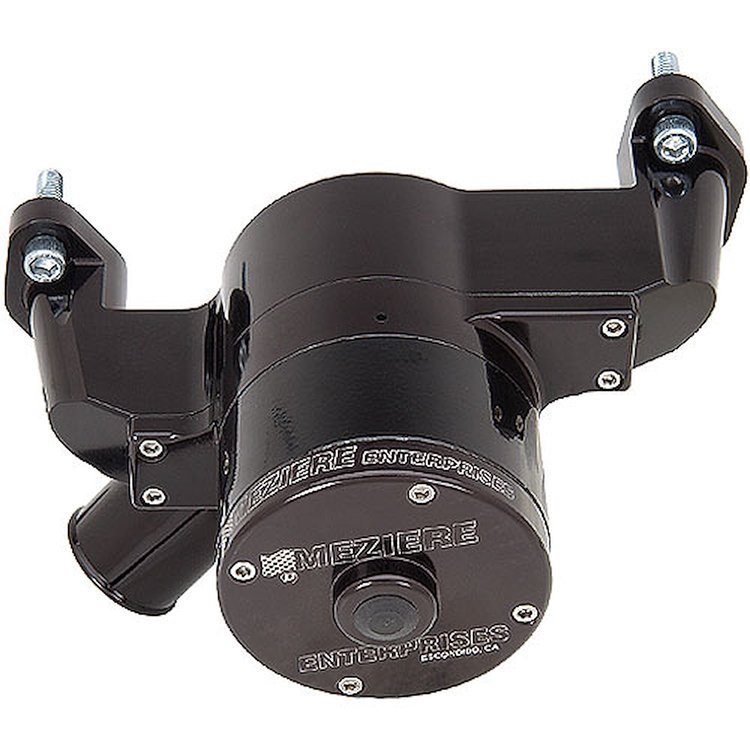

WP301S 300-Series Electric Water Pump for Small Block Chevy, 55 GPM [Black Anodized]

Vehicle Info Needed

MEZIEREPART NUMBER: 680-WP301S

WP301S 300-Series Electric Water Pump for Small Block Chevy, 55 GPM [Black Anodized]

Name: WP301S 300-Series Electric Water Pump for Small Block Chevy, 55 GPM [Black Anodized]
Brand: MEZIERE
SKU: 680-WP301S
Price: 600.19 USD
Availability: InStock

^$600¹⁹

6 left in stock

Ships Tomorrow

Lowest Price Guarantee

Best Value

Save
^$272²⁰

555-50900

Electric Water Pump for Small Block Chevy [50 GPM, Clear Anodized]

^$327⁹⁹

Chevy - Small Block

300-Series Electric Water Pump

Small Block Chevy

55 GPM

Black Anodized Finish

Meziere WP301S Includes:

(1) Electric Pump WP301
(4) 3/8-16 x 1.25 in. Long SSSHCS Bolts
(4) 3/8 in. AN Flat Washers
(2) Flange Gaskets WPG100
(1) Wiring harness w/20 amp fuse
(2) Contingency Decals

Meziere WP301S Features:

The Meziere 300 series high flow pump changed the rules about using electric water pumps on high horsepower street, nitrous, blown, or boosted engines. Delivering 55 gallons per minute of flow, the 300 series pump offers great cooling solutions to high-horsepower vehicles. Higher flow rates reduce the chance of detonation.

Fits Small Block Chevrolet

Suitable for street or drag strip use - 3000+ hour life expectancy

Show quality finish

High flow design provides 55 gallons per minute free flow rating

All stainless steel hardware included

Lightweight. The complete small block Chevy unit weighs only 7.4 pounds!

Stainless steel large diameter main shaft with high-performance ceramic seal

The pump will clear cam belt drives and most blower drives

Welded 1-3/4' inlet connection

Technical Specifications:

Belt Drives: Standard SBC design will clear Jessel belt drives and comparable belt drive systems.

Distributer Belt Drives: Spacers will be necessary to clear belt drive distributor systems.

Finishing The System: This pump is supplied complete with gaskets and hardware. No additional items should be necessary for standard installations.

Amperage draw: Under normal use, the pump will draw 11-12 amps.

Overall Height Dimension: The standard pump is 7.28' long from the mounting surface to the tip of the pump.

Pump Weight: This application weighs 7.4 lbs.

Meziere WP301S Notes:

The standard 35 GPM pump is suitable for normally aspirated engines up to 650HP. Supercharged, turbocharged, and high compression, high horsepower applications should use the 55GPM High Flow pump only. This model does not accept heaters or bypass hoses as a standard. A single-ported version of this pump is available at no additional cost.

Meziere WP301S Electric Water Pump FAQs

FAQ:

How many amps does a Meziere electric water pump draw?

The Meziere 300 electric water pump typically draws around 11-12 amps, ensuring efficient and reliable performance.

What is the GPM of a small block Chevy water pump?

The Meziere water pump for SBC delivers an impressive flow rate, with GPM varying based on specific models and applications. Check product details for accurate information.

How do I choose an electric water pump?

Select the ideal Meziere water pump for your small block Chevy by considering factors like GPM requirements, application, and specific features such as the Meziere 300 electric water pump for optimal performance.

Part TypeWater Pump

BrandMEZIERE

Package Height6.4

Package Width7.8

Package Length12.6

Weight8.15 PG

Weight7 lb (3.175 kg)

Part CategoryPerformance Parts

Pump MaterialAluminum

Inlet Hose Size1.75 in (44.45 mm)

Hose Adapter IncludedNo

Overall Depth7.28 in (184.9 mm)
