Vehicle Info NeededMEZIEREPART NUMBER: 680-WP170SHD

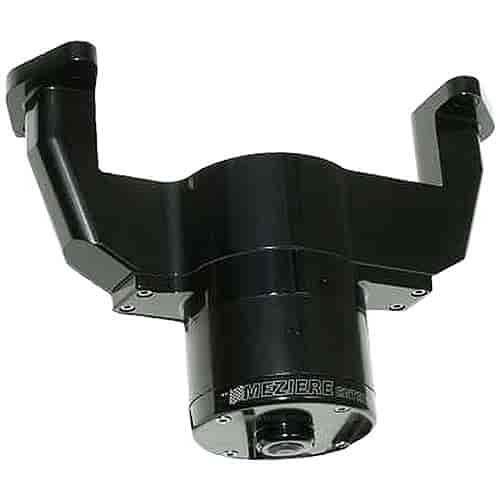

100 Series Electric Water Pump Ford FE
$63422
Ships on Sep 16, 2026
Lowest Price Guarantee- 100 Series Electric Water Pump
- Ford FE
- 42 GPM
- Heavy Duty Motor
- Black Anodized Finish
Never to leave the odd man out, this pump will more than cool your hard working 'FE' Ford engine. Features a drivers side inlet. Inlet fitting WP2175 recommended.
Features: - Fits big block Ford FE style engine 352/390/406/427/428ci
- Suitable for street or drag strip use - 3000+ hour life expectancy
- Show quality finish
- Heavy duty motor provides 42 gallons per minute free flow rating
- All stainless steel hardware included
- Light weight. Complete heavy duty FE unit weighs only 6.7 pounds!
- Stainless steel large diameter main shaft with high performance ceramic seal
- Pump will clear cam belt drives and most blower drives
- 1' NPT inlet adapters are available for #12AN, #16AN, #20AN, 1-1/4', 1-1/2' or 1-3/4' slip hose
Technical Specifications: - Belt Drives: Standard FE design will clear Jessel belt drives and comparable belt drive systems.
- Distributer Belt Drives: Spacers will be necessary to clear belt drive distributor systems.
- Finishing The System: This pump is supplied complete with gaskets and hardware but without the inlet fitting. The fitting needs to be ordered according to the size of the lower radiator hose. **An extended fitting is recommended for this application.
- Amperage draw: Under normal use the pump will draw 6-7 amps.
- Overall Height Dimension: The heavy duty pump is 7.93' long from the mounting surface to the tip of the pump.
- Pump Weight: This application weighs 6.7 lbs.
Additional Notes: The heavy duty 42GPM pump is suitable for normally aspirated engines up to 650HP. Supercharged, turbocharged and high compression, high horsepower applications should use the 55GPM High Flow pump only. This model does not accept heater or bypass hoses as a standard.
Part TypeWater Pump
BrandMEZIERE
Package Height7.6
Package Width9.2
Package Length12.3
Weight9.21 PG
Weight7.6 lb (3.447 kg)
Part CategoryPerformance Parts
Pump MaterialAluminum
Hose Adapter RequiredYes
Amp Draw8.00 amps
Hose Adapter IncludedNo
Overall Depth7.93 in (201.4 mm)
QuantitySold individually
Hose Adapter Thread Size (In.)1 NPT
Part FitmentSemi Universal
Flow Rate @ 12 Volts (Gpm)42 GPM
Pump FinishBlack anodized
Vendor Part NumberWP170SHD
Package Qty1
Package TypeEA
