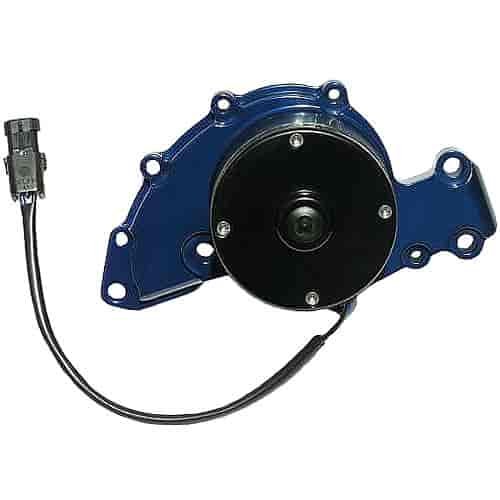

100 Series Electric Water Pump Chevy/GM 3.8L V6

Name: 100 Series Electric Water Pump Chevy/GM 3.8L V6
Brand: MEZIERE
SKU: 680-WP140BHD
Price: 505.24 USD
Availability: InStock

^$505²⁴

Ships on Sep 16, 2026

Lowest Price Guarantee

Chevy - 3.8L V6

100 Series Electric Water Pump

The performance enthusiasts driving and racing the powerful GM 3800 demanded better cooling, Meziere brings the compact and lightweight solution. Not only do drivers enjoy better cooling and less parasitic loss, which equals more horsepower, the WP140 has a clean billet look for a custom engine compartment. This pump fits GM 3800 engines 1997-2006. No modification required. Installation does require a 4' shorter belt. 1997-98 use Gates p/n K060895 belt, for 1999-later use Gates p/n K060875 belt.

Features:

Fits GM 3.8 liter V6

Suitable for street or drag strip use - 3000+ hour life expectancy

Show quality polished finish

Heavy duty motor provides 42 gallons per minute free flow rating

All stainless steel hardware included

Light weight. Complete heavy duty GM 3.8L unit weighs only 4.2 pounds!

Stainless steel large diameter main shaft with high performance ceramic seal

Technical Specifications:

Finishing The System: This pump is supplied complete with gaskets and hardware. No additional items should be necessary.

Amperage draw: Under normal use the pump will draw 6-7 amps.

Overall Height Dimension: The heavy duty pump is 4.00" long from the mounting surface to the tip of the pump.

Pump Weight: This application weighs 4.2 lbs.
