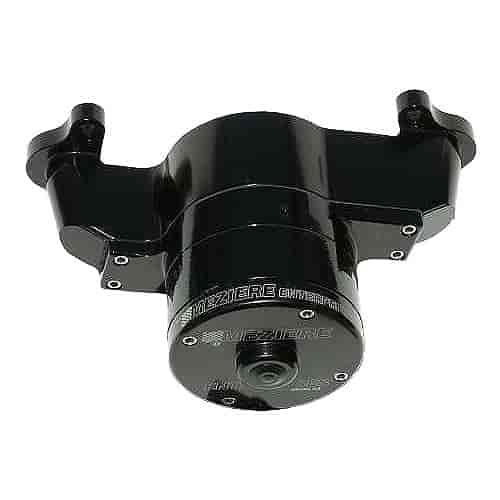

100 Series Electric Water Pump Small Block Chrysler

Name: 100 Series Electric Water Pump Small Block Chrysler
Brand: MEZIERE
SKU: 680-WP114SHD
Price: 566.85 USD
Availability: InStock

^$566⁸⁵

Ships on Sep 16, 2026

Lowest Price Guarantee

Chrysler - Small Block
(Also fits 3.9L V6 Chrysler)

100 Series Electric Water Pump

Small Block Chrysler

42 GPM

Heavy Duty Motor

Black Anodized Finish

This pump is at home making passes on the drag strip or cruising the boulevard. Driver and passenger side 1' NPT inlet ports.

Ford Engine Back Plate Requirements:

WP115 - Early 273-360ci

WP113 - 1991-up 318/360ci

Back plate will not fit late model cars with Magnum engines.

Features:

Fits small block Mopar 273-360ci & 3.9L V6

Suitable for street or drag strip use - 3000+ hour life expectancy

Show quality finish

Heavy duty motor provides 42 gallons per minute free flow rating

All stainless steel hardware included

Light weight. Complete standard small block Mopar unit weighs only 5.8 pounds!

Stainless steel large diameter main shaft with high performance ceramic seal

Pump will clear cam belt drives and most blower drives

1' NPT inlet adapters are available for #12AN, #16AN, #20AN, 1-1/4', 1-1/2' or 1-3/4' slip hose

Technical Specifications:

Belt Drives: Standard SBM design will clear Jessel belt drives and comparable belt drive systems.

Distributer Belt Drives: Spacers will be necessary to clear belt drive distributor systems.

Finishing The System: This pump is supplied complete with gaskets and hardware but without the inlet fitting. The fitting needs to be ordered according to the size of the lower radiator hose. In addition, you will most likely need a back plate p/n WP115 or p/n WP117 to seal up the factory timing cover water pump chamber.

Amperage draw: Under normal use the pump will draw 6-7 amps.

Overall Height Dimension: The heavy duty pump is 6.60' long from the mounting surface to the tip of the pump.

Pump Weight: This application weighs 5.8 lbs.

Additional Notes:The standard 42 GPM pump is suitable for normally aspirated engines up to 650HP. Supercharged, turbocharged and high compression, high horsepower applications should use the 55GPM High Flow pump only. This model does not accept heater or bypass hoses as a standard.

Keep Your Car Cool... Perfect for 12V or 16V Electrical System

Meziere's 100 Series Electric Water Pump is lightweight and flows 35+ gallons per minute. They are ideal for mild street and Sportsman drag cars. The pump housing, motor cap, and impeller are CNC-machined from 6061-T6 billet aluminum for superior corrosion resistance. The stainless steel impeller shaft runs through a 1-piece carbon-ceramic seal that isolates the epoxy-coated motor from coolant for years of reliable service. The motor has a radio frequency suppression circuit in the motor brush card to reduce ignition "RF" interference. These 100 Series pumps are available with two motor option, standard duty and heavy duty.

The HD (heavy duty) motors provide more power and RPM, increasing flow and pressure over the standard duty motors. HD motors are recommended for street cars and other continuous duty applications (where high flow model pumps are not available). Most pumps are machined with a 1" NPT port(s) to direct water into the pump using one of the inlet adapters that you choose to best suit your needs. Inlet adapters are available in slip-on rubber hose style to AN sizes, inlet fittings are sold separately and not included with pump. Most pumps and fittings are chrome, polished, or anodized. Longer inlets, extensions, and angle adapters also available.

Meziere pumps are American made with pride and quality far superior to any other performance aftermarket company. Don't be misled by the inflated flow numbers and outlandish claims of others. Meziere says what they mean and means what they say. The 2 year, unlimited mileage guarantee and full satisfaction money back guarantee should convince you that buying Meziere is buying value!
