Vehicle Info NeededMEZIEREPART NUMBER: 680-WP114RHD

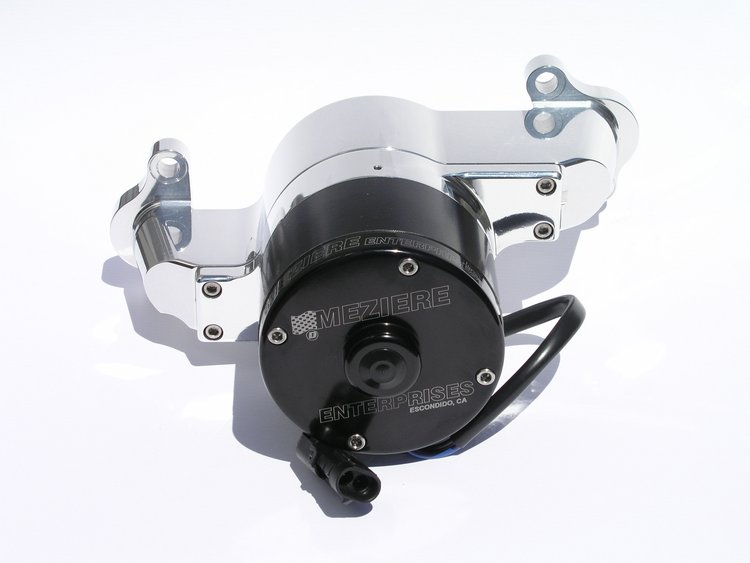

100 Series Electric Water Pump Small Block Chrysler
$56685
Ships on Oct 23, 2026
Lowest Price GuaranteeCurrently Unavailable
This product is currently not available. Please call customer service for assistance at 1-800-345-4545.
- 100 Series Electric Water Pump
- Small Block Chrysler
- 42 GPM
- Heavy Duty Motor
- Red Anodized Finish
This pump is at home making passes on the drag strip or cruising the boulevard. Driver and passenger side 1' NPT inlet ports.
Ford Engine Back Plate Requirements: - WP115 - Early 273-360ci
- WP113 - 1991-up 318/360ci
- Back plate will not fit late model cars with Magnum engines.
Features: - Fits small block Mopar 273-360ci & 3.9L V6
- Suitable for street or drag strip use - 3000+ hour life expectancy
- Show quality finish
- Heavy duty motor provides 42 gallons per minute free flow rating
- All stainless steel hardware included
- Light weight. Complete standard small block Mopar unit weighs only 5.8 pounds!
- Stainless steel large diameter main shaft with high performance ceramic seal
- Pump will clear cam belt drives and most blower drives
- 1' NPT inlet adapters are available for #12AN, #16AN, #20AN, 1-1/4', 1-1/2' or 1-3/4' slip hose
Technical Specifications: - Belt Drives: Standard SBM design will clear Jessel belt drives and comparable belt drive systems.
- Distributer Belt Drives: Spacers will be necessary to clear belt drive distributor systems.
- Finishing The System: This pump is supplied complete with gaskets and hardware but without the inlet fitting. The fitting needs to be ordered according to the size of the lower radiator hose. In addition, you will most likely need a back plate p/n WP115 or p/n WP117 to seal up the factory timing cover water pump chamber.
- Amperage draw: Under normal use the pump will draw 6-7 amps.
- Overall Height Dimension: The heavy duty pump is 6.60' long from the mounting surface to the tip of the pump.
- Pump Weight: This application weighs 5.8 lbs.
Additional Notes:The standard 42 GPM pump is suitable for normally aspirated engines up to 650HP. Supercharged, turbocharged and high compression, high horsepower applications should use the 55GPM High Flow pump only. This model does not accept heater or bypass hoses as a standard.
Part TypeWater Pump
BrandMEZIERE
Weight6.7 lb (3.039 kg)
Part CategoryPerformance Parts
Pump MaterialAluminum
Hose Adapter RequiredYes
Amp Draw8.00 amps
Hose Adapter IncludedNo
Overall Depth6.6 in (167.6 mm)
QuantitySold individually
Hose Adapter Thread Size (In.)1 NPT
Part FitmentSemi Universal
Flow Rate @ 12 Volts (Gpm)42 GPM
Pump FinishRed anodized
Vendor Part NumberWP114RHD
Package Qty1
Package TypeEA
