Vehicle Info NeededMEZIEREPART NUMBER: 680-WP106RHD

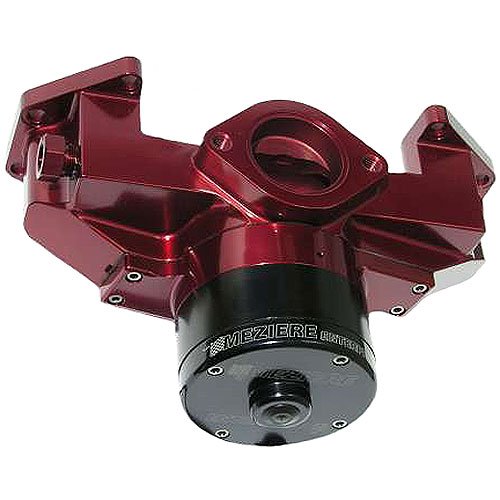

100 Series Electric Water Pump Big Block Chrysler
$82173
Ships on Sep 16, 2026
Lowest Price Guarantee- 100 Series Electric Water Pump
- Big Block Chrysler
- 42 GPM
- Heavy Duty Motor
- Red Anodized Finish
Tossing out your bulky factory water pump and switching to this Meziere pump will save space, horsepower, and remove about 10 lbs. from the front of your engine.
Features: - Driver & Passenger Side Inlet Ports
- Temperature Gauge Adapters Included
- Street or Strip Duty
- Plugs for Both Driver and Passenger Sides
- Drivers Side Adapter for Standard Mechanical Temp Sender
- Adapter for 3/8' NPT Electric Sender
- Fits big block Mopar B, RB, and Hemi
- Suitable for street or drag strip use - 3000+ hour life expectancy
- Show quality finish
- Heavy duty motor provides 42 gallons per minute free flow rating
- All stainless steel hardware included
- Light weight. Complete standard big block Mopar unit weighs only 7.2 pounds!
- Stainless steel large diameter main shaft with high performance ceramic seal
- Pump will clear cam belt drives and most blower drives
- 1' NPT inlet adapters are available for #12AN, #16AN, #20AN, 1-1/4', 1-1/2' or 1-3/4' slip hose
Technical Specifications: - Belt Drives: Standard BBM design will clear Jessel belt drives and comparable belt drive systems.
- Distributer Belt Drives: Spacers will be necessary to clear belt drive distributor systems.
- Finishing The System: This pump is supplied complete with gaskets and hardware but without the inlet fitting. The fitting needs to be ordered according to the size of the lower radiator hose.
- Amperage draw: Under normal use the pump will draw 6-7 amps.
- Overall Height Dimension: The standard pump is 7.30' long from the mounting surface to the tip of the pump.
- Pump Weight: This application weighs 7.2 lbs.
Additional Notes: The standard 42 GPM pump is suitable for normally aspirated engines up to 650HP. Supercharged, turbocharged and high compression, high horsepower applications should use the 55GPM High Flow pump only. This model does not accept heater or bypass hoses as a standard.
Part TypeWater Pump
BrandMEZIERE
Package Height4.9
Package Width8.2
Package Length13.8
Weight8.65 PG
Weight8.1 lb (3.673 kg)
Part CategoryPerformance Parts
Pump MaterialAluminum
Hose Adapter RequiredYes
Amp Draw8.00 amps
Hose Adapter IncludedNo
Overall Depth7.3 in (185.4 mm)
QuantitySold individually
Hose Adapter Thread Size (In.)1 NPT
Part FitmentSemi Universal
Flow Rate @ 12 Volts (Gpm)42 GPM
Pump FinishRed anodized
Vendor Part NumberWP106RHD
Package Qty1
Package TypeEA
