Vehicle Info NeededMELLINGPART NUMBER: 689-CSL1174

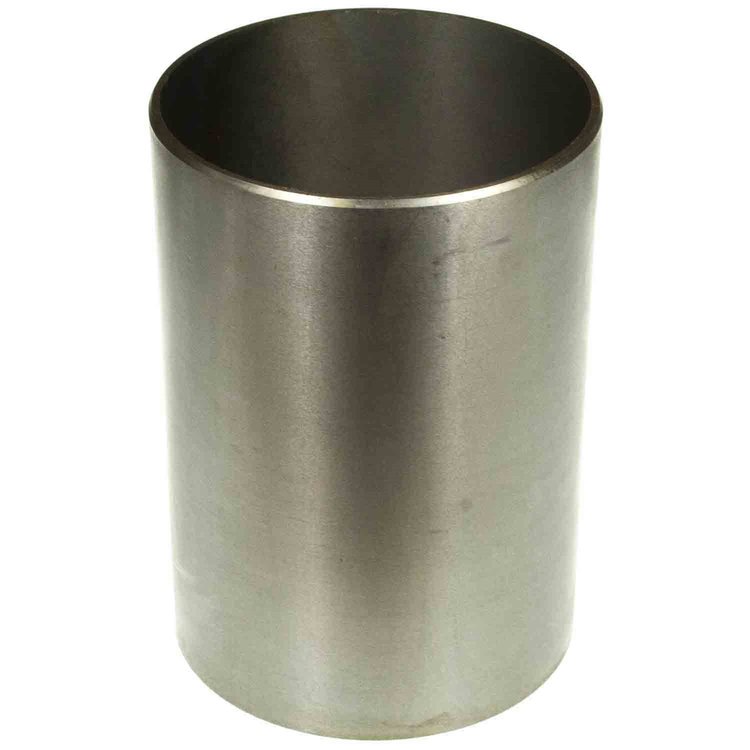

CSL1174 Cylinder Sleeve Bore: 4.1100"
$1592$21.99You Save$6.07
2 left in stock
Ships Today
Lowest Price Guarantee3/32" Wall Thickness
Cylinder Sleeve Bore: 4.1100" Length: 6-7/8" Wall Thickness: 3/32"
MELLING AUTOMOTIVE PROD CSL1174 Features:
Melling replacement cylinder liners provide an efficient and economical way to replace the cylinder sleeves needed for a quality engine rebuild. Melling cylinder liners are manufactured using the highest design capabilities, quality materials and workmanship. Melling cylinder liners are manufactured in both stock replacement and high performance brands and are available in universal flanged, finished, heavy duty and custom sized.Melling Cylinder Sleeves are made from centrifugal cast iron to tolerances as small as one half of one-thousandth of an inch using modern CNC equipment. The centerless OD grinding process results with a part that is exact to size specifications and is perfectly round. The material used machines easily with strength and durability similar to that of ductile iron.
Note: Bore dimension = Inside Diameter (I.D.)
Part TypeCylinder Sleeve
Product LineMelling Cylinder Sleeves
BrandMELLING
Package Height5.25
Package Width5.3
Package Length6.875 in.
Weight3.86 PG
Part CategoryReplacement Parts
Thickness0.094 in.
Universal Or Specific FitUniversal
Liner Outside Diameter4.3 in.
Liner Inside Diameter4.08 in.
FlangedNo
Cylinder Bore Diameter4.11 in.
MaterialCast Iron
Part FitmentSemi Universal
Grade TypeStandard Replacement
Vendor Part NumberCSL1174
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
