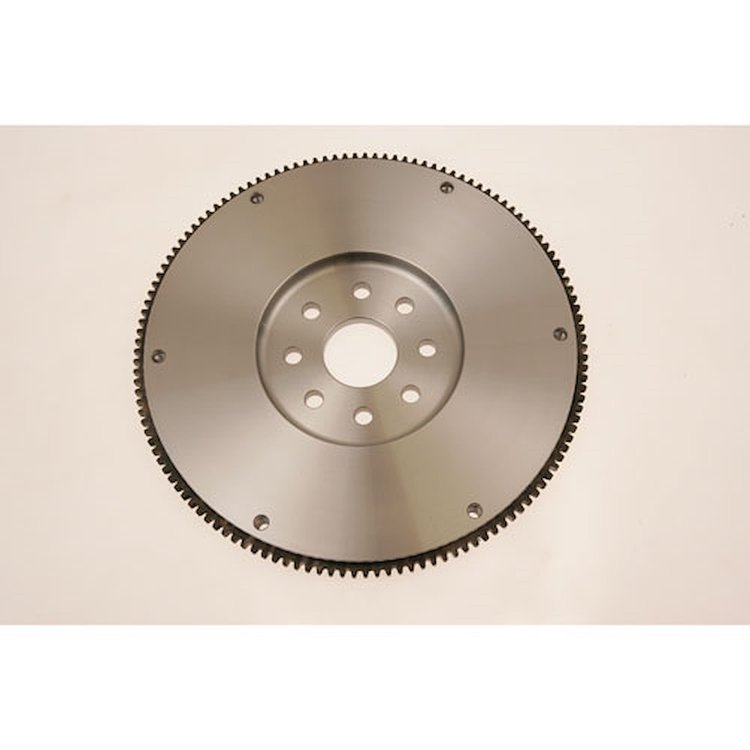

Steel Flywheel, 168-Tooth, 6-Bolt, SFI 1.1 Approved, for 1997-2013 Chevy LS1/LS2/LS3/LS6/LS7

Name: Steel Flywheel, 168-Tooth, 6-Bolt, SFI 1.1 Approved, for 1997-2013 Chevy LS1/LS2/LS3/LS6/LS7
Brand: MCLEOD
SKU: 673-460530
Price: 349.00 USD
Availability: InStock

^$349⁰⁰

2 left in stock

Ships Today

Lowest Price Guarantee

Steel Flywheel

1997-2013 LS1/LS2/LS3/LS6/LS7 Engines

168-Tooth Ring Gear, 6-Bolt Crank

30 lbs. Billet Steel Construction

SFI 1.1 Approved

This McLeod billet steel flywheel is machined for the LS-series swap and rebuild market, covering engines used across Chevy, GMC, and Pontiac platforms from 1997 through 2013. Its 6-bolt crank pattern and hardened steel ring gear are sized for repeated clutch launches.

McLeod 460530 Steel Flywheel Features:

Fits 1997-2013 Chevy, GMC, and Pontiac vehicles equipped with the LS1, LS2, LS3, LS6, or LS7 engine
6-bolt crankshaft flywheel pattern
168-tooth ring gear
1-piece rear main seal design
Machined from billet steel and weighs 30 lbs.
Compatible with Borg and Beck or diaphragm-style pressure plates
SFI 1.1 approved for competition use

The McLeod steel flywheel is perfect for street applications where easy stop light acceleration is desired and for off road or rock crawling. Steel flywheels come in various weights and and dimensions. For race applications, a heavier steel unit is ideal for helping launch a heavy car with a smaller engine with less torque and horsepower.

Part TypeFlywheel

Product LineMcLeod Steel Flywheels

BrandMCLEOD

Package Height2.0

Package Width14.7

Package Length15.6

Weight26.25 PG

Weight30.000 lbs.

Part CategoryPerformance Parts

Ring Gear Tooth Quantity168-tooth

Ring Gear168 tooth

Marine UseNo

Clutch Patterns11" & 12" B&B & Diaphragm Shouldered Bolt

Pressure Plate StyleBorg & Beck/Diaphragm

Replaceable Friction SurfaceNo

QuantitySold individually.

MakeChevy

Disc Diameter (In.)11.000/12.000 in.

Flywheel MaterialBillet steel

Sfi 1.1 ApprovedYes

Rear Main Seal Style1-piece

Disc Diameter12 in (304.8 mm)

Part FitmentDirect Fit

Crankshaft To Flywheel Bolt Quantity6-bolt

Safety RatingSFI 1.1

NotesBecause of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft fit may have variations from slip-fit to slight interference. Tight fit at the crankshaft can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.

Vendor Part Number460530

Package Qty1

Package TypeEA
