Vehicle Info NeededMCLEODPART NUMBER: 673-14-302

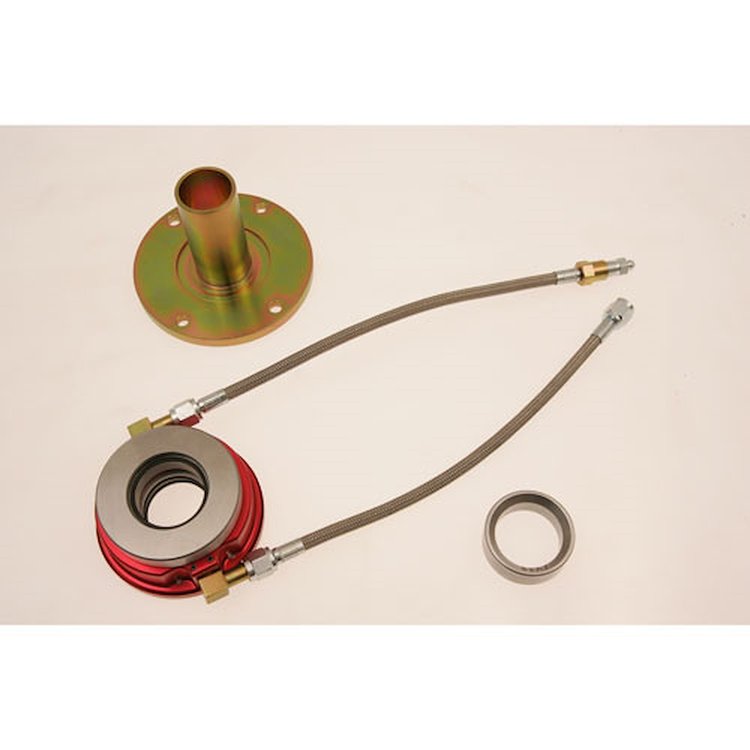

Hydraulic Throwout Bearing, -4 AN Fitting, for GM/Dodge T-56, T-56 Magnum & TR-6060 Transmission
$48900
4 left in stock
Ships Today
Lowest Price GuaranteeHydraulic Throwout Bearings
Hydraulic Throwout BearingGM/Dodge T-56, T-56 Magnum & TR-6060 -4 AN Male Fitting Connection 1.830 in. Height, 1.430 in. I.D. 0.700 in. Adjustment Screw Height
T-56 six-speed swaps demand a throwout bearing built to exact factory tolerances, and this McLeod hydraulic unit delivers a bolt-in fit for the most common T-56 and TR-6060 applications.
McLeod 14-302 Hydraulic Throwout Bearing Features:
- Fits 1998-up LS-X production T-56, 1992-up Dodge Viper production T-56, 2010-up GM TR-6060, and aftermarket Tremec T-56 Magnum transmissions.
- Does not fit the 1993-1997 LT1 Camaro/Firebird T-56 transmission.
- -4 AN male fitting connection with a male wire-clip style port.
- 1.830 in. overall height and 1.430 in. inner diameter.
- 0.700 in. adjustment screw height.
- 3.000 in. bearing face O.D. and 1.590 in. bearing face I.D.
Part TypeClutch Release Bearing and Slave Cylinder Assembly
BrandMCLEOD
Package Height1.830 in.
Package Width5.6
Package Length13.3
Weight2.85 PG
Part CategoryPerformance Parts
Bearing Retainer Diameter1.125 in (28.575 mm)
Inner Diameter1.430 in.
Adjustment Screw Height (In.)0.700 in.
Throwout Bearing StyleHydraulic
QuantitySold individually.
Part FitmentDirect Fit
Throwout Bearing TypeSelf-aligning
Bearing Face I.D. (In.)1.590 in.
NotesThis is to be used with 1998-Up LS-X production T-56. 1992-Up Dodge Viper Production T-56. 2010-Up GM TR-6060. Tremec T-56 Magnum Aftermarket Transmissions. This Will NOT fit 1993-97 LT-1 Camaro/Firebird T-56 transmission.
Bearing Face O.D. (In.)3.000 in.
Vendor Part Number14-302
Package Qty1
Package TypeEA
