Vehicle Info NeededMARADYNE FANSPART NUMBER: 303-M166K

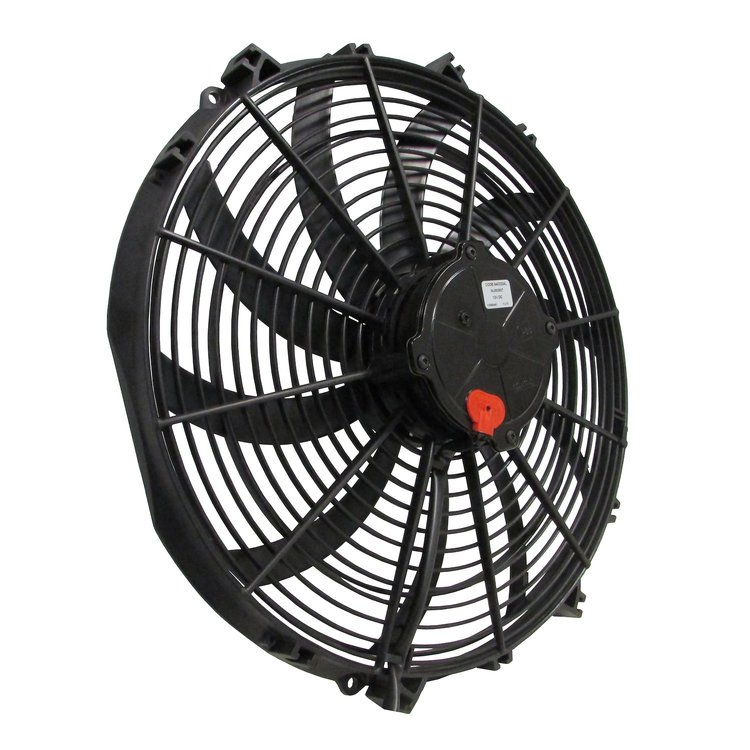

Champion-Series Low-Profile Electric Cooling Fan, Diameter: 16 in., Type: Single
$18018
Ships on Sep 08, 2026
Lowest Price Guarantee16 in. Diameter
Champion-Series Low-Profile Electric Cooling Fan16 in. Diameter S-Blade Reversible 160 W 1810 cfm 12.3 Amp Draw Black
Maradyne Fans M166K Champion-Series Low-Profile Electric Cooling Fan Features:
- Lowest profile high-performance reversible fan on the market
- Sealed motor tested in accordance with DIN EN 60529, dust and water-resistant to IP68
- Quiet, reversible S-blade design – works as a puller or pusher fan
- All glass-filled nylon construction includes (4) 90-degree mounting feet and nylon tie kit
- Includes locking mating pigtail MFA113 connector and rubber spacers MFA112 for proper spacing off of heat exchanger
Industry-Leading Cooling Fan Performance
Maradyne Champion-Series Low-Profile Fans are some of the highest-performing and lowest-profile electric cooling fans on the market today. These fans are dynamically balanced with an S-blade design that delivers smooth, quiet operation and is reversible for puller or pusher style. The motors are sealed and are IP68 dust and water-resistant for use in most environments. Each includes a locking mating pigtail connector and rubber isolator spacers. Available in 8 through 16-inch diameters.
Part TypeElectric Fan
Product LineMaradyne Fans Champion-Series Low-Profile Electric Cooling Fans
BrandMARADYNE FANS
Package Height3.5
Package Width18.8
Package Length19.0
Weight7.0 PG
Part CategoryPerformance Parts
Blade MaterialNylon
Fan QuantitySingle
Shroud MaterialNylon
QuantitySold individually
Mounting Hardware IncludedYes
Electrical Or MechanicalElectrical
Blade TypeS-Blade
Blade ColorBlack
TypePuller or Pusher
Amp Draw12.30 amps
Part FitmentUniversal
Maximum Fan Cfm1,810 cfm
Shroud ColorBlack
Diameter16 in (406.4 mm)
Vendor Part NumberM166K
Package Qty1
Package TypeEA
