Vehicle Info NeededMAHLE PERFORMANCE GASKETSPART NUMBER: 696-55063

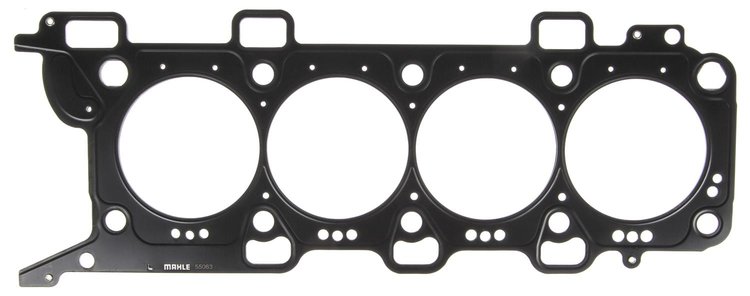

Cylinder Head Gasket for Ford Coyote 5.0L
$14599
Ships on Sep 04, 2026
Lowest Price GuaranteeFord Coyote
Cylinder Head Gasket2011-2015 Ford Coyote 5.0L Left Side Bore: 3.700" Volume: 9.2 Thickness: .040" Material: Multi-Layered Steel (MLS)
Mahle Performance Gaskets 55063 Features:
MAHLE® gaskets provide world class sealing products trusted by OEMs & Technicians around the globe.MAHLE Performance cylinder head gaskets are designed with the latest technology to seal and protect engines that push the limits of conventional gaskets. Cylinder head gaskets are available in your choice of multi-layered steel, solid core composite, and graphite materials.
Multi-Layered Steel (MLS):
- Comprised of multiple embossed layers of FKM (fluoroelastomer) coated and uncoated 301 stainless steel
- Able to handle any application from naturally aspirated to boost or nitrous
- Center or shim layer is an uncoated stainless steel layer which can be varied to accommodate multiple thickness requirements
- No sealants or re-torque required
Show More
Solid Core Composite:
- Made of PTFE coated non-asbestos facing material
- Chemically bonded to a solid steel core
- Solid steel core provides superior radial strength
- Pre-flattened wire ring withstands higher cylinder pressures
Graphite:
- Stays cool at temperature up to 1800 degrees Farenhieght
- Designed to seal minor surface irregularities
- No re-torque required
Part TypeHead Gasket
Product LineMahle Performance Cylinder Head Gaskets
BrandMAHLE PERFORMANCE GASKETS
Part CategoryPerformance Parts
Vendor Part Number55063
Package Qty1
Package TypeEA
