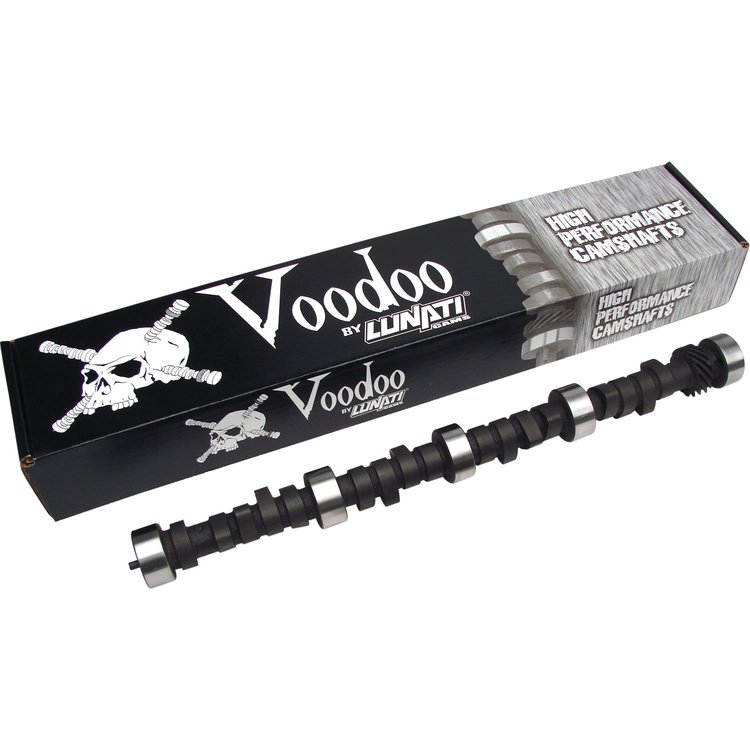

Voodoo Hydraulic Flat Tappet Camshaft Chevy Small Block 262-400 Lift: .525" /.546"
InfoVehicle Info Needed
LUNATIPART NUMBER: 638-10120705

Voodoo Hydraulic Flat Tappet Camshaft Chevy Small Block 262-400 Lift: .525" /.546"

$22795
ShippingShips on Sep 15, 2026
Lowest PriceLowest Price Guarantee

Chevy Small Block 262-400
    Voodoo Hydraulic Flat Tappet Camshaft
    Chevy Small Block 262-400
  • Lift: .525''/.546''
  • Duration: 284 Deg /292 Deg
  • LSA: 110 Deg
  • RPM Range: 2500-6600

    This is possibly the most powerful hydraulic cam ever designed! Designed for VERY HOT street / bracket race applications, this cam requires a minimum of 10.5:1 compression, 4.11 gearing, and 3500 RPM stall converter. Works with up to 250HP of nitrous, and pulls VERY HARD past 6500 RPM when coupled with the correct parts. The baddest of the witches brew, this cam is destined to rule the street. If you're scared...buy a different cam!

    Unless you're a witch doctor, choosing the correct camshaft can be a nightmare. Voodoo by Lunati is the answer! The gurus at Lunati have taken camshaft design to another dimension with profiles never before used on flat tappet cams. Only the best profiles are featured in this line, making your cam selection simple.

    Show More

    Lunati Voodoo incorporates thirty years of cam design experience with more recent developments in profiles, geometry, and tolerances to deliver the most aggressive ramp profiles ever utilized in hydraulic flat tappet cams. Asymmetrical lobe designs with slower closing sides set the valve down easy to reduce noise and premature failure of the valvetrain. These are the best power-producing hydraulic flat tappet cams available today!

    No other hydraulic flat tappet cam delivers more "area under the curve" than Lunati's Voodoo Series. This means more throttle response, quicker acceleration, more vacuum, better efficiency, and maximum horsepower and torque! Voodoo Cams cover more applications than any other series currently offered: normally aspirated, fuel injected, RV/towing, marine, 4x4, off-road, street rod, muscle car, touring, and fuel economy.

    Voodoo designs are so advanced that Lunati camshafts could now be considered years ahead of the competition! Don't settle for average camshaft performance or rely on your own abilities to choose a cam. Take your ride to the next dimension with Voodoo.

    Camshaft & Lifter Kits include Camshaft, Lifters, Assembly Lube, Decals, and Instructions.

    Complete Kits include Camshaft, Lifters, Timing Chain & Gears, Valve Springs, Retainers, Locks, Assembly Lube, Decals, and Instructions.

    JEGS Easy Kits are designed by JEGS high performance racing professionals to help you get all the performance parts you need for your race car, hot rod or truck.

Part TypeCamshaft
Product LineLunati Voodoo Hydraulic Flat Tappet Camshafts
BrandLUNATI
Package Height3.0
Package Width3.0
Package Length25.0
Weight8.72 PG
Part CategoryPerformance Parts
Valve Lift With Factory Rocker Arm Ratio0.525 int./0.546 exh.
Cam StyleHydraulic flat tappet
QuantitySold individually
Intake Valve Lift With Factory Rocker Arm Ratio (I0.525
Advertised Intake Duration284
Basic Operating Rpm Range2,500-6,500
Intake Duration At 050 Inch Lift241
Exhaust Duration At 050 Inch Lift249
Computer-Controlled CompatibleNo
Lobe Separation (Deg)110
Advertised Exhaust Duration292
Advertised Duration284 int./292 exh.
Part FitmentSemi Universal
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.546
Duration At 050 Inch Lift241 int./249 exh.
Valve Springs RequiredYes
Vendor Part Number10120705LUN
Package Qty1
Package TypeEA
