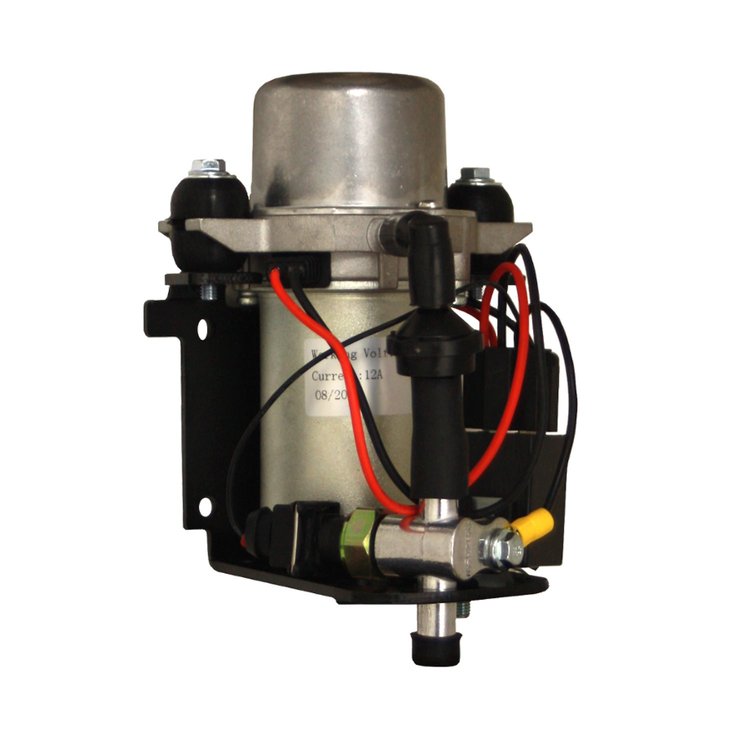

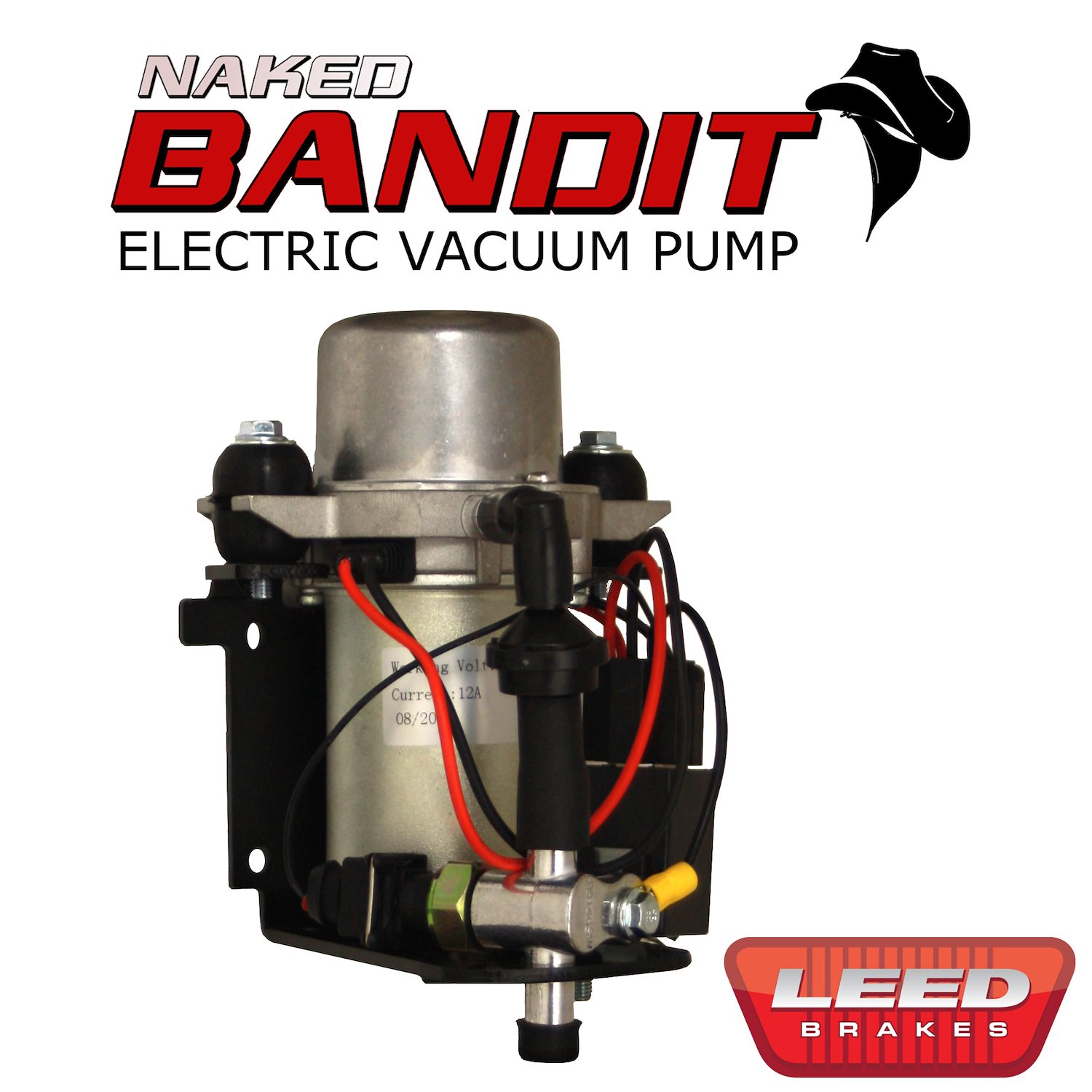

The LEED Brakes VP002 Bandit series vacuum pump provides an efficient, quiet & vibration free solution for your brake vacuum assist needs. The vacuum pump used in our kit is a Rotary Vane style pump and is 60% quieter than the noisy Piston Style pumps on the market today, making your Sunday drive more enjoyable. The Bandit series vacuum pump is also 30% more efficient, giving you the required vacuum in less time and will extend its life.

Vacuum Pump Includes:

• (1) Wiring Harness: 16 Gauge 2-wire x 6 ft. Long with Fuse Holder and 15A Fuse
• (1) Ring Terminal: 16 Gauge with 1/4 Eyelet
• (4) Self-Tapping Screws: #10 x 1 in. UHL and 5/16 Hex Head
• (4) Machine Screws: 1/4 in.-20 x 1 in. UHL and 3/16 in. Allen Head
• (4) Lock Nuts: 1/4 in.-20 with 7/16 in. Hex Head
• (4) Rubber Isolators: 3/4 in. O.D. x 1/4 in. I.D. x .080 in. Thick
• (1) Vacuum Hose: 11/16 in. O.D. x 3/8 in. I.D. x 6 ft. Long
• (1) Vacuum Hose Spring Clamp: Fits 11/16 in. O.D. Hose
• (1) Universal Steel Base-Plate Mounting Bracket, Attached to the Pump

Pump Dimensions:

• 5 in. Depth x 4 3/4 in. Width x 7 1/4 in. H
