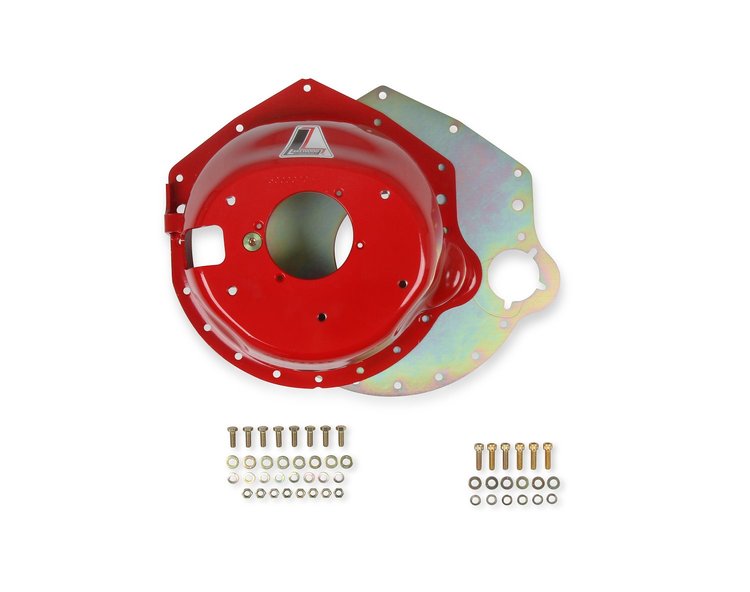

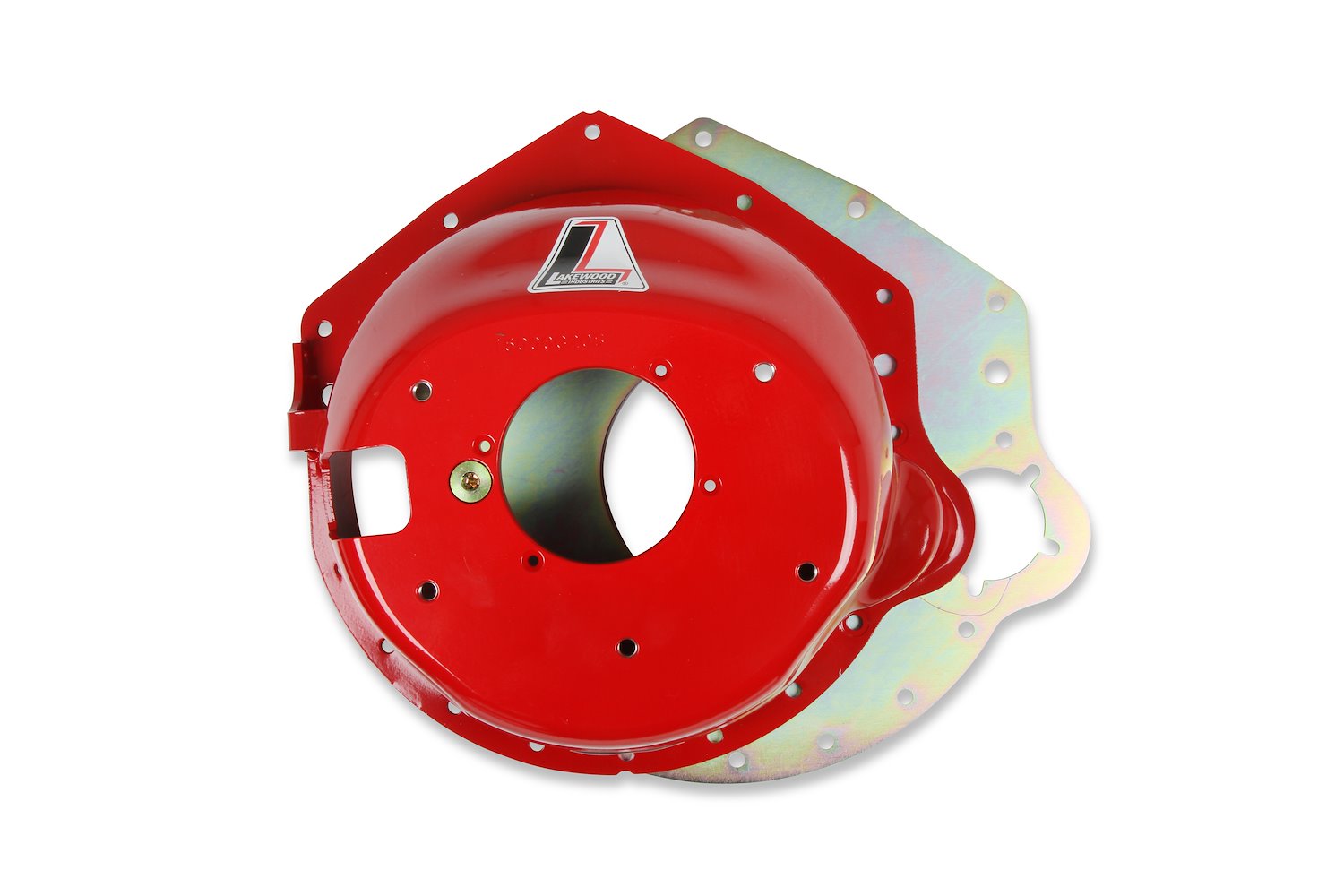

15000LKW - Lakewood Bellhousing for Chevrolet
InfoVehicle Info Needed
LAKEWOODPART NUMBER: 620-15000LKW

15000LKW - Lakewood Bellhousing for Chevrolet

$92195
2 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Bellhousing
  • 1958-1987 GM full and midsized cars
  • 1967-1981 F-body vehicles
  • 1968-1979 Nova
  • Designed For Mechanical Fork Linkage
  • Bellhousing Depth: 6.45 in
  • Clutch Fork Opening: 2.125 In X 3.3 In

    The Lakewood 15000LKW bellhousing connects Chevy small and big block engines to transmissions utilizing the standard GM pattern such as the Muncie, Saginaw, Borg Warner T10 and Tremec TKO transmissions. This bellhousing is hydro formed to fit 1958-1987 GM full and midsized cars, 1967-1981 F-body vehicles and 1968-1979 Nova. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. Comes complete with engine block plate and Grade 8 mounting hardware.

    • Transmission Bore Diameter: 4.684 In
    • Hydro formed Construction
    • Includes Grade 8 Hardware
    • S.F.I. 6.1 Certification
    • Made In The USA

    • Minimize the Destructive Effects of a Clutch/Flywheel Explosion
    Manufactured from premium 1/4" steel, Lakewood Bellhousings utilize hydroforming. This hydraulic forming process minimizes the thinning of the bellhousing's material while maintaining proper thickness in critical areas. Units are stress relieved after forming for even greater strength and then finished with a safety red enamel.

    Show More

    Tested to meet or exceed SFI Specification 6.1W when used with an approved block plate, Lakewood Steel Bellhousings are designed to contain a clutch or flywheel explosion with possible deformation or elongation of the housing. All bellhousings include the block plate and an SFI Spec 6.1W serial number.

    Features

    • For passenger vehicles as noted
    • Hydroformed steel yields a uniform 1/4" thickness
    • Precision drilling guarantees proper bolt hole spacing
    • Blanchard ground mounting surfaces provide exact engine-transmission alignment
    • MIG welded thread inserts for transmission bolt pattern and clutch adjustment pivot ball
    • Block plate included (units predrilled for full-containment block plates)
    • SFI specification accepted by most major race sanctioning bodies
    • Heavy-duty clutch linkage brackets where required

      JEGS Easy Kits are designed by JEGS professionals so you get all the parts you need.

      Click Here for Lakewood Bellhousing Application Guide

    Part TypeBellhousing
    Product LineLakewood Blowproof Bellhousings
    BrandLAKEWOOD
    Package Height8.0
    Package Width19.0
    Package Length19.0
    Weight41.315 PG
    Part CategoryPerformance Parts
    Bellhousing ManufacturerLakewood
    Bellhousing MaterialSteel
    Part FitmentSemi Universal
    Attachment MethodBolt On
    Bellhousing FinishRed
    Vendor Part Number15000LKW
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
